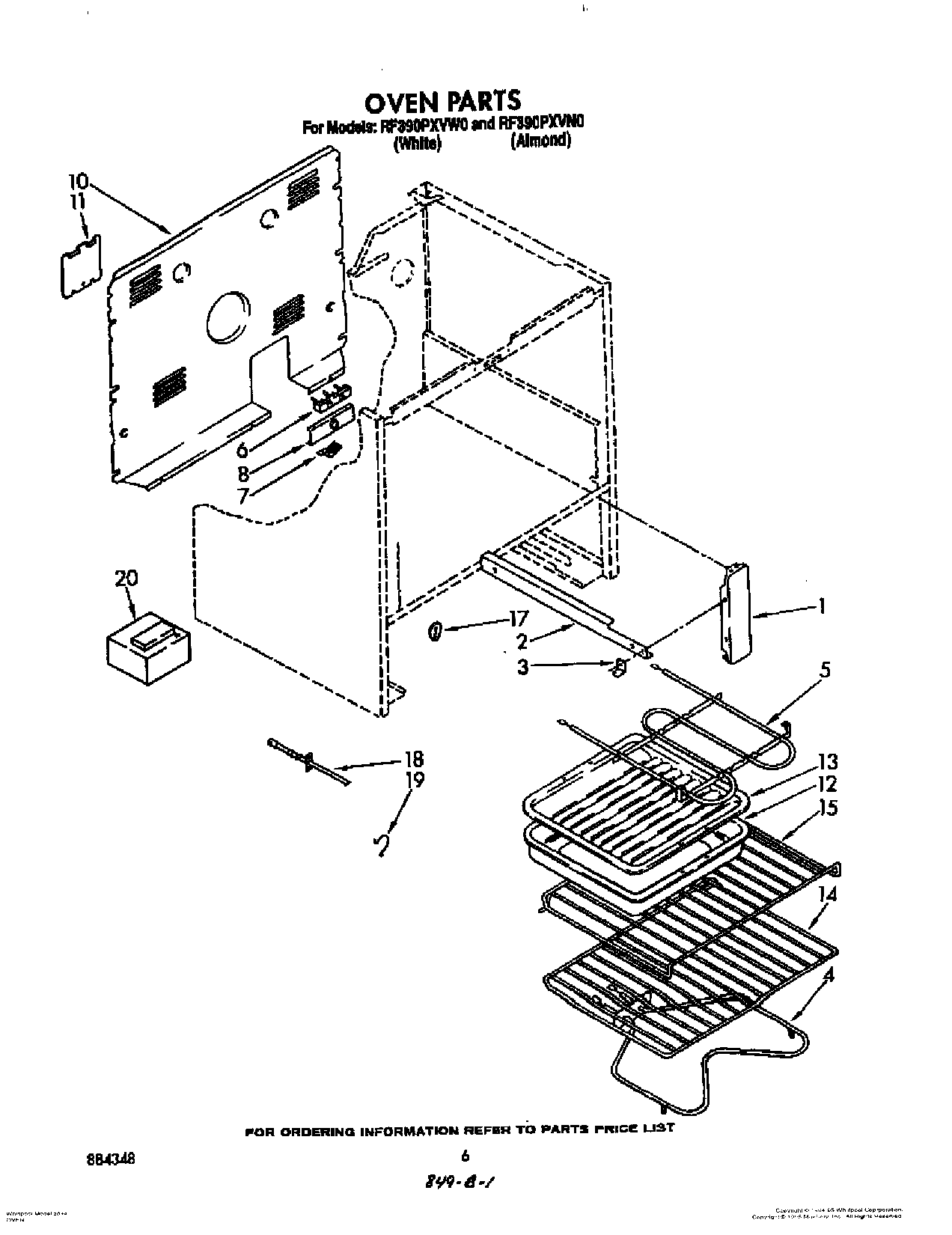

RF390PXVN0 04 – OVEN, OPTIONAL

RF390PXVN0 04 – OVEN, OPTIONAL

Written by

in

RF390PXVN0 04 – OVEN, OPTIONAL

Products

Position	Product
	Screw, 10-32 x 5/8 (4)
	511873 Whirlpool Refrigerator Paint
1	Bracket, Mounting (2)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	Screw, 10A x 1/2 (2) (Black)
17	WPL 311982
18	SCREW
18	Sensor, Heat
19	16515 Whirlpool Clip
20	WPL 3149635
20	Leveler (Thinner) (2oz.)
20	72113 Whirlpool Touch-Up Paint
20	Golden Harvest
20	Golden Harvest (Uncut)
20	Enamel, New Avocado (1 Qt. Uncut)
20	Enamel, Coffee (1 Qt. Uncut)
20	1
20	Toast
20	8212471 Whirlpool Oven Paint
20	Grease
20	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
20	Block, Balance
20	350956 Whirlpool Spray Assembly
20	72017 Whirlpool Appliance Touch-Up Paint White
20	799344 Whirlpool Refrigerator Paint
20	WP72107 Whirlpool Touchup
20	Almond (Uncut)
20	350930 Whirlpool White Spray Paint
20	340184 Whirlpool Screw
20	Wire (14 Ga. 200 c Brown)
20	18 Ga. 80~c Rating (Red)
20	WPL 72112
20	350942 Whirlpool Spray Paint
20	Paint, Spray 13 Oz. (Avocado)
20	paint, spray 13 oz. (coffee)
20	Paint, Touch-Up 1/2 Oz. (Coffee)
20	WPL 799832
20	285006 Whirlpool Spray
20	Wire, 25“ Roll (White 14 GA.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Platinum (Uncut)
20	Enamal, Toast (1 Qt. Uncut)
20	Wire (12 Ga. 150 c Black)
20	Wire (14 Ga. 150 c Yellow)
20	72109 Whirlpool Dacor Avocado Touch-Up Paint
20	Wire (14 Ga. 150 c Orange)
20	Paint, Spray (13 Oz.) (Platinum)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	242831 Whirlpool Oven Wire
20	Wire, 25` Roll (Black 14 Ga.)
