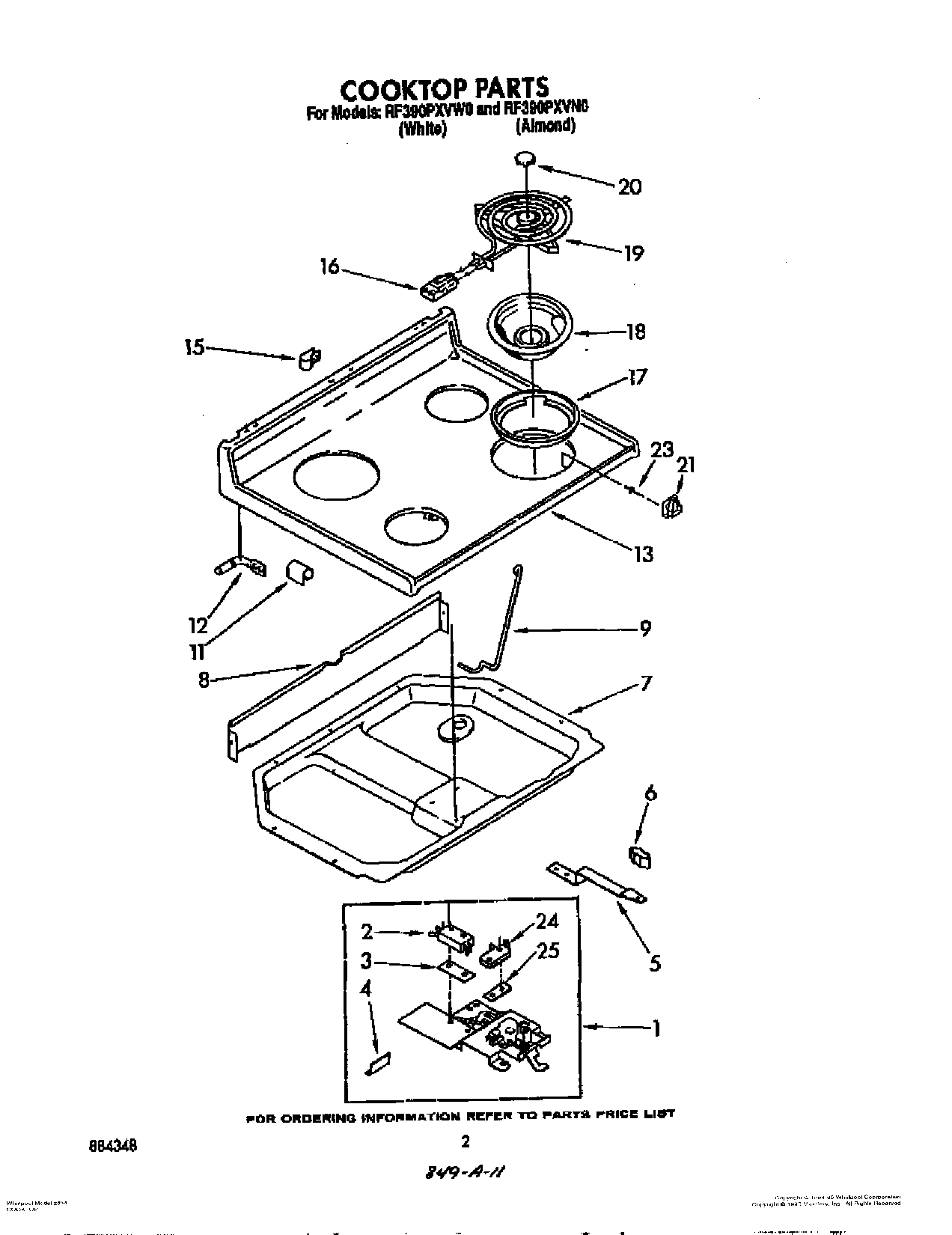

RF390PXVW0 02 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Guide, Use & Care
	WPL LIT3149507
	WP660533 Whirlpool Oven 8" Surface Element
	Instructions, Installation
	Tech Sheet
1	Latch Assembly (Pyro)
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Screw
5	Handle, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
7	WP3390631 Whirlpool Screw
7	Box, Burner
8	Shield, Wiring
9	Rod, Cooktop
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (Almond)
13	Cooktop (White)
15	SCREW
15	WP308605 Whirlpool Refrigerator Clamp
16	WP313808 Whirlpool Screw
16	WP4332752 Whirlpool Clip
17	W10858781 Whirlpool Trim Ring
17	W10854470 Whirlpool Trim Ring
18	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
23	814103 Whirlpool Clip
24	Switch, Lock
25	WPL 3147864
