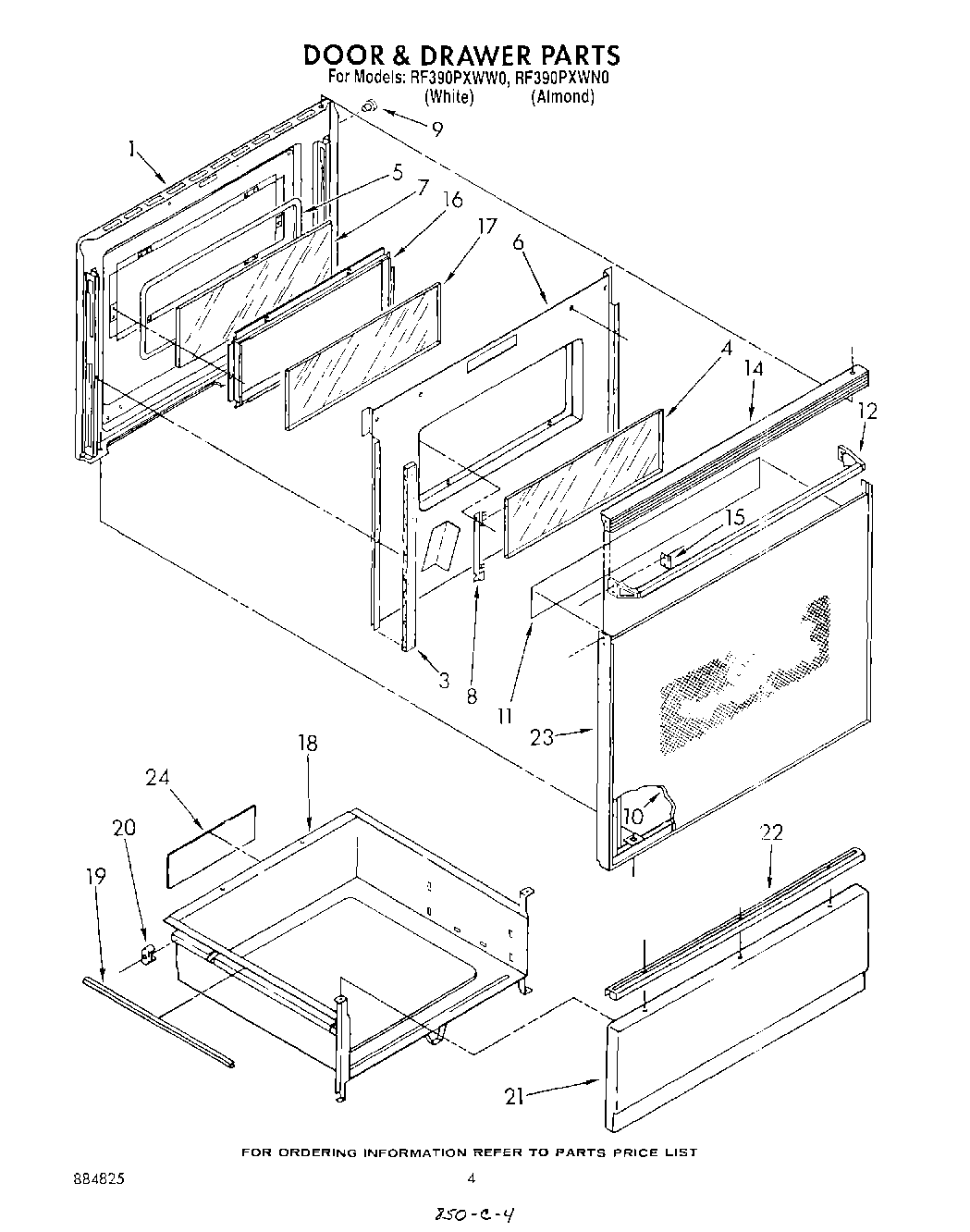

RF390PXWN0 04 – DOOR AND DRAWERadmin2025-04-26T12:49:08+00:00RF390PXWN0 04 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| Repair Parts List |
| WPL LIT3149507 |
| Tech Sheet |
| Guide, Use & Care |
| WPL LIT3148614 |
| 1 | Screw |
| 1 | Liner, Door |
| 3 | Seal, Flange (2) |
| 4 | Glass, Reflective |
| 5 | Seal, Door |
| 6 | Retainer, |
| 7 | WP3169203 Whirlpool Door Glass |
| 8 | Retainer, Glass (2) |
| 9 | Bumper (4) |
| 10 | Glass, Panel (Black Model) |
| 11 | Foil, Door |
| 12 | WP355515 Whirlpool Screw |
| 12 | Handle, Oven Door |
| 14 | Top, Door (Black Model) |
| 15 | Clip, Mtg (2) |
| 16 | Frame, Inner |
| 16 | Screw |
| 18 | Drawer, Utility |
| 19 | Protector, Drawer (2) |
| 20 | Screw, 10A x 1/2 (2) (Black) |
| 20 | Glide, Rear (2) |
| 21 | Panel Drawer (White) |
| 21 | Panel, Drawer (Almond) |
| 21 | WP488787 Whirlpool Refrigerator Screw |
| 22 | Handle, Drawer |
| 22 | WP488627 Whirlpool Refrigerator Screw |
| 23 | Frame, Door |
| 24 | Pad, Sound |
