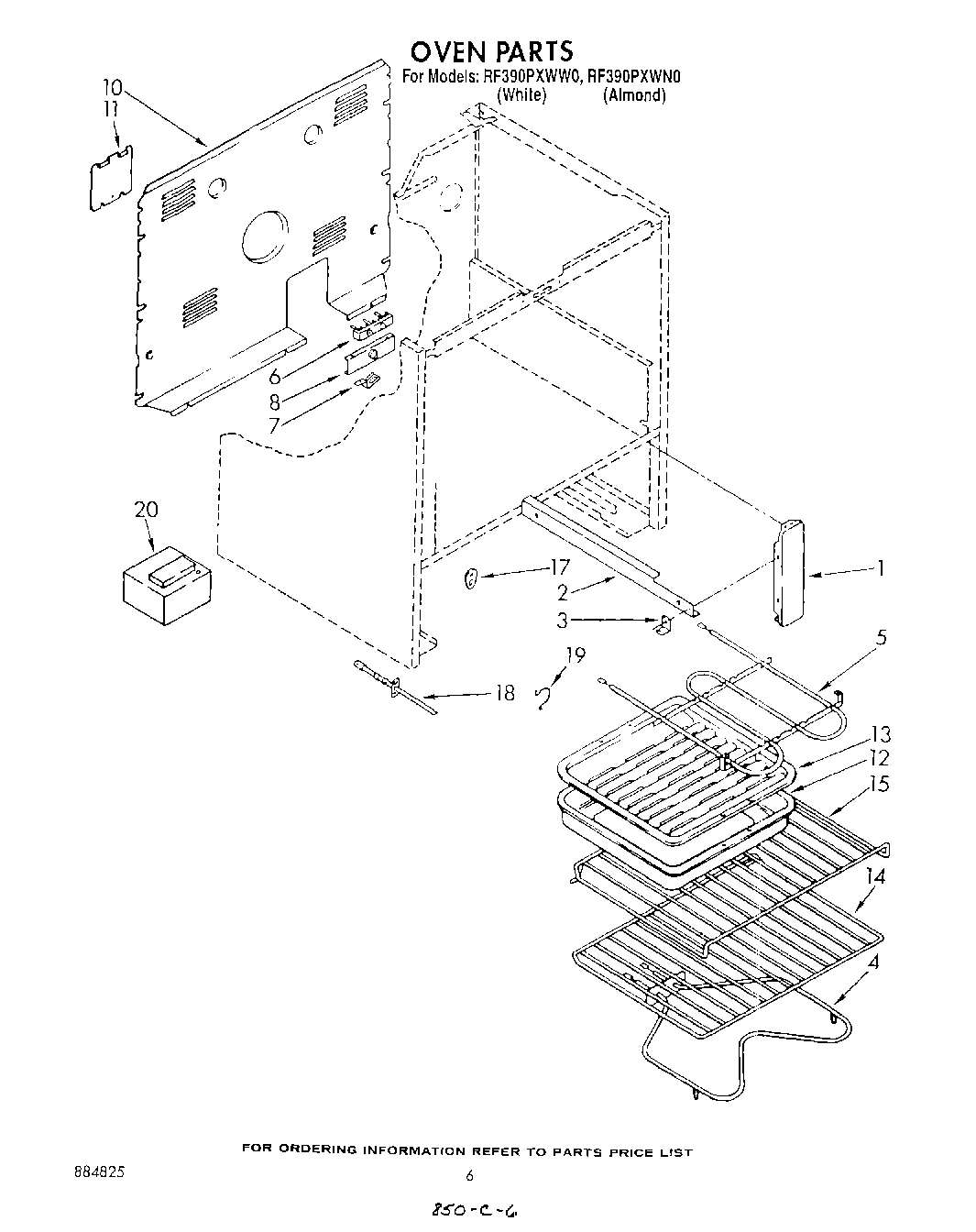

RF390PXWW0 05 – OVEN

Products

PositionProduct
WPL 312318
1Bracket, Mounting (2)
2Rail L.H. (Includes Illus. 3)
2Rail R.H. (Includes Illus. 3)
3Glide, Front (2)
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6Screw, (2) 10-16 x 1
6WP8203546 Whirlpool Terminal Block
6WP112432 Whirlpool Nut Assembly
7WPL 308498
7Clip, Ground Wire
8Bracket, Service
10Cover, Rear
11Cover, Service
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
15WPL 308172
17Screw, 10A x 1/2 (2) (Black)
17WPL 311982
18SCREW
18Sensor, Heat
1916515 Whirlpool Clip
20340184 Whirlpool Screw
20Block, Balance
