RF390PXWW2 03 – CONTROL PANEL

RF390PXWW2 03 – CONTROL PANEL

Written by

in

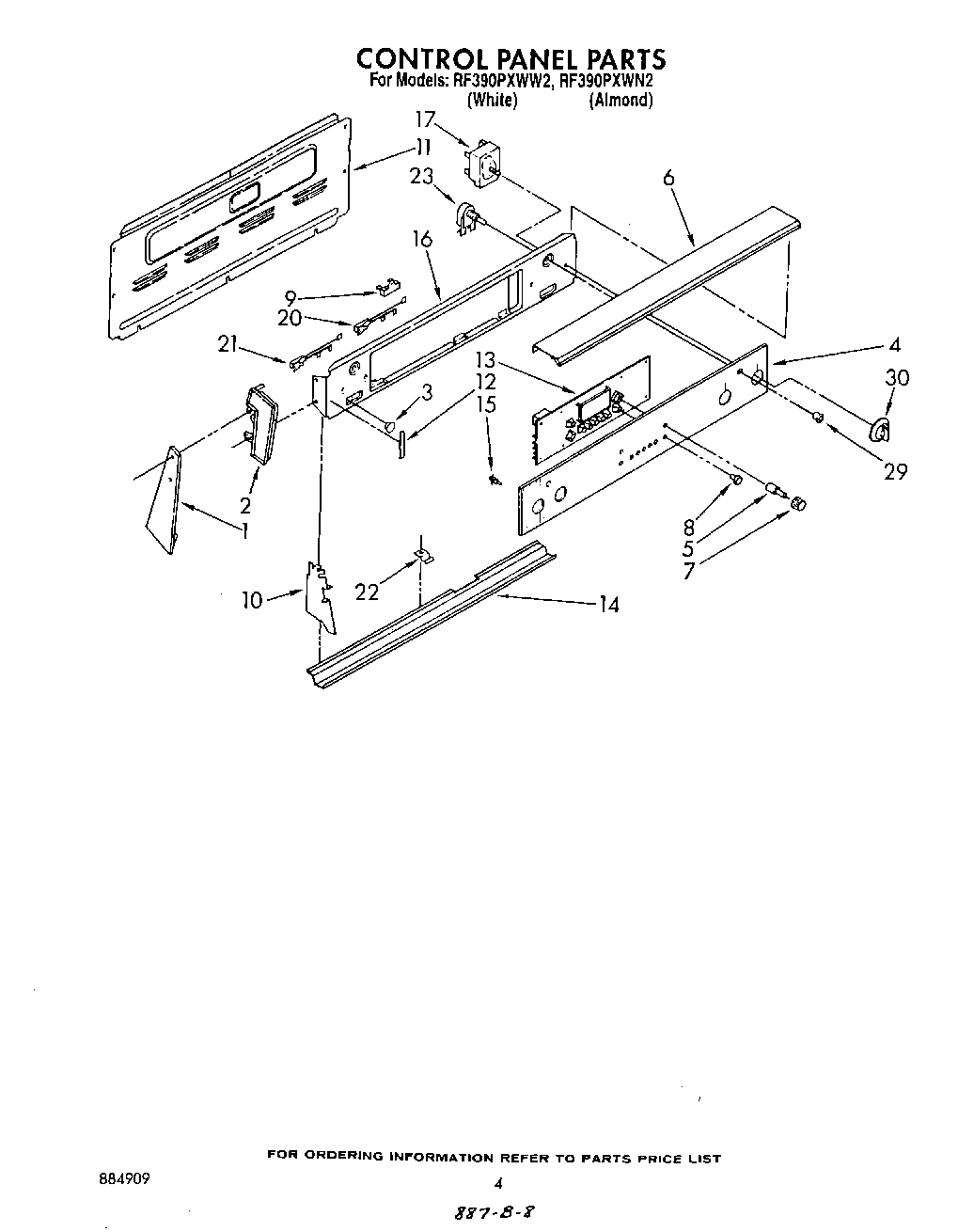

RF390PXWW2 03 – CONTROL PANEL

Products

PositionProduct
1End Trim L.H.
1Washer
1Washer
2End Cap L.H.
2End Cap R.H.
3Lens (4)
4Glass, Panel
5Shaft, Bit Generator
6Top Trim, Black
7Knob, Bit Generator (Black)
8WPL 313958
9Screw
9WP3196548 Whirlpool Thermal Fuse
10Shield, Glass (2)
11Harness-Conduit Asm.
11SCREW
12Seal, Foam (4)
13Control, Timer
14Bottom Trim
14Screw,
15WPL 313087
16Bracket, Control Panel
17W10900107 Whirlpool Oven Surface Element Switch
17WP486579 Whirlpool Air Conditioner Screw
20Light, Indicator (Locked)
21Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
22WP965173 Whirlpool Dishwasher Screw
22Support, Wedge
23nut, 3/8 x 27
23Switch, Oven Light
23Lockwasher
29Bezel Switch (1)
30WP3149983 Whirlpool Knob
