RF391PXXW0 02 – COOKTOP

RF391PXXW0 02 – COOKTOP

Written by

in

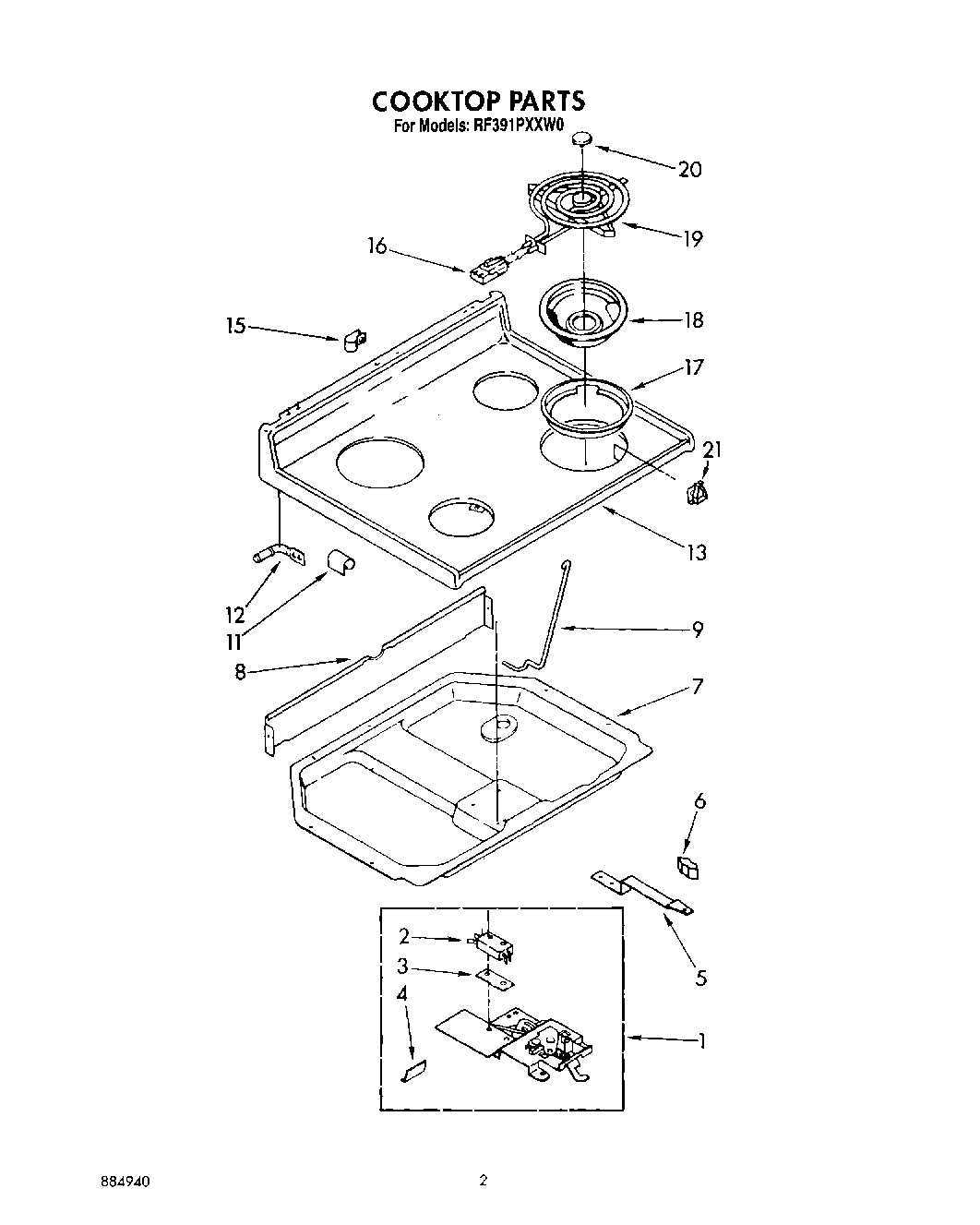

RF391PXXW0 02 – COOKTOP

Products

PositionProduct
1Latch Assembly
2Safety Switch
2Screw
3Insulator, Switch
4Screw
4Shield, Latch
5Handle, Latch
5Screw
6Knob, Latch
6WP486579 Whirlpool Air Conditioner Screw
7Box, Burner
7WP3390631 Whirlpool Screw
8Shield, Wiring
9Rod, Cooktop
11Bracket, Cooktop (2)
12Pin, Cooktop (2)
13Cooktop (White)
15WP308605 Whirlpool Refrigerator Clamp
15SCREW
16WP313808 Whirlpool Screw
16WP4332752 Whirlpool Clip
17W10854470 Whirlpool Trim Ring
17W10858781 Whirlpool Trim Ring
18Reflector Pan (6“ (2))
18W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
19WP660532 Whirlpool Oven Surface Element
19WP660533 Whirlpool Oven 8" Surface Element
20Medallion (4)
21814103 Whirlpool Clip
21WP487887 Whirlpool Refrigerator Screw
21Nut (4)
