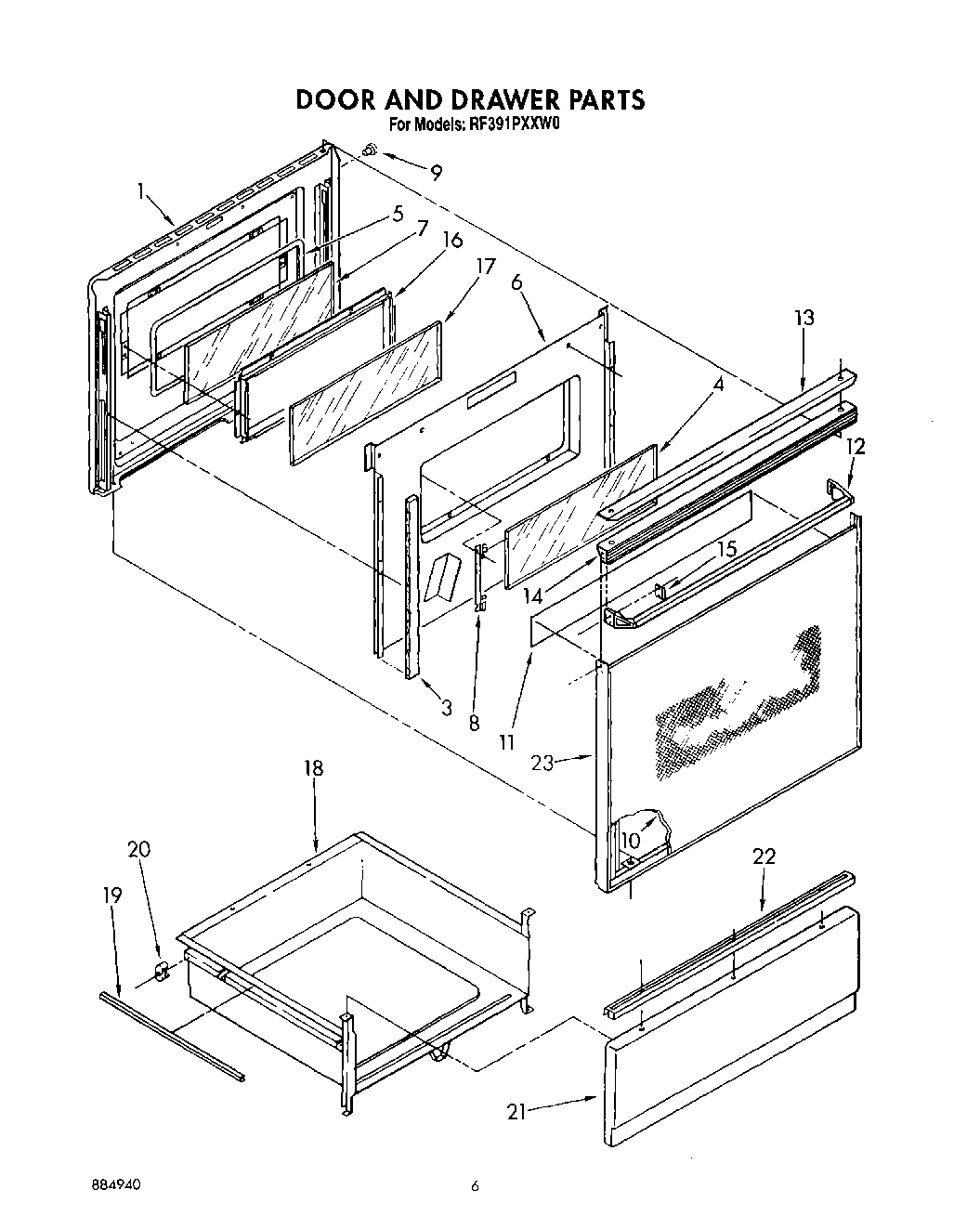

RF391PXXW0 05 – DOOR AND DRAWER, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	WPL LIT3149507
	Instructions, Installation
	WPL LIT3181497
	WPL LIT3150272
1	Screw
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White)
11	Foil, Door
12	Handle, Door (White)
12	WP355515 Whirlpool Screw
13	Cap, Top
13	WP308685 Whirlpool Microwave Screw
14	Top, Door (White Model)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
20	Screw, 10A x 1/2 (2) (Black)
21	WP488787 Whirlpool Refrigerator Screw
21	Panel Drawer (White)
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
23	Frame, Door
