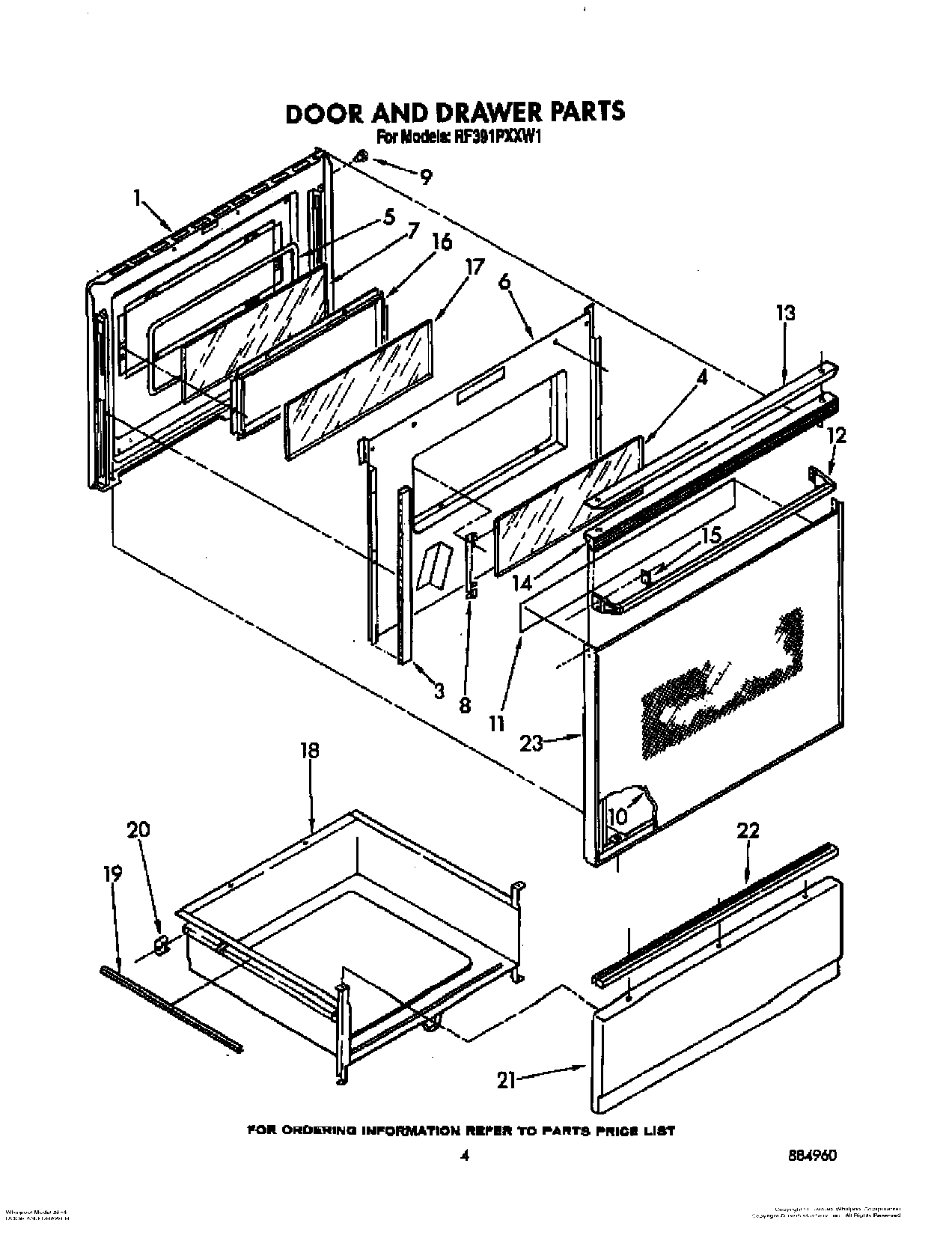

RF391PXXW1 04 – DOOR AND DRAWER, LIT/OPTIONAL

Products

Position	Product
1	Screw
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White)
11	Foil, Door
12	Handle, Door (White)
13	Cap, Top
14	Top, Door (White Model)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
21	Panel Drawer (White)
21	WP488787 Whirlpool Refrigerator Screw
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
23	Frame, Door
23	WP308685 Whirlpool Microwave Screw
23	WP355515 Whirlpool Screw
