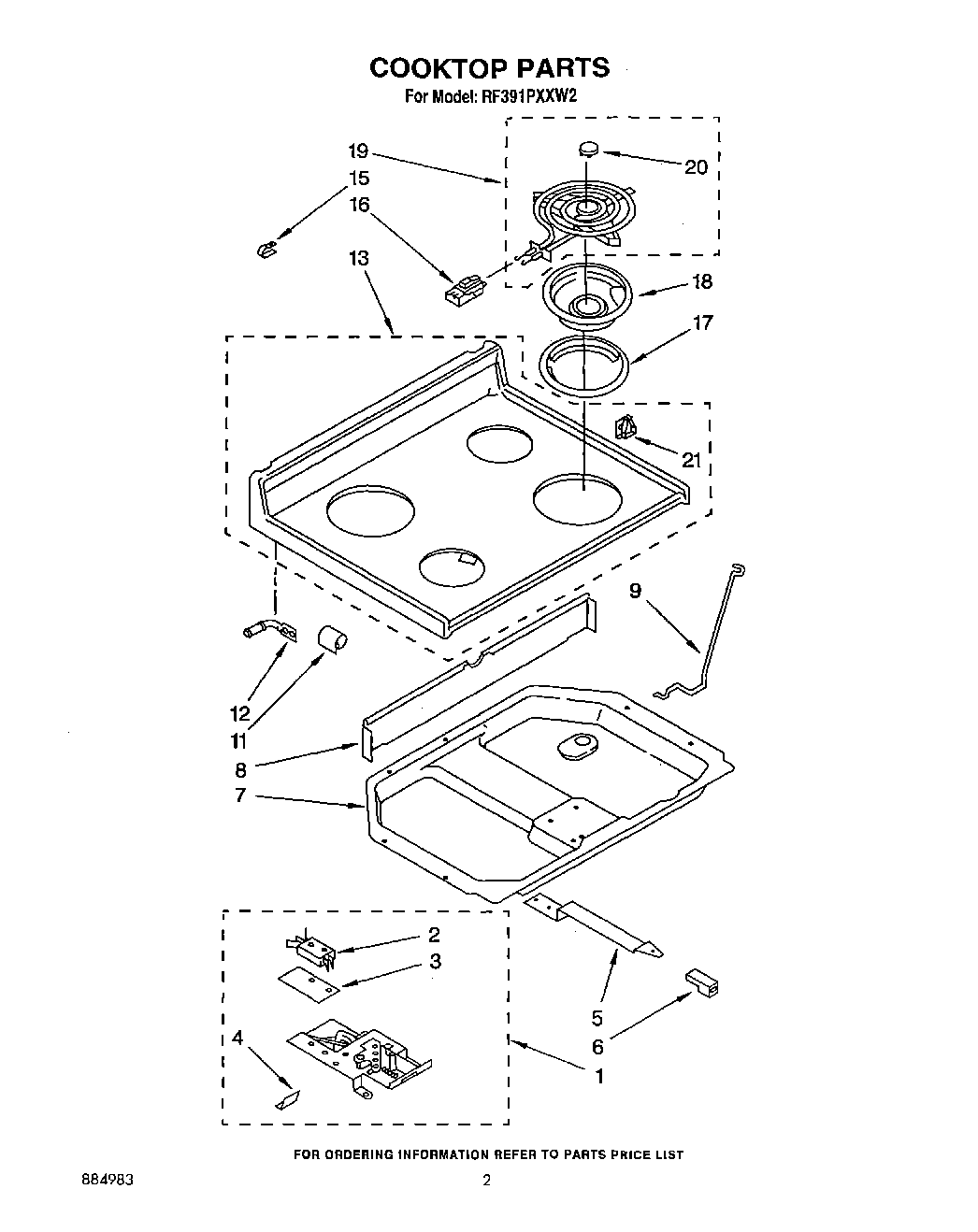

RF391PXXW2 02 – COOKTOP

Products

Position	Product
1	Latch Assembly
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Handle, Latch
5	Screw
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (White)
15	SCREW
15	WP308605 Whirlpool Refrigerator Clamp
16	WP313808 Whirlpool Screw
16	WP4332752 Whirlpool Clip
17	W10858781 Whirlpool Trim Ring
17	W10854470 Whirlpool Trim Ring
18	Reflector Pan (6“ (2))
18	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
19	WP660532 Whirlpool Oven Surface Element
19	WP660533 Whirlpool Oven 8" Surface Element
20	Medallion (4)
21	814103 Whirlpool Clip
21	WP487887 Whirlpool Refrigerator Screw
21	Nut (4)
