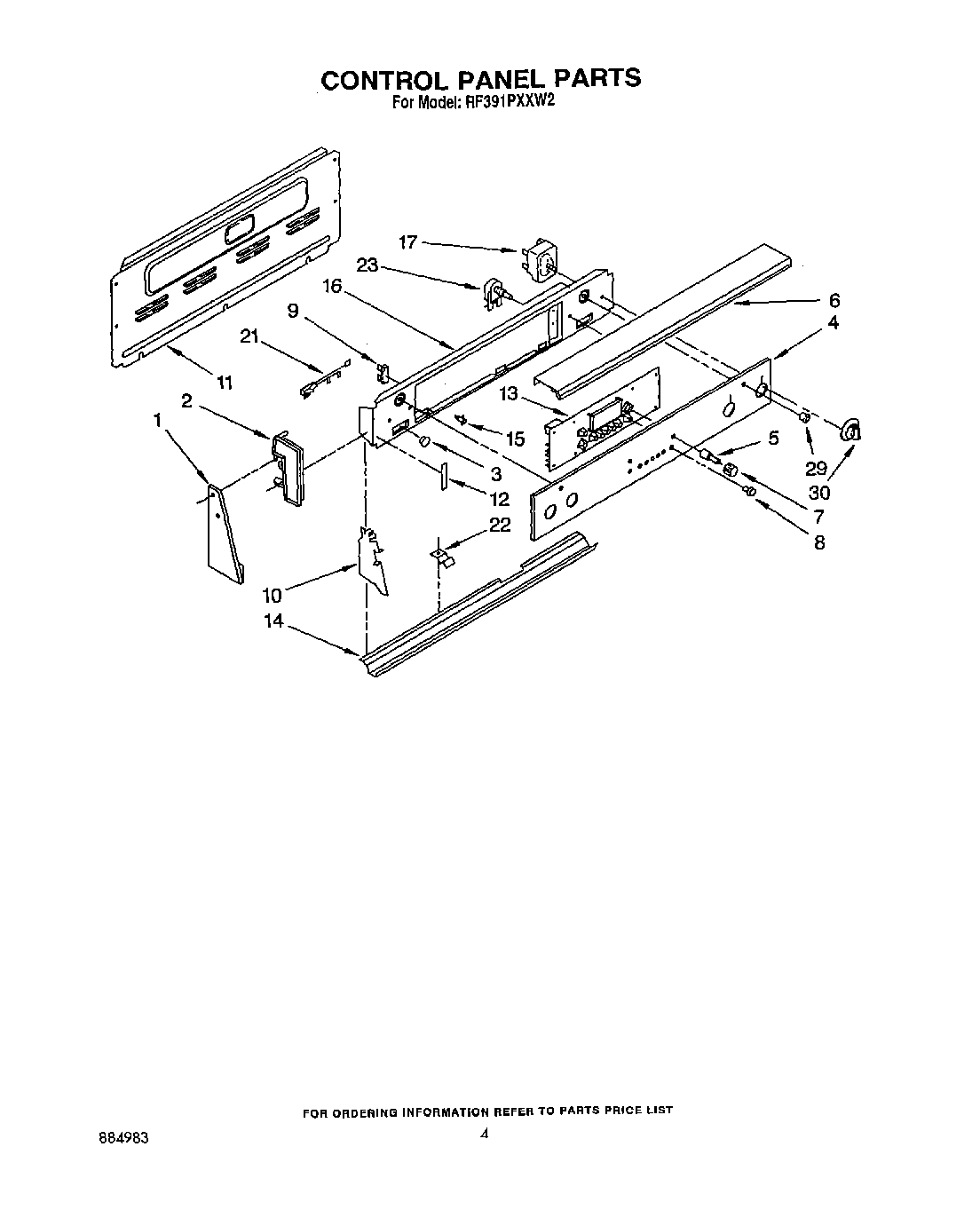

RF391PXXW2 03 – CONTROL PANEL

Products

Position	Product
1	Washer
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap R.H.
2	End Cap L.H.
3	Lens (4)
4	Glass, Panel
5	Shaft, Bit Generator
6	Top Trim - White
7	Knob, Bit Generat
8	WPL 3149177
9	Screw
9	WP3196548 Whirlpool Thermal Fuse
10	Shield, Glass (2)
11	Harness-Conduit Asm.
11	SCREW
12	Seal, Foam (4)
13	Electronic Range Control
14	Bottom Trim
14	Screw,
15	WPL 313087
16	Bracket, Control Panel
17	W10900107 Whirlpool Oven Surface Element Switch
17	WP486579 Whirlpool Air Conditioner Screw
21	Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
22	Support, Wedge
22	WP965173 Whirlpool Dishwasher Screw
23	Lockwasher
23	White Model
29	Bezel, Switch (White)
30	WP3149983 Whirlpool Knob
