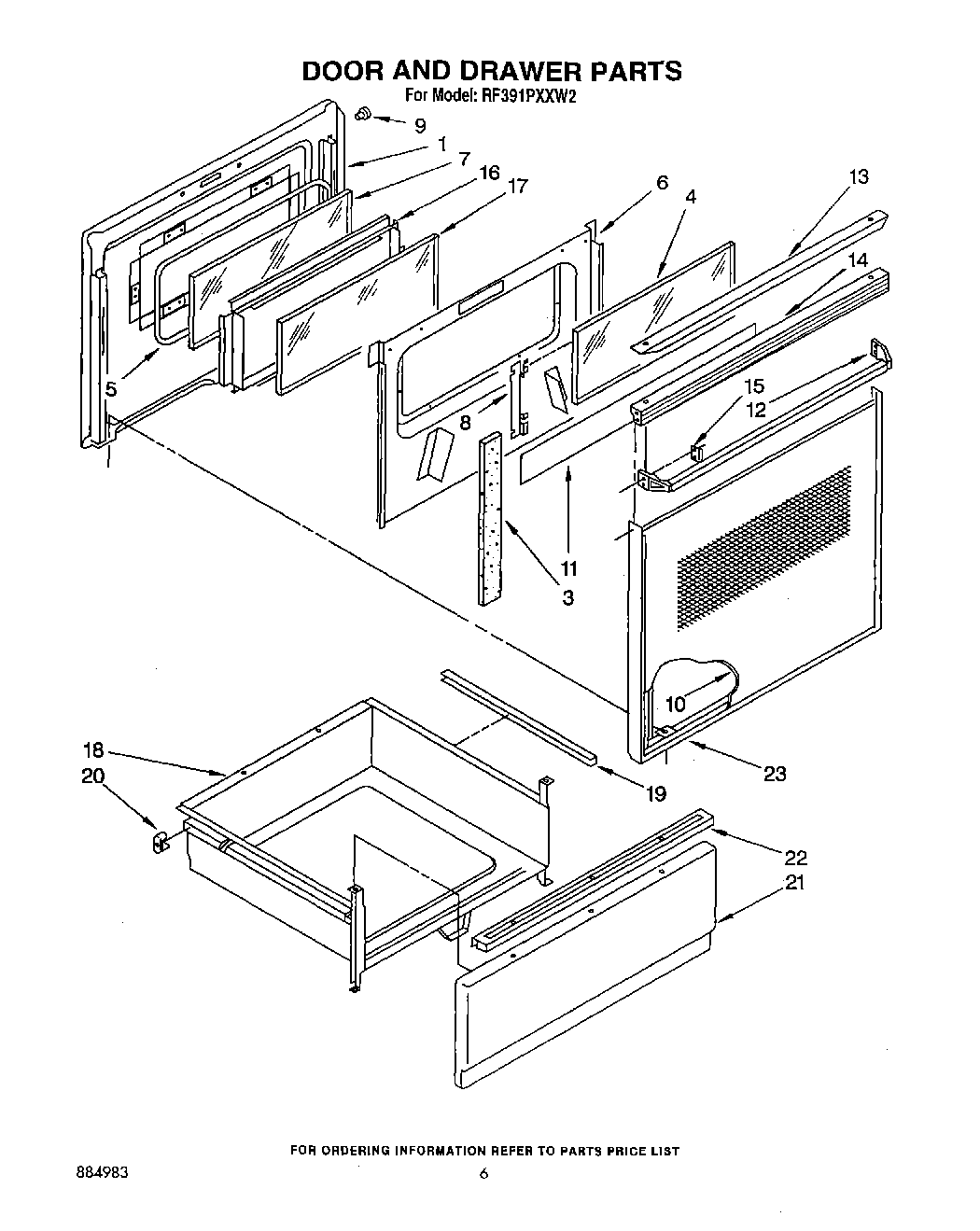

RF391PXXW2 05 – DOOR AND DRAWER

RF391PXXW2 05 – DOOR AND DRAWER

Written by

in

RF391PXXW2 05 – DOOR AND DRAWER

Products

PositionProduct
1Screw
1Liner, Door
3Seal, Flange (2)
4Glass, Reflective
5Seal, Door
6Retainer,
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
9Bumper (4)
10Glass, Panel (White)
11Foil, Door
12Handle, Door (White)
13Cap, Top
14Top, Door (White Model)
15Clip, Mtg (2)
16Frame, Inner
16Screw
18Drawer, Utility
19Protector, Drawer (2)
20Glide, Rear (2)
21Panel Drawer (White)
21WP488787 Whirlpool Refrigerator Screw
22Handle, Drawer
22WP488627 Whirlpool Refrigerator Screw
23Frame, Door
23WP308685 Whirlpool Microwave Screw
23WP355515 Whirlpool Screw
