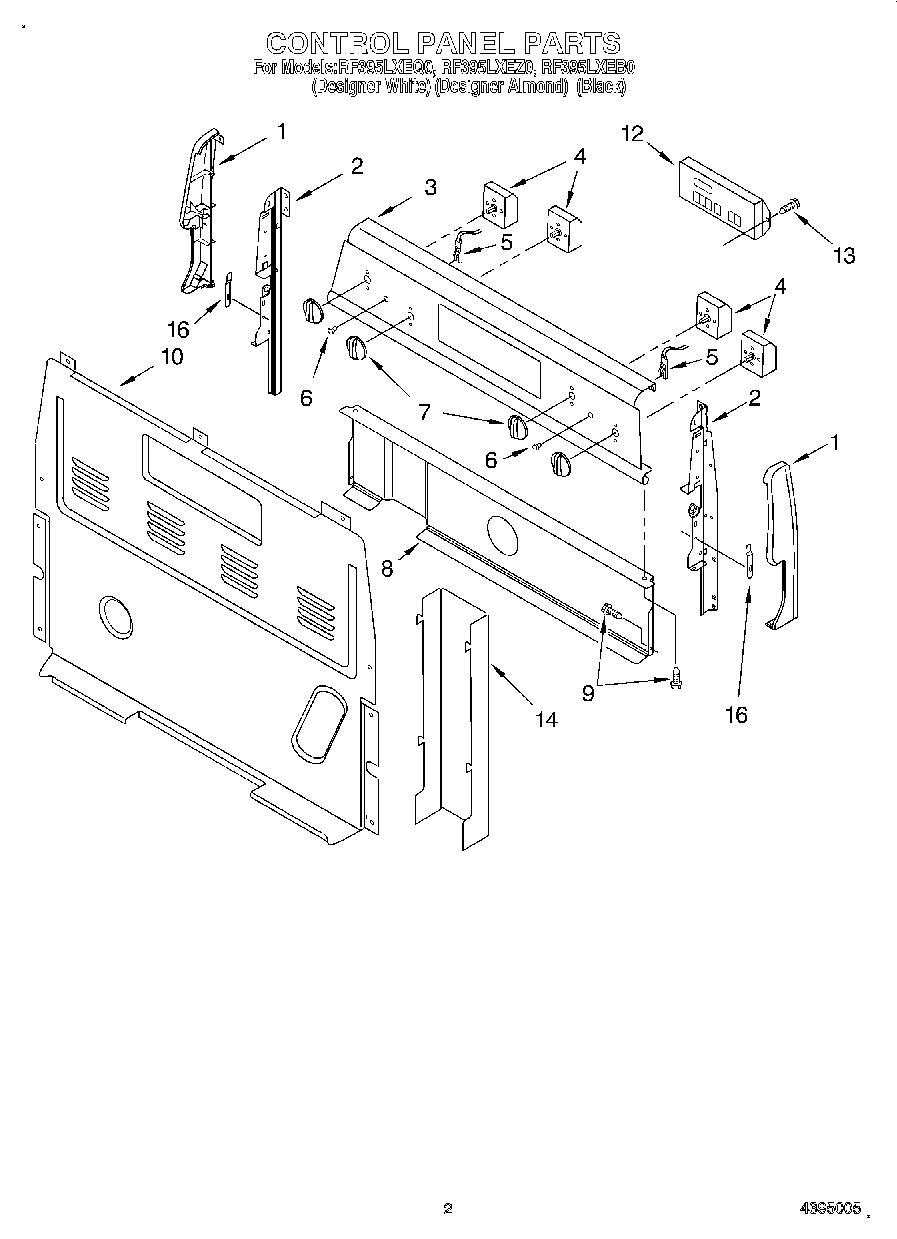

RF395LXEQ0 02 – CONTROL PANEL

RF395LXEQ0 02 – CONTROL PANEL

Written by

in

RF395LXEQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Almond Left Hand)
1Endcap (Almond Right Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard
3Panel, Backguard
3Support, Endcap (Almond)
4Switch, Infinite (Screw (8))
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149400 Whirlpool Oven Infinite Switch
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP3196231 Whirlpool Knob
7Knob, Infinite (4) (Almond)
7WP3196232 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12Control, Range (Black)
12Control, Range (White)
12Control, Range (Almond)
14WPW10326122 Whirlpool Black Cover
14SCREW
163196200 Whirlpool Clip
