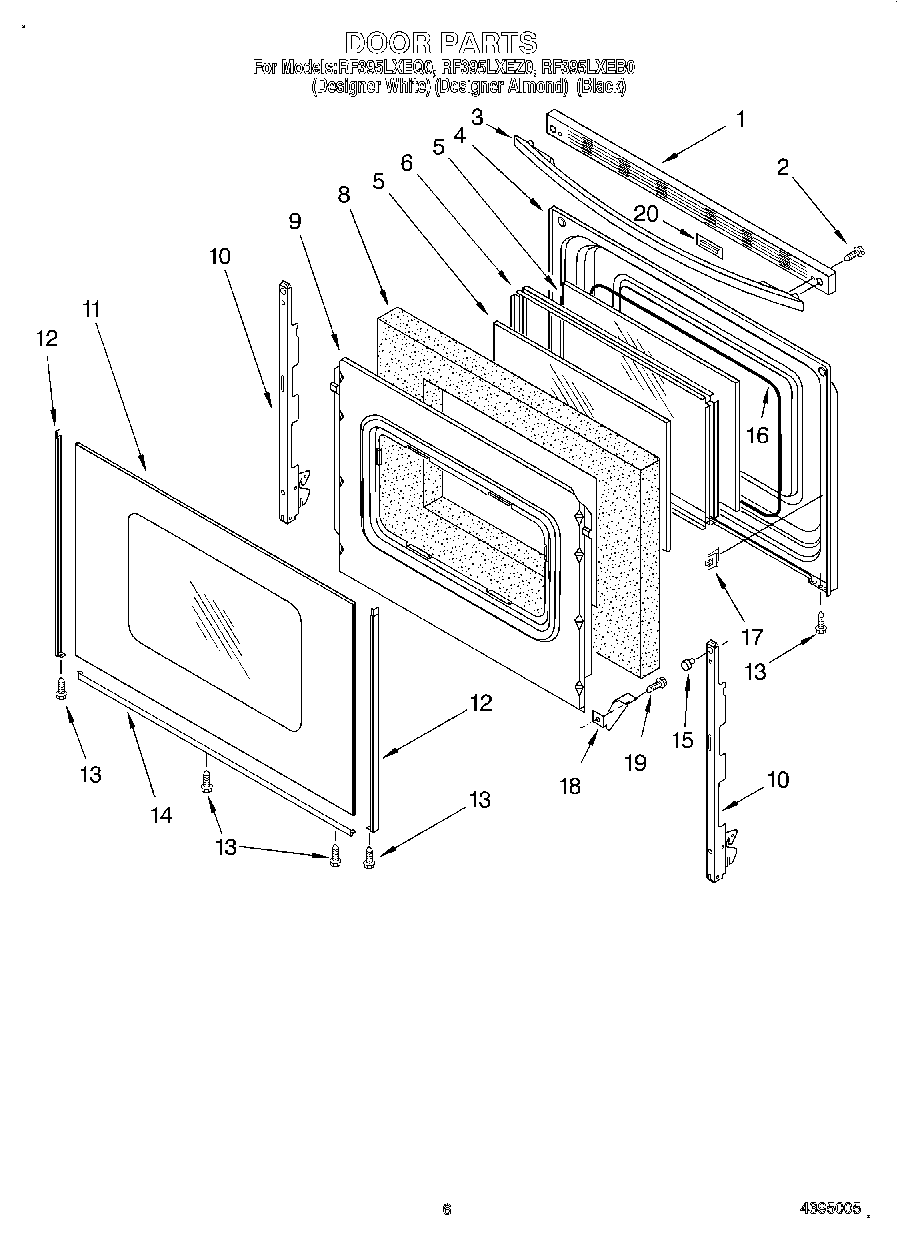

RF395LXEQ0 05 – DOOR, LIT/OPTIONAL

RF395LXEQ0 05 – DOOR, LIT/OPTIONAL

Written by

in

RF395LXEQ0 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	3400964 Whirlpool Oven Clip
	Clip, Ground Wire
	3184020 Whirlpool Oven Wire
	WPL LIT3195944
	Literature (Installation, Instructions (Template))
	Harness, Wire (Door Switch)
	3196696 Whirlpool Clip
	W11244557 Whirlpool Screw
	WPL 3195247
	WPL LIT3196078
	WPL LIT3196279
	W11396691 Whirlpool Element Receptacle and Wire Kit
1	Trim, Top (Almond)
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top
2	WP3196164 Whirlpool Screw
3	Handle, Door (Almond)
3	WPW10202216 Whirlpool Door Handle
3	WP179051 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	WP8053948 Whirlpool Door Glass
6	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WP8053834 Whirlpool Door Glass
11	Glass, Outer Door (Almond)
11	WPW10118455 Whirlpool Door Glass Assembly
13	W10491985 Whirlpool Screw
14	8184858 Whirlpool Door Trim
14	8184860 Whirlpool Oven Door Trim
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
15	238614 Whirlpool Bumper Hinge
16	Seal, Window
17	Clip, Glass (4)
18	WP3196794 Whirlpool Glass Bracket
19	WP3196175 Whirlpool Screw
20	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
20	Grease
20	Golden Harvest (Uncut)
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	8212471 Whirlpool Oven Paint
20	Leveler (Thinner) (2oz.)
20	Bracket, Latch
20	WP3400832 Whirlpool Screw
20	1
20	Wire (14 Ga. 200 c Brown)
20	WPL 799832
20	511873 Whirlpool Refrigerator Paint
20	350942 Whirlpool Spray Paint
20	WPL 72112
20	Platinum (Uncut)
20	Enamal, Toast (1 Qt. Uncut)
20	Paint, Spray (13 Oz.) (Platinum)
20	Toast
20	Golden Harvest
20	72113 Whirlpool Touch-Up Paint
20	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
20	Almond (Uncut)
20	WP72107 Whirlpool Touchup
20	799344 Whirlpool Refrigerator Paint
20	72017 Whirlpool Appliance Touch-Up Paint White
20	350956 Whirlpool Spray Assembly
20	WPW10208653 Whirlpool Insulation
20	FOIL, ALUMINUM OVEN (18“ X 25 )
20	18 Ga. 80~c Rating (Red)
20	Wire (12 Ga. 150 c Black)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	242831 Whirlpool Oven Wire
20	Paint, Spray 13 Oz. (Avocado)
20	paint, spray 13 oz. (coffee)
20	Paint, Touch-Up 1/2 Oz. (Coffee)
20	72109 Whirlpool Dacor Avocado Touch-Up Paint
20	285006 Whirlpool Spray
20	Wire, 25“ Roll (White 14 GA.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	350930 Whirlpool White Spray Paint
