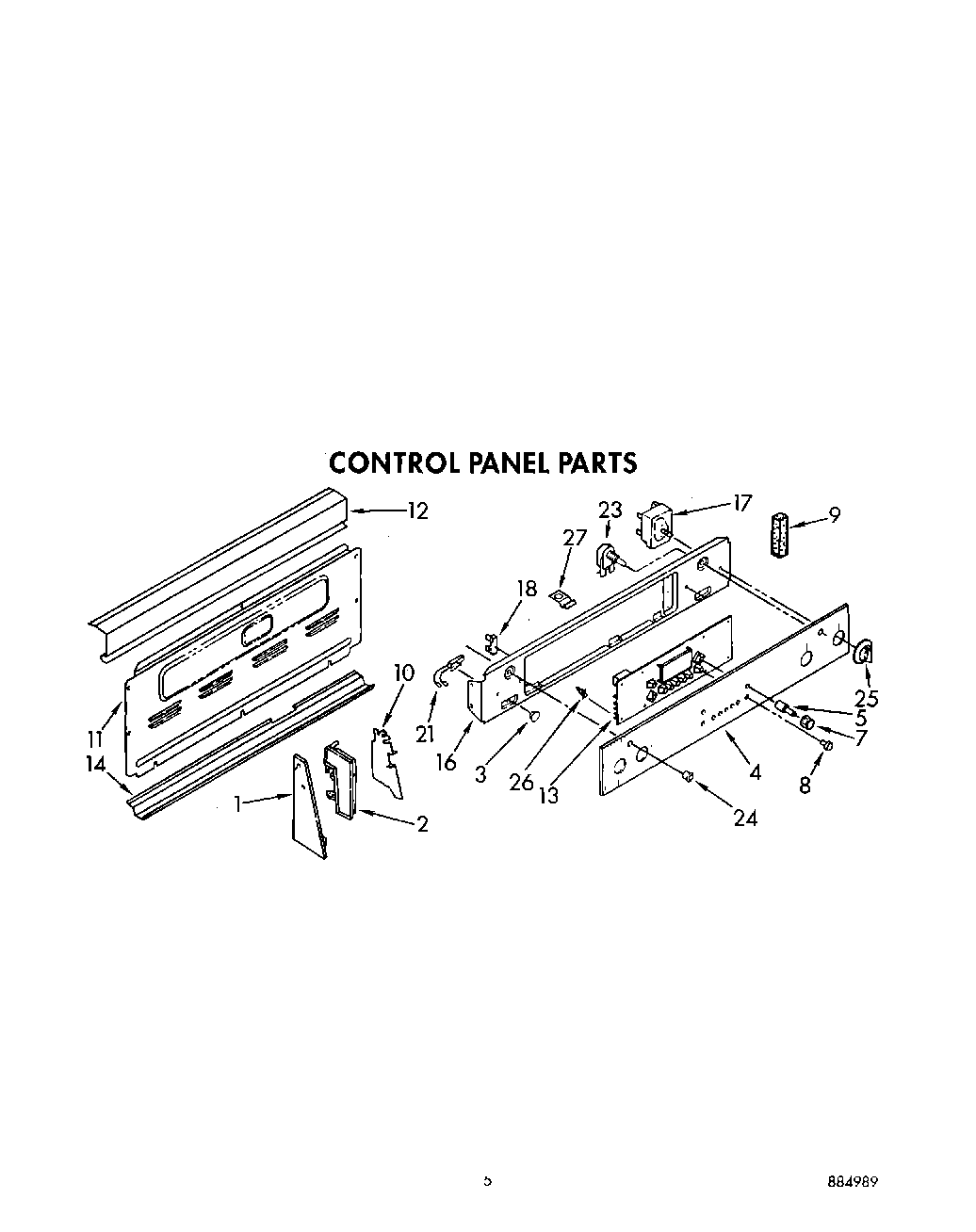

RF395PCXN2 05 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap L.H.
2	End Cap R.H.
3	Lens (4)
4	Glass, Panel
5	Shaft, Bit Generator
7	Knob, Bit Generator (Black)
8	WPL 313958
9	Seal, Foam (4)
10	WP965173 Whirlpool Dishwasher Screw
10	Shield, Glass (2)
11	Harness-Conduit Asm.
12	Top Trim, Black
13	Control, Timer
14	Screw,
14	Bottom Trim
16	Bracket, Control Panel
17	W10900107 Whirlpool Oven Surface Element Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	WP3196548 Whirlpool Thermal Fuse
21	Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
23	Lockwasher
23	Switch, Oven Light
24	Bezel Switch (1)
25	SCREW
25	WP3149983 Whirlpool Knob
26	WPL 313087
27	Support, Wedge
