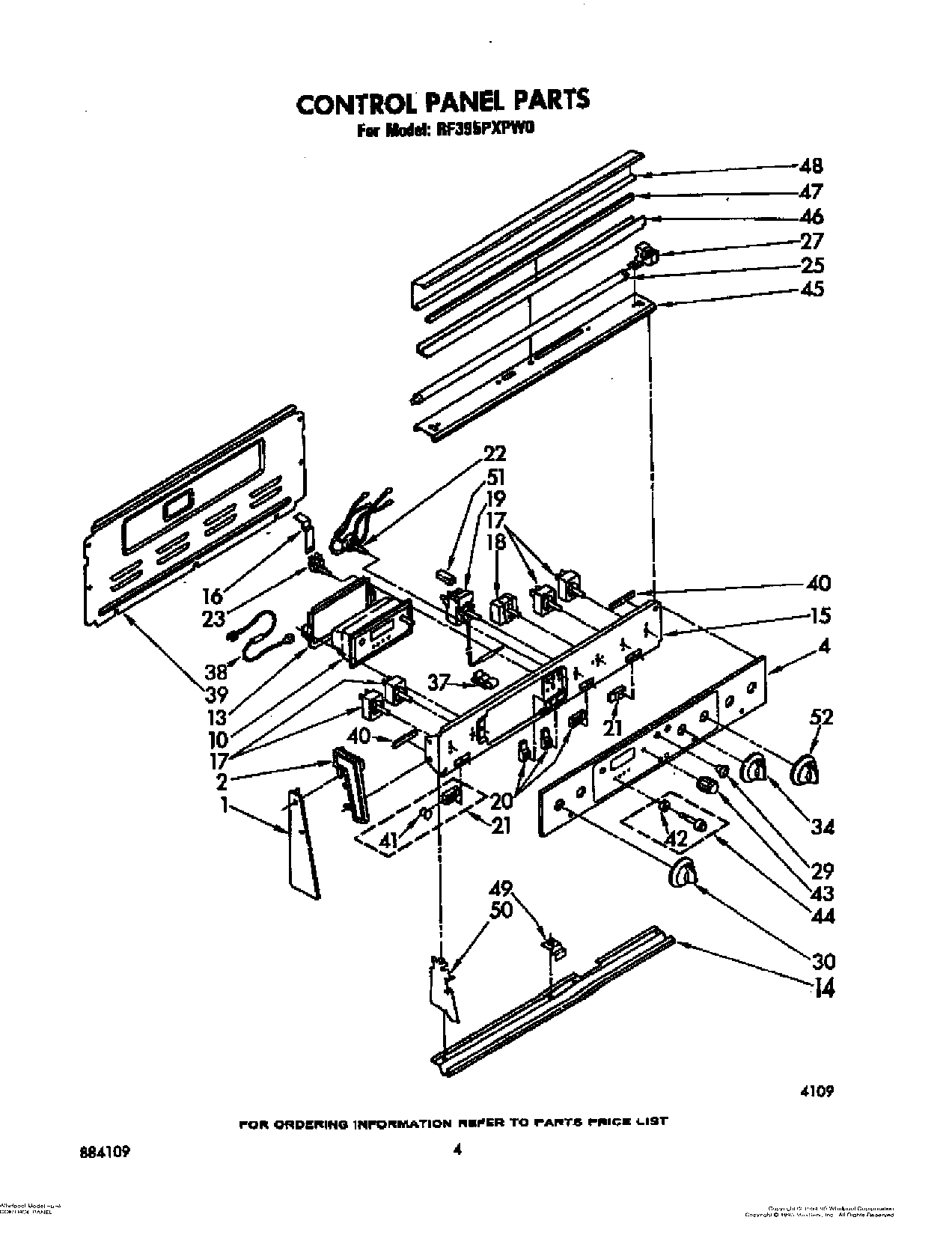

RF395PXPW0 03 – CONTROL PANELadmin2025-04-26T12:47:19+00:00RF395PXPW0 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Trim L.H. |
| 1 | WP3390631 Whirlpool Screw |
| 1 | Washer |
| 2 | W11693756 Whirlpool Screw Assembly |
| 2 | End Cap L.H. |
| 2 | End Cap R.H. |
| 4 | Control Panel, Glass |
| 10 | Timer, Digital |
| 13 | Bracket, Timer |
| 14 | Bottom Trim |
| 15 | Washer |
| 15 | Bracket, Control |
| 16 | Brace, Control Bracket |
| 16 | Screw, |
| 17 | W10900107 Whirlpool Oven Surface Element Switch |
| 18 | Switch, Selector |
| 18 | WP486579 Whirlpool Air Conditioner Screw |
| 19 | Thermostat, Oven Pyro |
| 19 | WP313808 Whirlpool Screw |
| 20 | Insulation Oven Door Plug |
| 21 | Light, Indicator (Surface Unit) (2) (Includes Illus. 41) |
| 22 | Switch, Fluorescent Light |
| 23 | nut, 3/8 x 27 |
| 23 | Lockwasher |
| 23 | Switch, Oven Light |
| 25 | Lamp, Fluorescent |
| 27 | Socket, Light L.H. |
| 27 | Socket, Light R.H. |
| 29 | Bezel Switch (1) |
| 30 | Knob, Control (4) |
| 34 | Screw |
| 34 | Knob, Control (2) |
| 37 | Clip, Tube |
| 38 | Resistor & Terminal Assembly |
| 39 | Harness-Conduit Asm. |
| 39 | SCREW |
| 40 | Seal, Foam |
| 41 | Lens (4) |
| 42 | WPL 313522 |
| 43 | Knob, Bit Generator (Black) |
| 44 | WPL 313524 |
| 45 | Trim, Top |
| 46 | Backguard, Lamp |
| 47 | Protector, Lamp |
| 48 | WPL 313198 |
| 49 | Support, Wedge |
| 49 | Screw |
| 50 | WP965173 Whirlpool Dishwasher Screw |
| 50 | Shield, Glass (2) |
| 51 | Housing, Receptical |
| 52 | WP688805 Whirlpool Spring Clip |
| 52 | KNOB, CONTROL |
