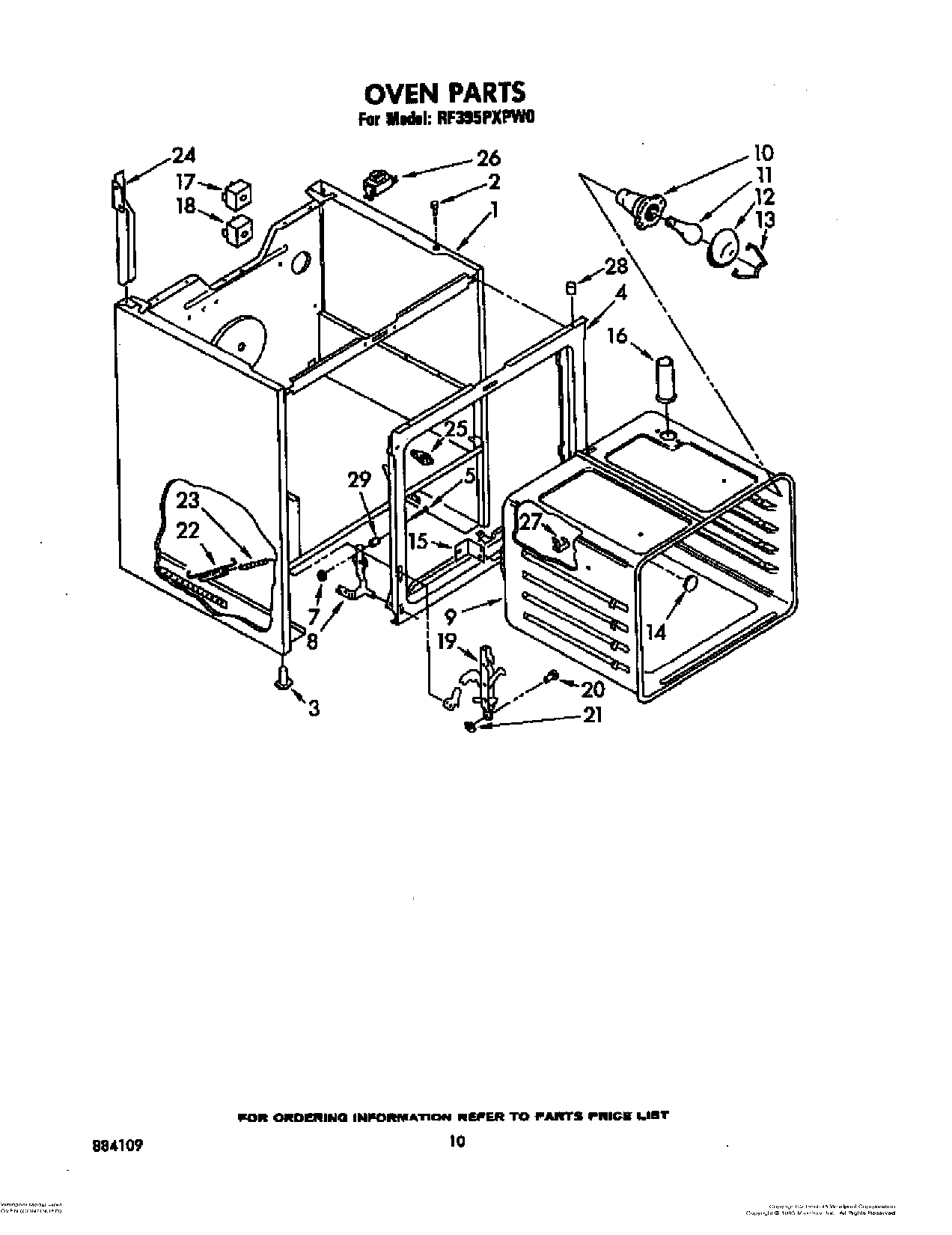

RF395PXPW0 06 – OVEN (CONTINUED)

Products

PositionProduct
SCREW
Screw (10-12 x .875)
1Main Chassis (Almond)
1Main Chassis (White)
1Main Chassis (Harvest Gold)
1Main Chassis (Toast)
1Main Chassis (Platinum)
2238614 Whirlpool Bumper Hinge
3WPW10058460 Whirlpool Appliance Levelling Leg
4Frame, Front
5Pin, Hinge Ear (2)
7Pushnut (2)
8Hinge (R.H.)
8Hinge (L.H.)
9Screw (3)
9Oven (30“ Pyro)
10Socket, Oven Light (Alt.)
10Socket, Oven Light
10Socket, Oven Light (Alt.)
11RANGE ONLY 40W 120V APPL BULB
12Cover, Light
13Retainer, Light
14Plug Button
15Bracket, Oven (Mounting)
16Vent, Oven
16Screw, 10A x 1/2 (2) (Black)
17Switch, Broil
18Switch, Bake
19Channel, Arm (2)
20WP307986 Whirlpool Hinge Pin
21Retainer Ring (2)
22WP308126 Whirlpool Door Spring
23WP308125 Whirlpool Microwave Range/Cooktop Anchor
24Wire Cover-Controls (Right)
24Wire Cover
25Switch, Door
26Ballast
26Ballast (Alt.)
26Ballast (Alt.)
2798005642 Whirlpool Clip
28locator, cooktop
28Screw, 8-32 x 5/16 (2)
29Snubber, Door (2)
