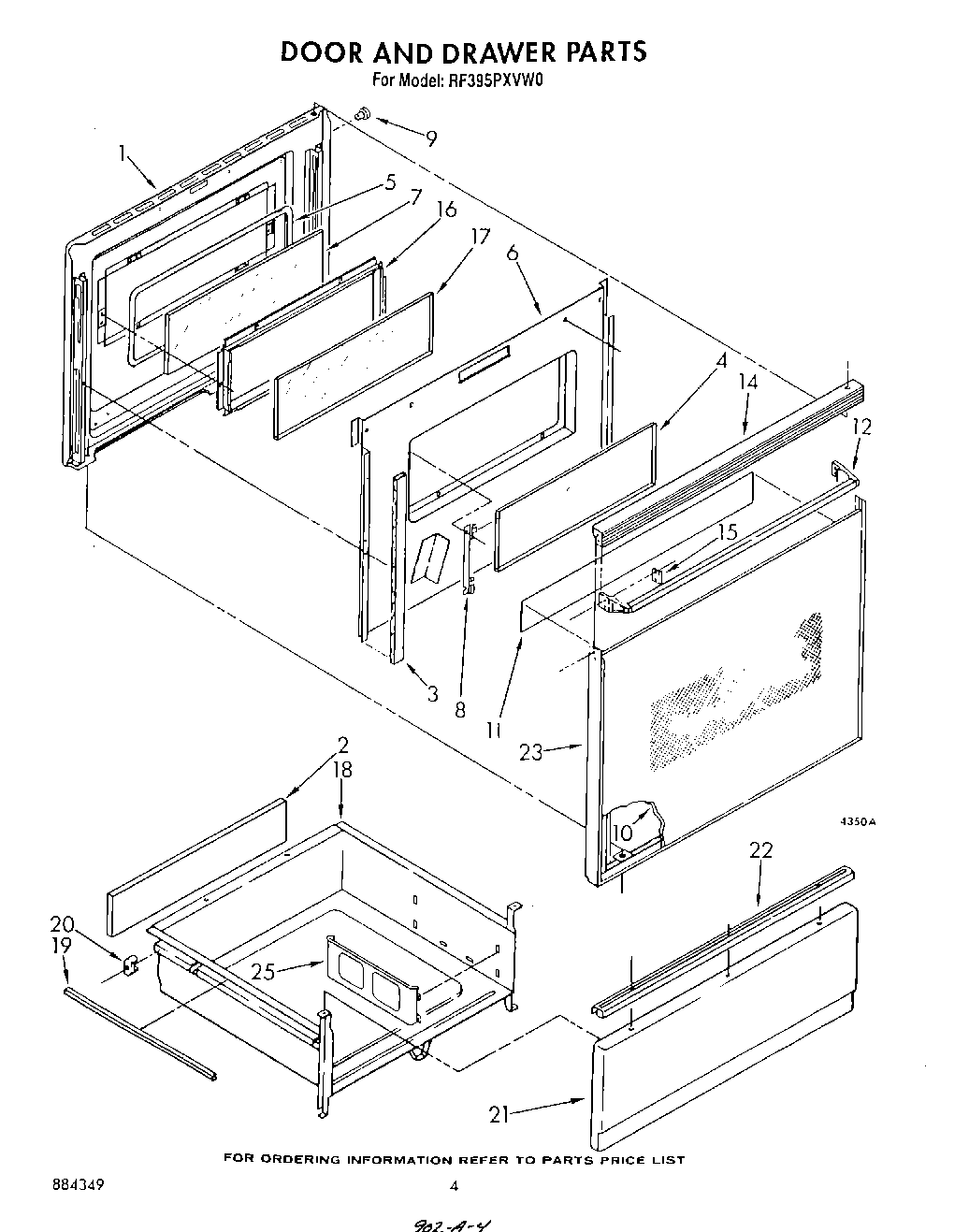

RF395PXVW0 04 – DOOR AND DRAWER

RF395PXVW0 04 – DOOR AND DRAWER

Written by

in

RF395PXVW0 04 – DOOR AND DRAWER

Products

PositionProduct
1Screw
1Liner, Door
2Pad, Sound
3Seal, Flange (2)
4Glass, Reflective
5Seal, Door
6Retainer,
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
9Bumper (4)
10Glass, Panel (Black Model)
11Foil, Door
12Handle, Door
12WP355515 Whirlpool Screw
14Top, Door (Black Model)
15Clip, Mtg (2)
16Frame, Inner
16Screw
18Drawer, Utility
19Protector, Drawer (2)
20Glide, Rear (2)
20Screw, 10A x 1/2 (2) (Black)
21Panel Drawer (White)
21Panel, Drawer (Almond)
21WP488787 Whirlpool Refrigerator Screw
22Handle, Drawer
22WP488627 Whirlpool Refrigerator Screw
23Frame, Door
25Rack, Literature
