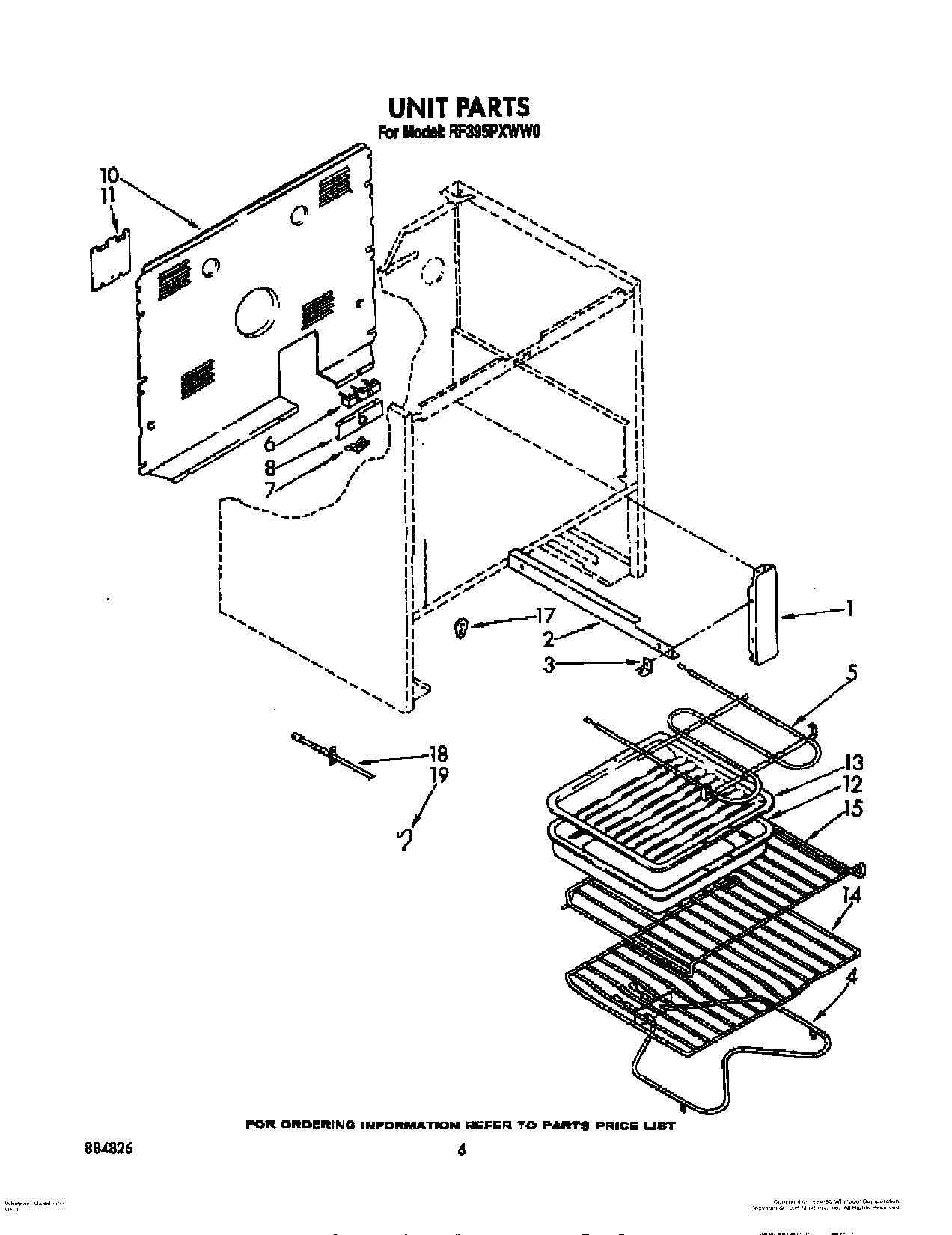

RF395PXWN0 05 – UNIT, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3149507
	511873 Whirlpool Refrigerator Paint
	Screw (2)
	WPL LIT3150400
	Instructions, Installation
	WPL LIT3149778
	WPL LIT884826
	Guide, Use & Care
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	Screw, 10A x 1/2 (2) (Black)
2	Rail L.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	WPL 311982
18	SCREW
18	Sensor, Heat
19	Wire (14 Ga. 150 c Orange)
19	Leveler (Thinner) (2oz.)
19	Wire (14 Ga. 150 c Yellow)
19	Wire (12 Ga. 150 c Black)
19	18 Ga. 80~c Rating (Red)
19	350930 Whirlpool White Spray Paint
19	Grease
19	Wire (14 Ga. 200 c Brown)
19	8212471 Whirlpool Oven Paint
19	1
19	Enamel, Coffee (1 Qt. Uncut)
19	Wire (14 Ga. 150 c Green)
19	Platinum (Uncut)
19	Enamal, Toast (1 Qt. Uncut)
19	Paint, Spray (13 Oz.) (Platinum)
19	Toast
19	Golden Harvest (Uncut)
19	Golden Harvest
19	72113 Whirlpool Touch-Up Paint
19	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	WPL 72112
19	350942 Whirlpool Spray Paint
19	WPL 799832
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Blue)
19	242831 Whirlpool Oven Wire
19	Paint, Touch-Up 1/2 Oz. (Coffee)
19	16515 Whirlpool Clip
19	Paint, Spray 13 Oz. (Avocado)
19	paint, spray 13 oz. (coffee)
19	72109 Whirlpool Dacor Avocado Touch-Up Paint
19	285006 Whirlpool Spray
19	Wire, 25`` Roll (White 14 GA.)
19	Wire, 25` Roll (Red 14 Ga.)
19	Wire, 25` Roll (Black 14 Ga.)
19	350956 Whirlpool Spray Assembly
