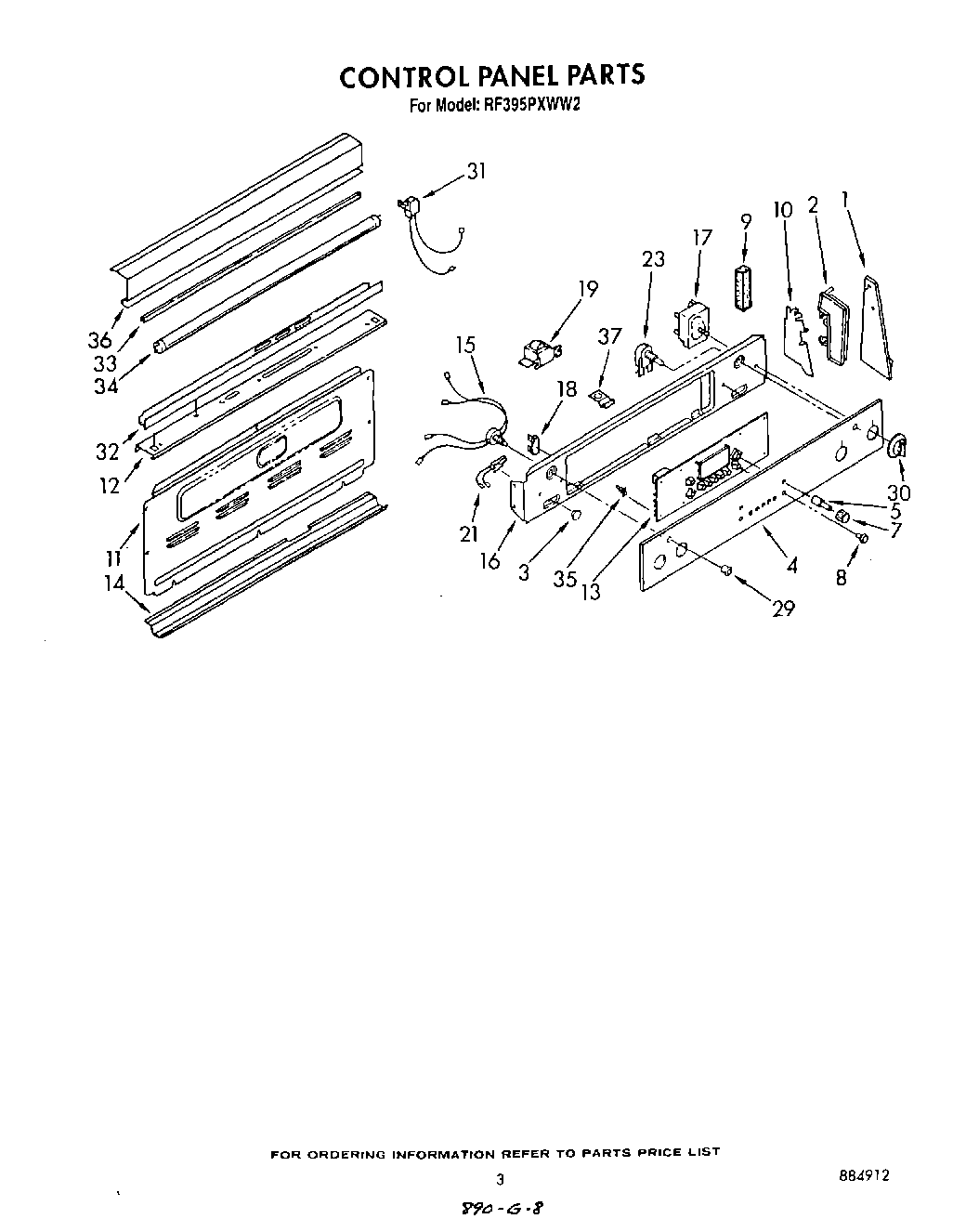

RF395PXWW2 03 – CONTROL PANEL

Products

Position	Product
1	End Trim L.H.
1	Washer
2	End Cap L.H.
2	End Cap R.H.
3	Lens (4)
4	Glass, Panel
5	Shaft, Bit Generator
7	Knob, Bit Generator (Black)
8	WPL 313958
9	Seal, Foam (4)
10	Shield, Glass (2)
10	WP965173 Whirlpool Dishwasher Screw
11	Harness-Conduit Asm.
12	Trim, Top
12	WP313808 Whirlpool Screw
13	Control, Timer
14	Screw,
14	Bottom Trim
15	Switch, Fluorescent Light
16	Bracket, Control Panel
17	W10900107 Whirlpool Oven Surface Element Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	WP3196548 Whirlpool Thermal Fuse
19	Ballast
21	Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
21	Light, Indicator (Locked)
23	nut, 3/8 x 27
23	Lockwasher
23	Switch, Oven Light
29	Bezel Switch (1)
30	SCREW
30	WP3149983 Whirlpool Knob
31	Socket, Light L.H.
31	Socket, Light R.H.
32	Backguard, Lamp
33	Protector, Lamp
34	Lamp, Fluorescent
35	WPL 313087
36	Cover, Lamp
37	Support, Wedge
