RF395PXWW2 05 – UNIT , LIT/OPTIONAL AND LITERATURE

RF395PXWW2 05 – UNIT , LIT/OPTIONAL AND LITERATURE

Written by

in

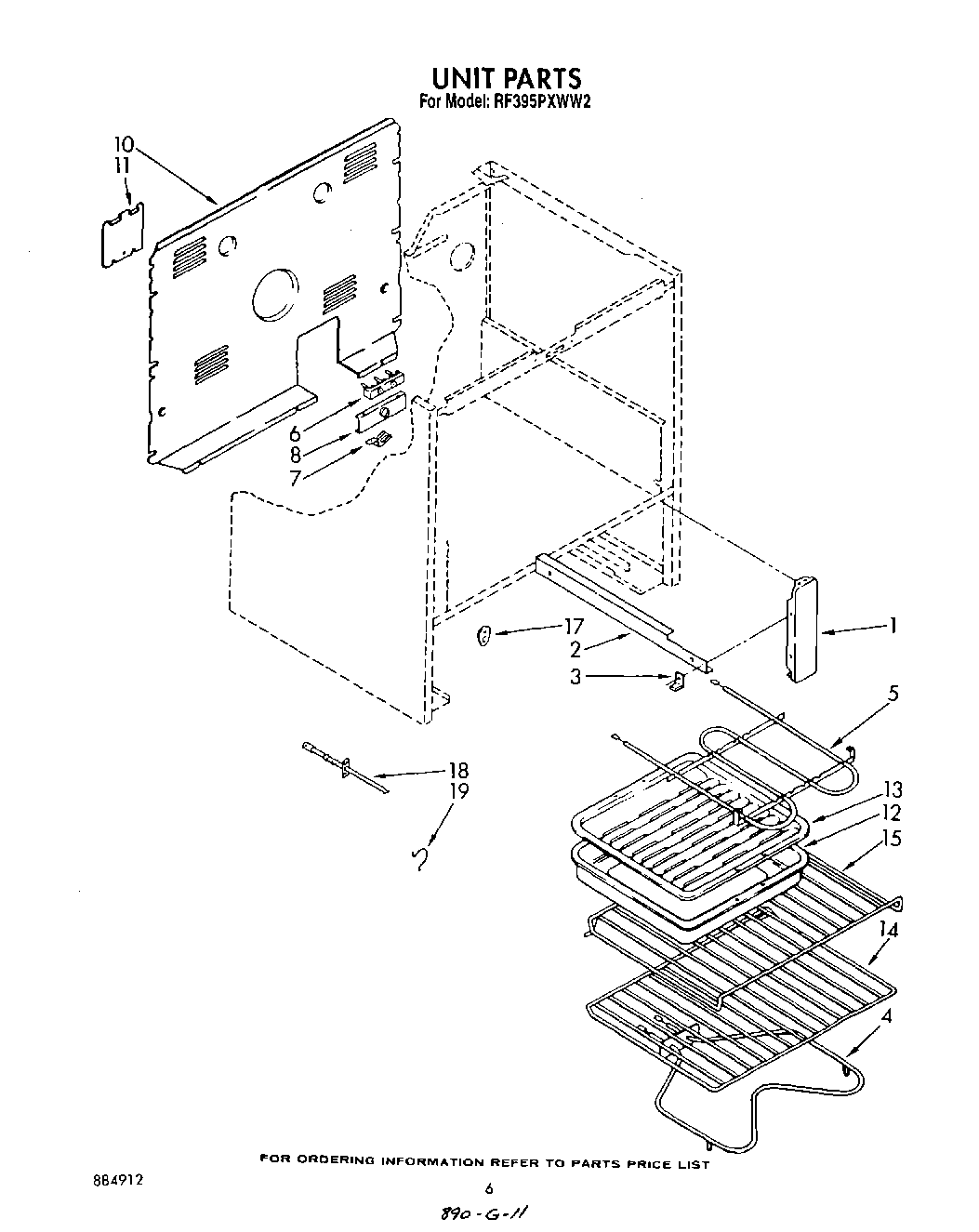

RF395PXWW2 05 – UNIT , LIT/OPTIONAL AND LITERATURE

Products

PositionProduct
Screw (2)
WPL LIT884912
WPL LIT3150544
Guide, Use & Care
Instructions, Installation
WPL LIT3149507
511873 Whirlpool Refrigerator Paint
1Bracket, Mounting (2)
2Rail R.H. (Includes Illus. 3)
2Screw, 10A x 1/2 (2) (Black)
2Rail L.H. (Includes Illus. 3)
3Glide, Front (2)
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6WP112432 Whirlpool Nut Assembly
6WP8203546 Whirlpool Terminal Block
6Screw, (2) 10-16 x 1
7WPL 308498
7Clip, Ground Wire
8Bracket, Service
10Cover, Rear
11Cover, Service
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
15WPL 308172
17WPL 311982
18SCREW
18Sensor, Heat
19Wire (14 Ga. 150 c Orange)
19350930 Whirlpool White Spray Paint
19Wire (14 Ga. 150 c Yellow)
19Wire (12 Ga. 150 c Black)
19Grease
198212471 Whirlpool Oven Paint
1918 Ga. 80~c Rating (Red)
19Leveler (Thinner) (2oz.)
19Wire (14 Ga. 200 c Brown)
191
19Enamel, Coffee (1 Qt. Uncut)
19Wire (14 Ga. 150 c Green)
19Platinum (Uncut)
19Enamal, Toast (1 Qt. Uncut)
19Paint, Spray (13 Oz.) (Platinum)
19Toast
19Golden Harvest (Uncut)
19Golden Harvest
1972113 Whirlpool Touch-Up Paint
1972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19Almond (Uncut)
19WP72107 Whirlpool Touchup
19799344 Whirlpool Refrigerator Paint
1972017 Whirlpool Appliance Touch-Up Paint White
19WPL 72112
19350942 Whirlpool Spray Paint
19WPL 799832
19Wire (14 Ga. 150 c Brown)
19Wire (14 Ga. 150 c Blue)
19242831 Whirlpool Oven Wire
19Paint, Touch-Up 1/2 Oz. (Coffee)
1916515 Whirlpool Clip
19Paint, Spray 13 Oz. (Avocado)
19paint, spray 13 oz. (coffee)
1972109 Whirlpool Dacor Avocado Touch-Up Paint
19285006 Whirlpool Spray
19Wire, 25“ Roll (White 14 GA.)
19Wire, 25` Roll (Red 14 Ga.)
19Wire, 25` Roll (Black 14 Ga.)
19350956 Whirlpool Spray Assembly
