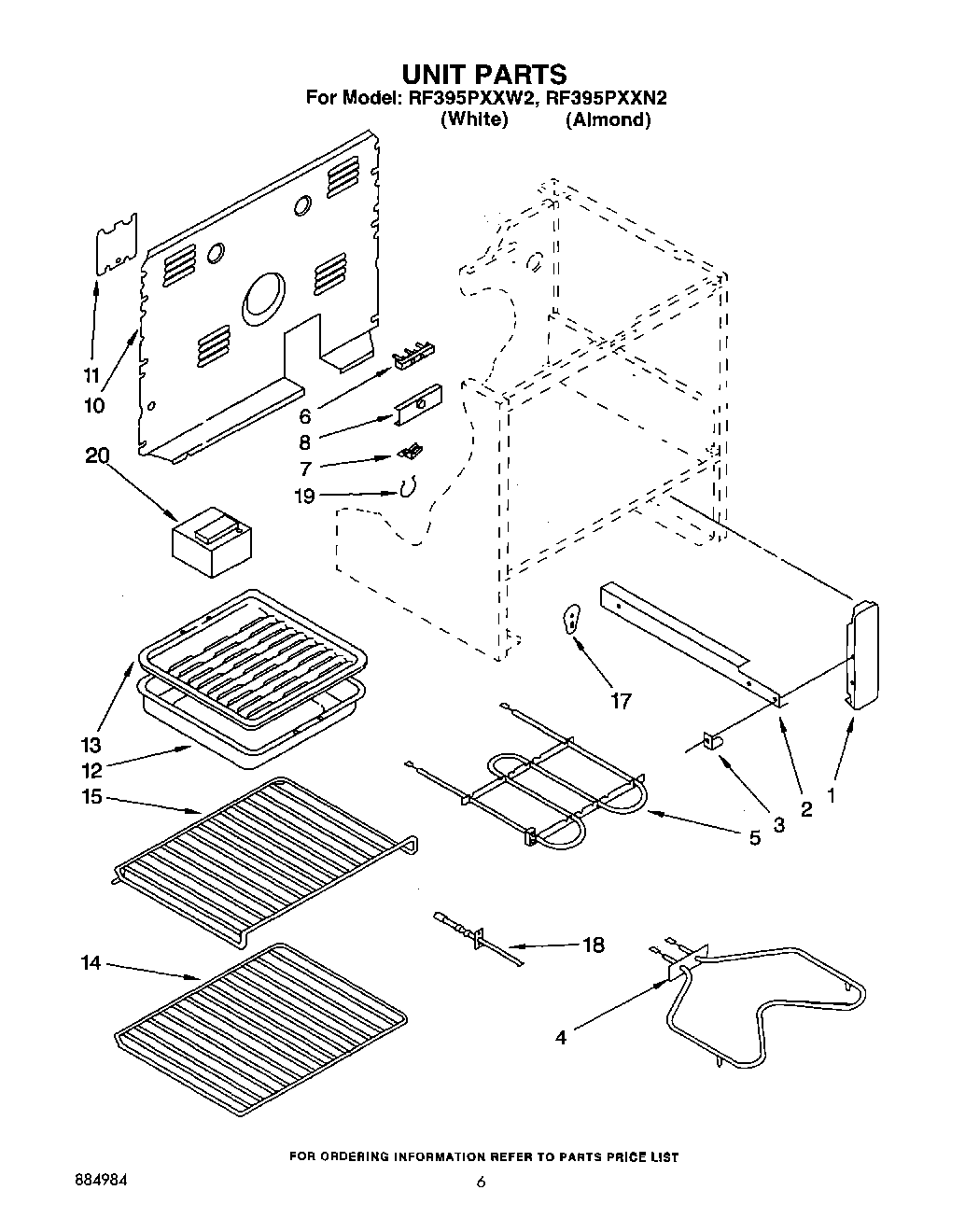

RF395PXXN2 05 – UNIT, LIT/OPTIONAL

Products

Position	Product
	WPL LIT884984
	WPL LIT3181497
	WPL LIT3150301
	WPL LIT3147395
	WPL LIT3149507
1	Bracket, Mounting (2)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
3	Screw, 10A x 1/2 (2) (Black)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	Screw, (2) 10-16 x 1
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	Screw (2)
17	WPL 311982
18	Screw (2)
18	Sensor, Heat
19	16515 Whirlpool Clip
20	1
20	Block, Balance
20	Wire (14 Ga. 150 c Yellow)
20	Wire (12 Ga. 150 c Black)
20	18 Ga. 80~c Rating (Red)
20	8212471 Whirlpool Oven Paint
20	Leveler (Thinner) (2oz.)
20	Golden Harvest
20	340184 Whirlpool Screw
20	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
20	Grease
20	Enamel, Coffee (1 Qt. Uncut)
20	Wire (14 Ga. 200 c Brown)
20	Wire (14 Ga. 150 c Orange)
20	WPL 72112
20	Platinum (Uncut)
20	Enamal, Toast (1 Qt. Uncut)
20	Paint, Spray (13 Oz.) (Platinum)
20	Toast
20	Golden Harvest (Uncut)
20	72113 Whirlpool Touch-Up Paint
20	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
20	Almond (Uncut)
20	WP72107 Whirlpool Touchup
20	799344 Whirlpool Refrigerator Paint
20	72017 Whirlpool Appliance Touch-Up Paint White
20	350956 Whirlpool Spray Assembly
20	350942 Whirlpool Spray Paint
20	511873 Whirlpool Refrigerator Paint
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	242831 Whirlpool Oven Wire
20	Paint, Spray 13 Oz. (Avocado)
20	paint, spray 13 oz. (coffee)
20	Paint, Touch-Up 1/2 Oz. (Coffee)
20	72109 Whirlpool Dacor Avocado Touch-Up Paint
20	285006 Whirlpool Spray
20	Wire, 25“ Roll (White 14 GA.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	WPL 799832
20	350930 Whirlpool White Spray Paint
