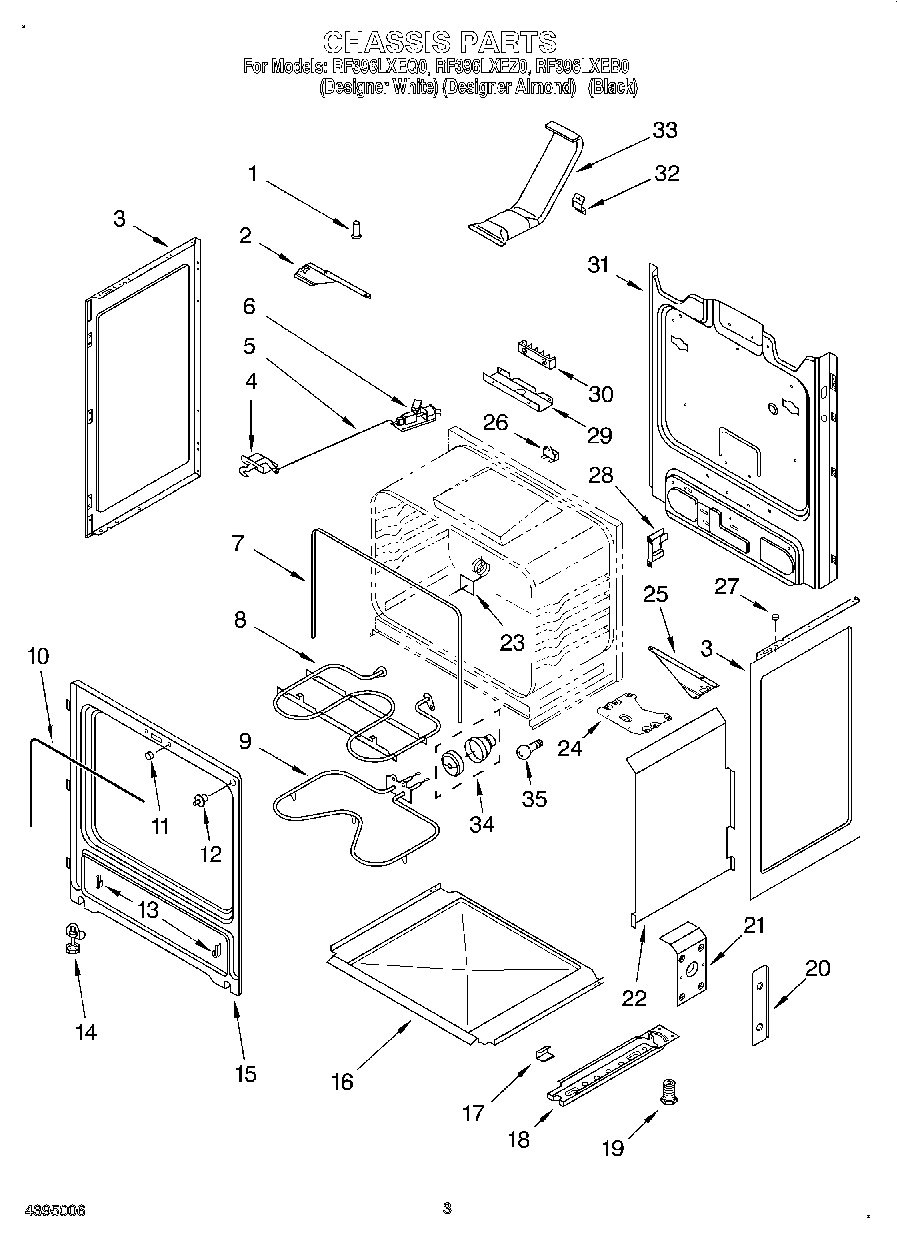

RF396LXEB0 03 – CHASSIS

Products

PositionProduct
1Tube, Oven Vent
2Support, Corner LR
3Panel, Side (2) (Almond)
3Panel, Side (2) (White)
3Panel, Side (2) (Black)
4WP9761013 Whirlpool Door Latch
4WP3400832 Whirlpool Screw
5Rod, Latch
6Solenoid Assy.
7Seal, Oven Flange
8W10856603 Whirlpool Broil Element
9WPW10308477 Whirlpool Bake Element
9WP3196174 Whirlpool Screw
10W11542153 Whirlpool Door Gasket
11W10877054 Whirlpool Spacer Assembly
12WP3196262 Whirlpool Light Switch
13WP3195546 Whirlpool Drawer Glide
14Screw
14WP3196037 Whirlpool Leveling Foot
15Frame, Front
16WP8054068 Whirlpool Retainer
17Clip, Panel (6)
18WPW10306546 Whirlpool Base Rail
19WPW10058460 Whirlpool Appliance Levelling Leg
20Shield, Outer (2)
21Shield, Inner (2)
21WP7101P246-60 Whirlpool Screw
22Retainer, Side (2)
23Sensor, Heat
24Support, Front (2)
25Support, Corner RR
26WP3196548 Whirlpool Thermal Fuse
263196172 Whirlpool Oven Screw
27238614 Whirlpool Bumper Hinge
28W10404688 Whirlpool Bracket Support
29W11728255 Whirlpool Service Bracket
30WP8203546 Whirlpool Terminal Block
30WP3196163 Whirlpool Screw
30WP112432 Whirlpool Nut Assembly
31Back, Main
31SCREW
32Bracket, Flue
32WP3196175 Whirlpool Screw
33WP489491 Whirlpool Refrigerator Screw
33WPW10134285 Whirlpool Vent Tube
34W11594027 Whirlpool Range Oven Light Socket
35WPW10208653 Whirlpool Insulation
35RANGE ONLY 40W 120V APPL BULB
35WP8272612 Whirlpool Insulation
35Insulation, Vent
