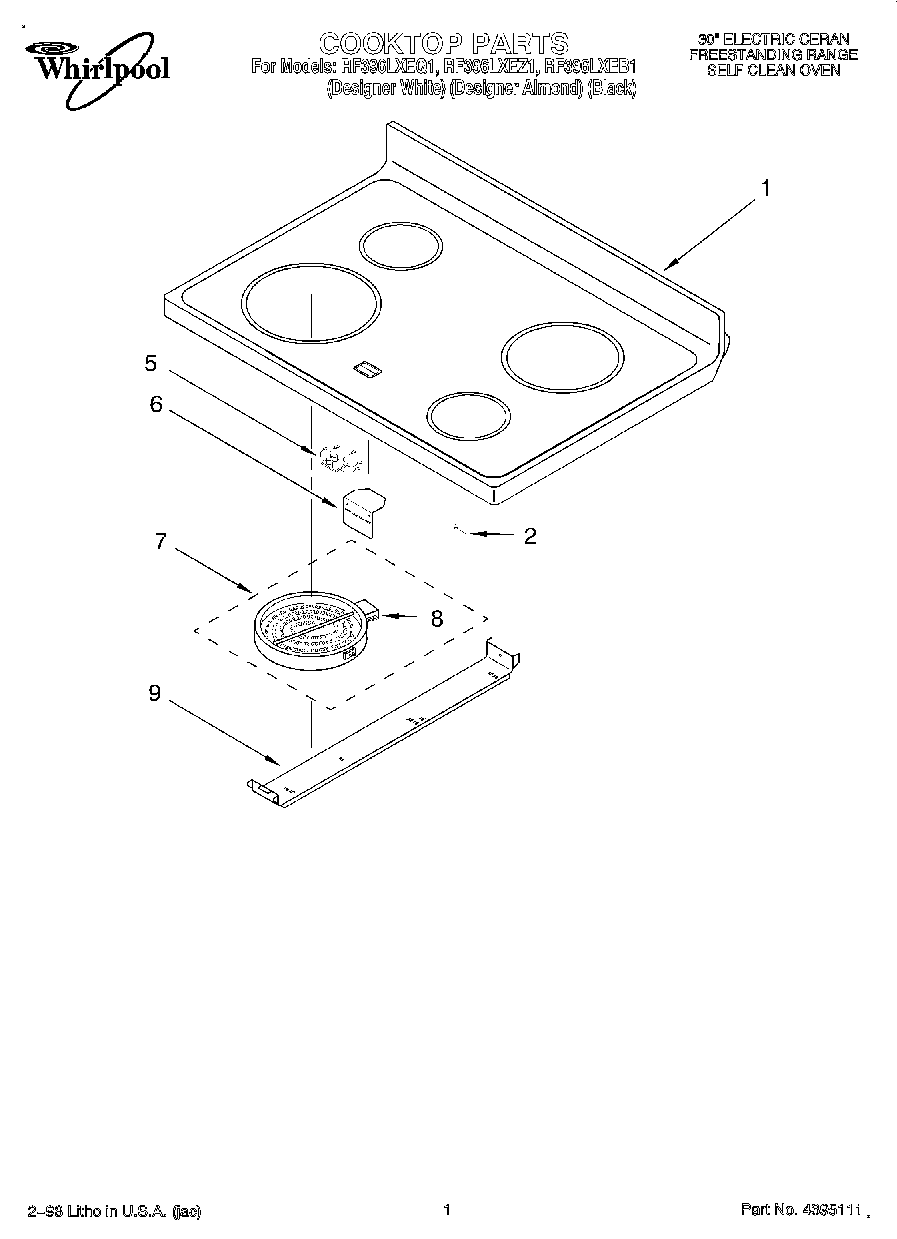

RF396LXEB1 01 – COOKTOP

Products

PositionProduct
1Cooktop (Black)
1Cooktop (Almond)
1Cooktop (White)
2Spring, Locator
2WP3196170 Whirlpool Screw
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7W10823711 Whirlpool Surface Element Left Front and Right Rear
72500W – RR
7W10823698 Whirlpool Surface Element Right Rear
8Limiter, Temp. (LR-RF-RR)
9Bracket, Element
9WP3196175 Whirlpool Screw
