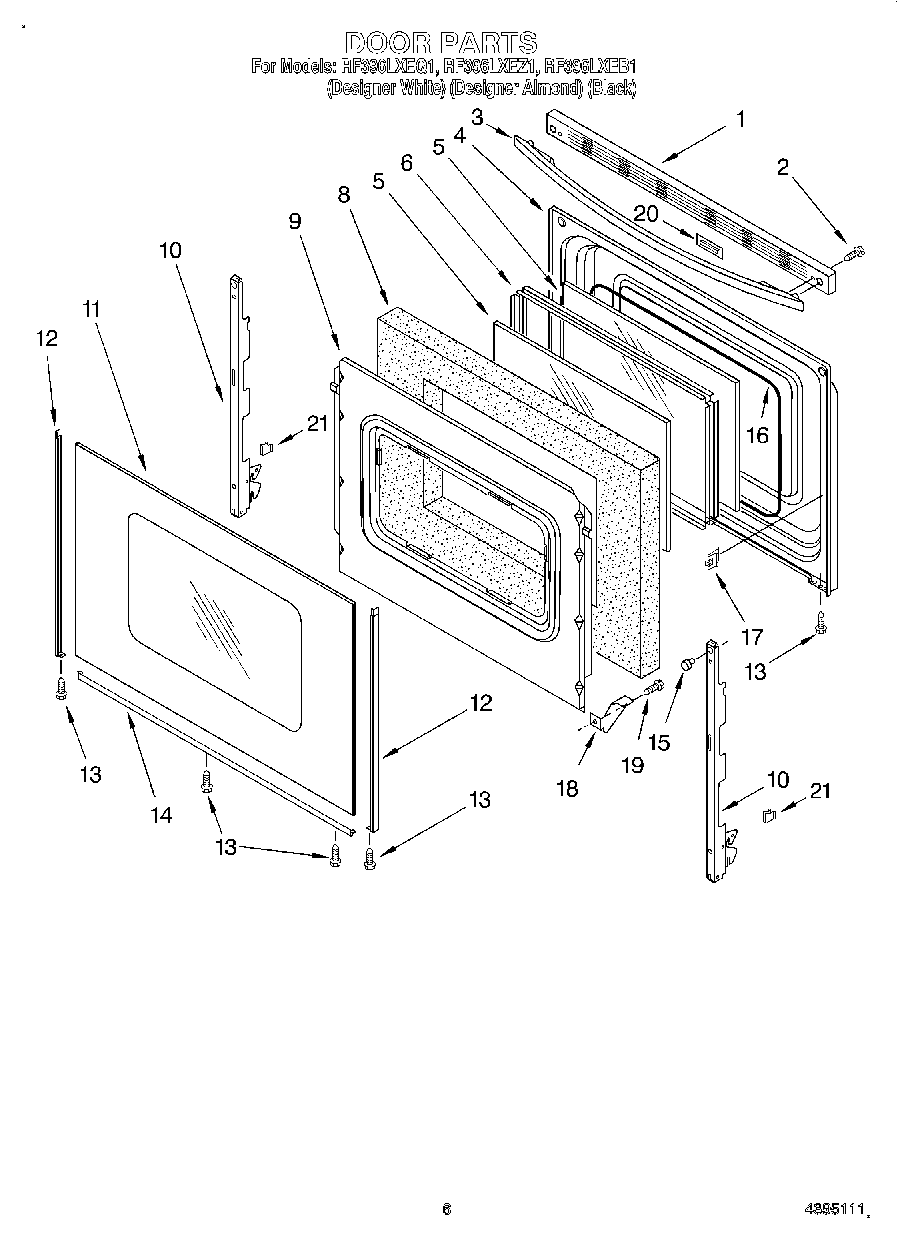

RF396LXEB1 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL 3195153
	814381 Whirlpool Pin
	WP3196154 Whirlpool Screw Assembly
	Literature (Installation, Instructions (Template))
	WPL LIT3195944
	3400964 Whirlpool Oven Clip
	Harness, Wire (Door Switch)
	WPL 8053721
	WPL LIT3196077
	WPL LIT3196279
	3184020 Whirlpool Oven Wire
	Safer Cooking Tips
	3196696 Whirlpool Clip
1	Trim, Top (Black)
1	Trim, Door Top (Almond)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Almond)
3	WPW10202217 Whirlpool Door Handle
3	WP179051 Whirlpool Screw
4	Liner, Door
5	WP8053948 Whirlpool Door Glass
6	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	Glass, Outer Door (Almond)
11	WP8053834 Whirlpool Door Glass
11	WPW10118455 Whirlpool Door Glass Assembly
13	W10491985 Whirlpool Screw
14	8184860 Whirlpool Oven Door Trim
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
14	8184858 Whirlpool Door Trim
15	238614 Whirlpool Bumper Hinge
16	Seal, Window
17	Clip, Glass (4)
18	WP3196794 Whirlpool Glass Bracket
19	WP3196175 Whirlpool Screw
20	WP3400832 Whirlpool Screw
20	Bracket, Latch
21	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
21	Grease
21	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
21	8212471 Whirlpool Oven Paint
21	Golden Harvest
21	1
21	Wire (14 Ga. 200 c Brown)
21	18 Ga. 80~c Rating (Red)
21	350930 Whirlpool White Spray Paint
21	WPL 799832
21	511873 Whirlpool Refrigerator Paint
21	350942 Whirlpool Spray Paint
21	WPL 72112
21	Platinum (Uncut)
21	Enamal, Toast (1 Qt. Uncut)
21	Paint, Spray (13 Oz.) (Platinum)
21	Toast
21	Golden Harvest (Uncut)
21	72113 Whirlpool Touch-Up Paint
21	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
21	Almond (Uncut)
21	WP72107 Whirlpool Touchup
21	799344 Whirlpool Refrigerator Paint
21	72017 Whirlpool Appliance Touch-Up Paint White
21	WPW10208653 Whirlpool Insulation
21	FOIL, ALUMINUM OVEN (18“ X 25 )
21	Wire (12 Ga. 150 c Black)
21	Wire (14 Ga. 150 c Yellow)
21	Wire (14 Ga. 150 c Orange)
21	Wire (14 Ga. 150 c Green)
21	Wire (14 Ga. 150 c Brown)
21	Wire (14 Ga. 150 c Blue)
21	242831 Whirlpool Oven Wire
21	WP3196925 Whirlpool Clip Assembly
21	Paint, Spray 13 Oz. (Avocado)
21	paint, spray 13 oz. (coffee)
21	Paint, Touch-Up 1/2 Oz. (Coffee)
21	72109 Whirlpool Dacor Avocado Touch-Up Paint
21	285006 Whirlpool Spray
21	Wire, 25“ Roll (White 14 GA.)
21	Wire, 25` Roll (Red 14 Ga.)
21	Wire, 25` Roll (Black 14 Ga.)
21	350956 Whirlpool Spray Assembly
