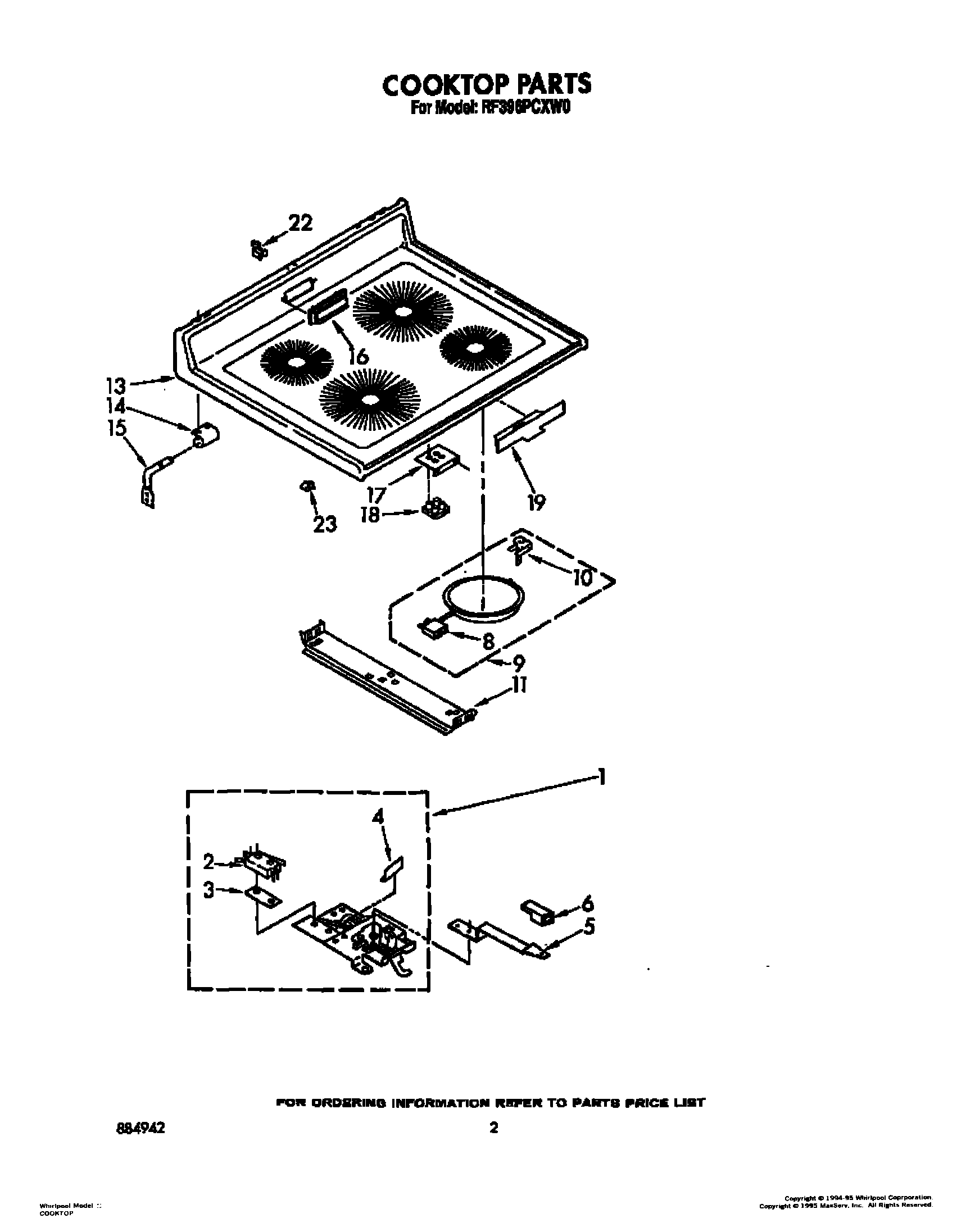

RF396PCXN0 02 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Guide, Use And Care
	Tech Sheet
	Instructions, Installation
	WPL LIT3150400
	WPL LIT3149507
1	Latch Assembly
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Screw
5	Handle, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
8	Limiter Temp. (8`` - RR)
8	Limiter, Temp. (250 mm (LF))
8	Limiter, Temp. (180 MM - LR)
8	Limiter, Temp. (200 MM - RF)
9	WP8185663 Whirlpool Surface Element
9	Element, Surface (Includes No. 1, No. 3) (230 MM - RR)
9	Element, Surface (Includes No. 1, No. 3) (200 MM - RF)
9	Element, Surface (Includes No. 1, No. 3) (180 MM - LR)
10	WP486754 Whirlpool Compactor Screw
10	Spring, Locator
11	Bracket, (2) Element Support
13	Cooktop (White)
13	cooktop (almond)
14	Bracket, Cooktop (2)
15	Pin, Cooktop (2)
15	SCREW
16	cover, vent (almond)
16	Cover, Vent (White)
17	Screw (2)
17	Bracket, Light
18	Light, Indicator
19	Shield, Probe
22	Clip, Vent Cover
23	Clip
