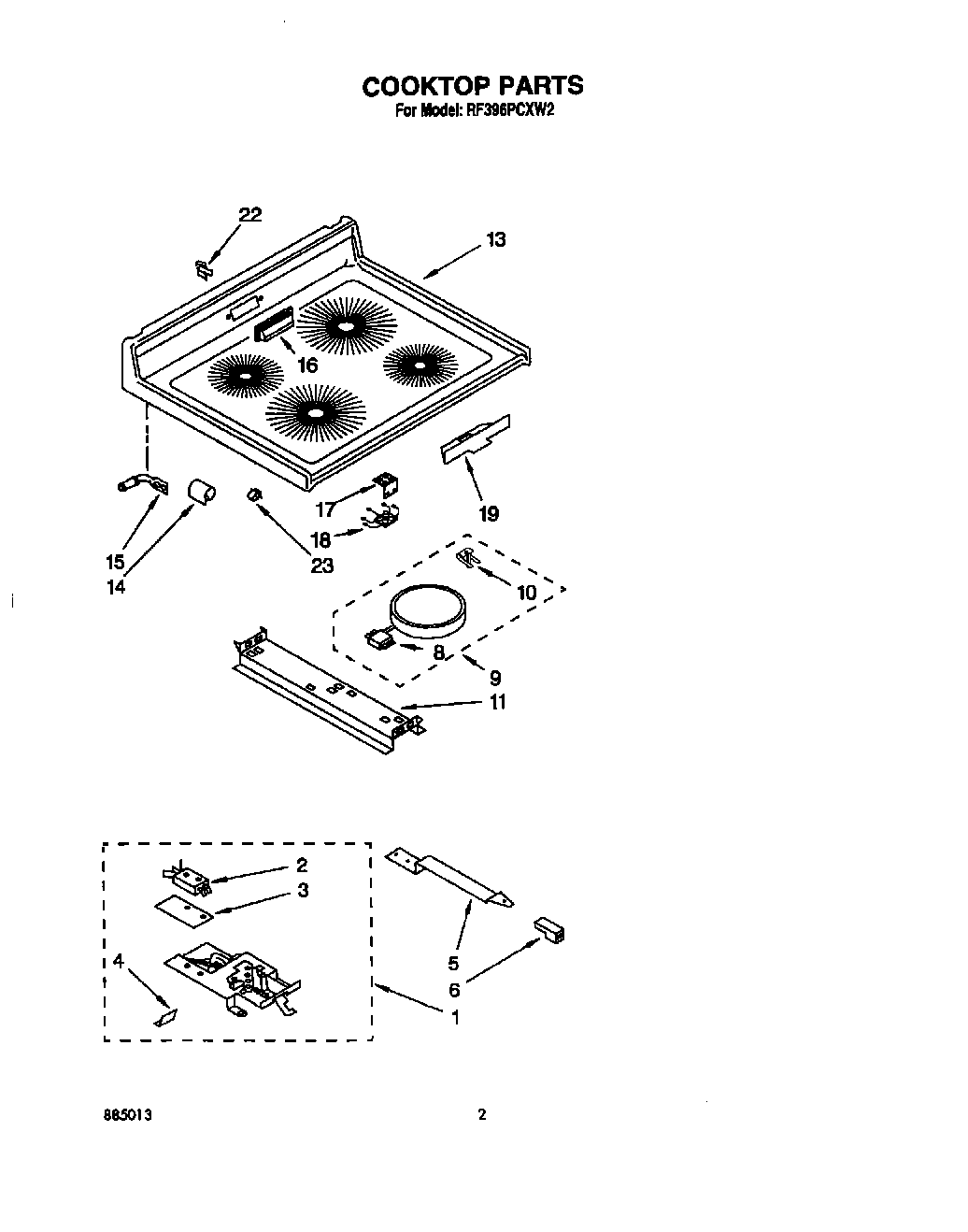

RF396PCXW2 02 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	Video, Ceran Cooktop
	WPL LIT3147395
	WPL LIT3149507
	Guide, Use And Care
	Tech Sheet
1	Latch Assembly
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Screw
5	Handle, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
8	Limiter, Temp. (180 MM – LR)
8	Limiter Temp. (8“ – RR)
8	Limiter, Temp. (200 MM – RF)
8	Limiter, Temp. (250 mm (LF))
9	Element, Surface (Includes No. 1, No. 3) (180 MM – LR)
9	Element, Surface (Includes No. 1, No. 3) (200 MM – RF)
9	Element, Surface (Includes No. 1, No. 3) (230 MM – RR)
9	WP8185663 Whirlpool Surface Element
10	WP486754 Whirlpool Compactor Screw
10	Spring, Locator
11	Bracket, (2) Element Support
13	Cooktop (White)
13	cooktop (almond)
14	Bracket, Cooktop (2)
15	Pin, Cooktop (2)
15	SCREW
16	Cover, Vent (White)
16	cover, vent (almond)
17	Screw (2)
17	Bracket, Light
18	Light, Indicator
19	Shield, Probe
22	Clip, Vent Cover
23	Clip
