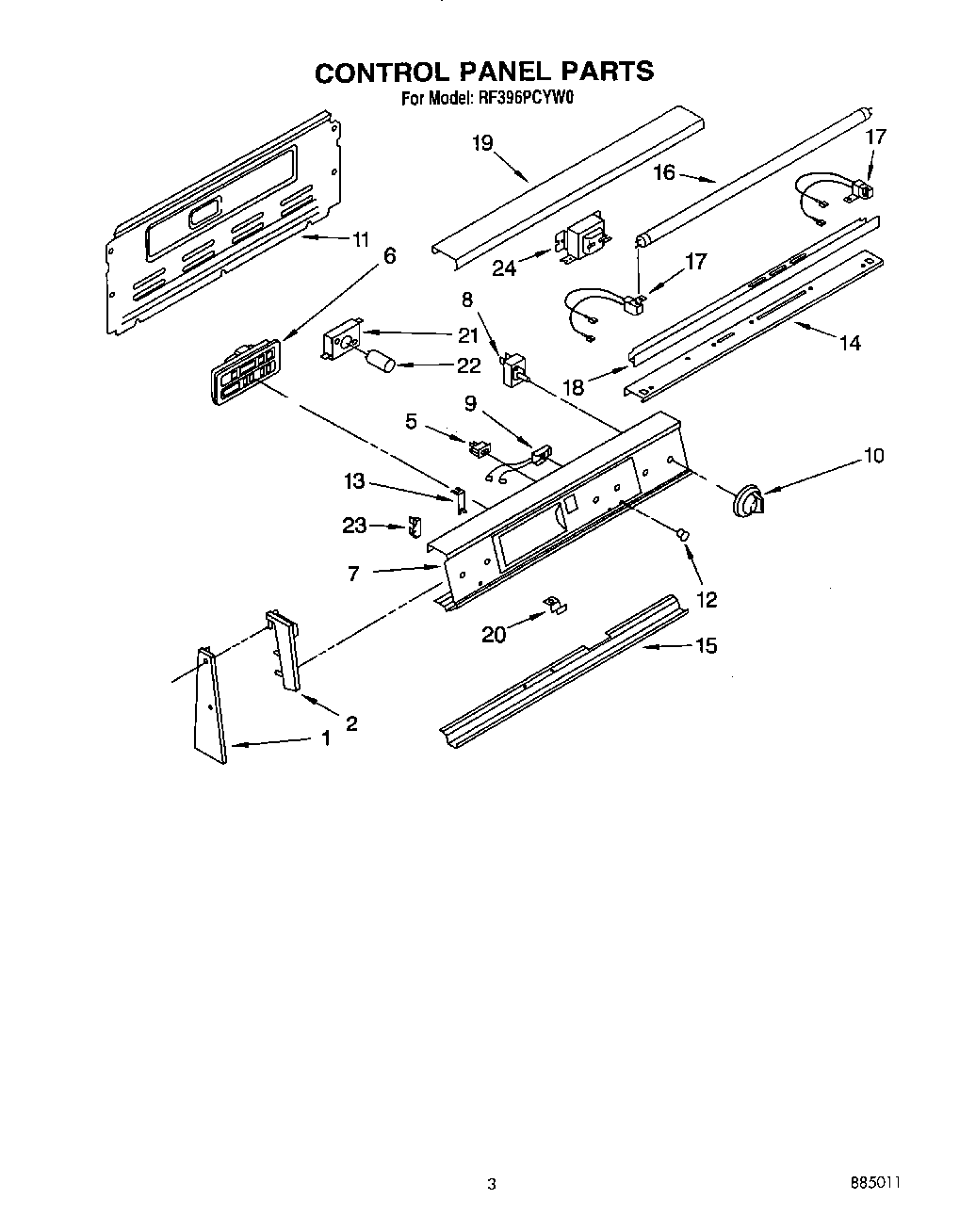

RF396PCYN0 03 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×7/16“
1Screw 10-32×1“
2W11693756 Whirlpool Screw Assembly
2End Cap R.H.
2End Cap L.H.
5Switch, Rocker
6WP965173 Whirlpool Dishwasher Screw
6Control, Electronic (Black)
7Panel, Control
8WP3148952 Whirlpool Oven Infinite Switch
8WP3148955 Whirlpool Infinite Switch
8WP486579 Whirlpool Air Conditioner Screw
9Light, Indicator (Surface Unit (2))
10Knob, (4) Infinite Switch (White/Almond/Gold)
11Harness-Conduit Asm.
11SCREW
12Lens, Amber
13Bracket, Support ERC
14Trim, Top Socket
15Bottom Trim
16Lamp, Fluorescent
17WP313808 Whirlpool Screw
17Socket, Lamp (Light RH)
17Socket, Lamp (Light LH)
18Backguard, Lamp
19Cover, Lamp
20Bracket, Support Wedge
21Socket, Flourscent
22Starter, Lamp
23WP3196548 Whirlpool Thermal Fuse
24Ballast
