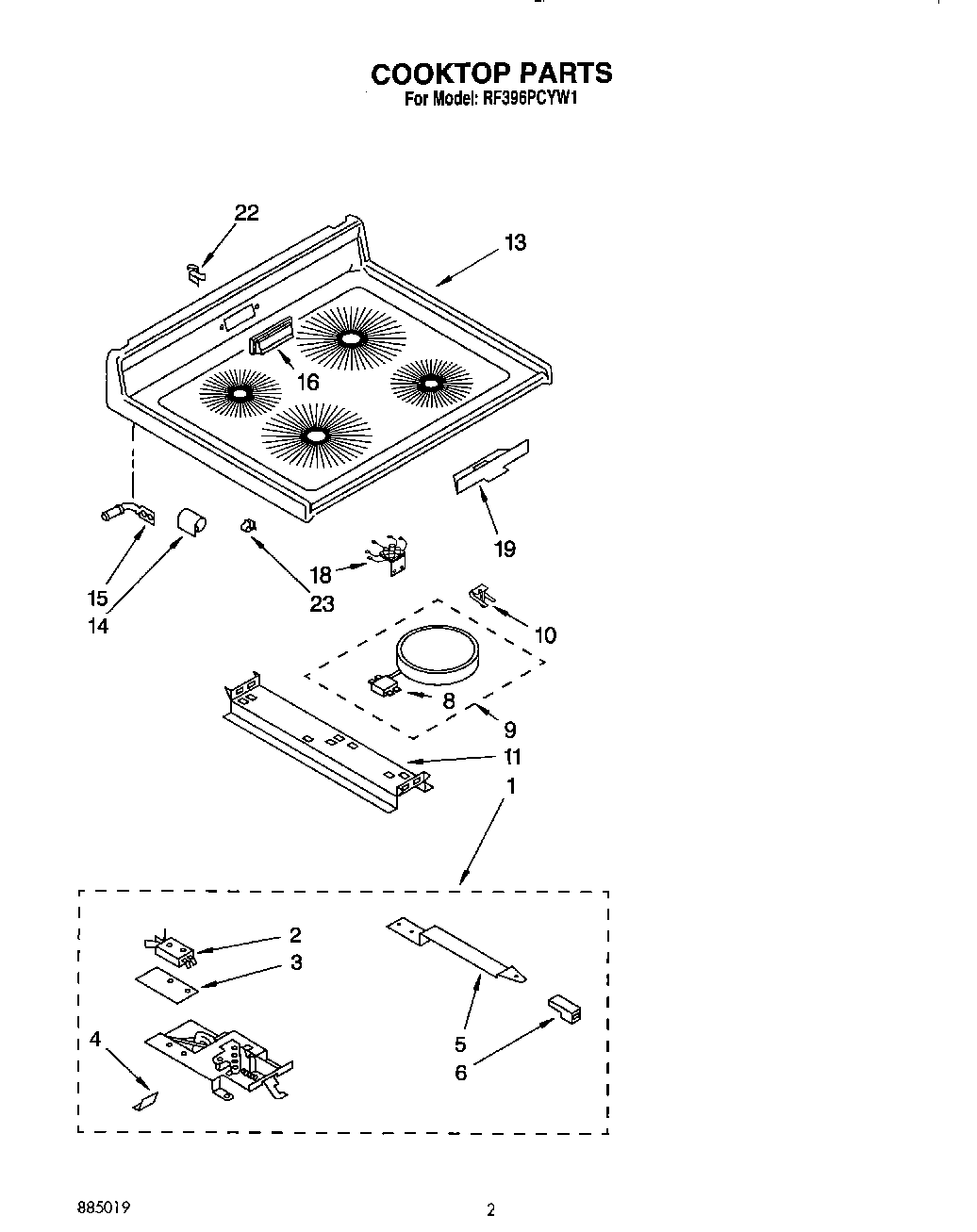

RF396PCYN1 02 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	Use and Care Guide
	WPL 677973
	Video, Ceran Cooktop
	Repair Parts List
	WPL LIT3147395
	Tech Sheet
1	Latch Asm Complete W/Wire Harness (White/Almond)
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Screw
5	Handle, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
8	Limiter Temp. (7“ – RF)
8	Limiter, Temperature (Use W/3183649 Element)
8	Limiter, Temperature (Use W/3183648 Element)
8	Limiter, Temp. (6“ L.R.)
9	Element, Surface (2100W Right Rear)
9	Element, Surface (1700W Right Front)
9	WP8185663 Whirlpool Surface Element
9	Element, Surface (1400W Left Rear)
10	Spring, Locator
10	WP486754 Whirlpool Compactor Screw
11	Bracket, (2) Element Support
13	Cooktop (Almond)
13	Cooktop (White)
14	Bracket, Cooktop (2)
15	SCREW
15	Pin, Cooktop (2)
16	cover, vent (almond)
16	Cover, Vent (White)
18	Hot Light Assembly
18	Screw (2)
19	Shield, Probe
22	Clip, Vent Cover
23	Clip
