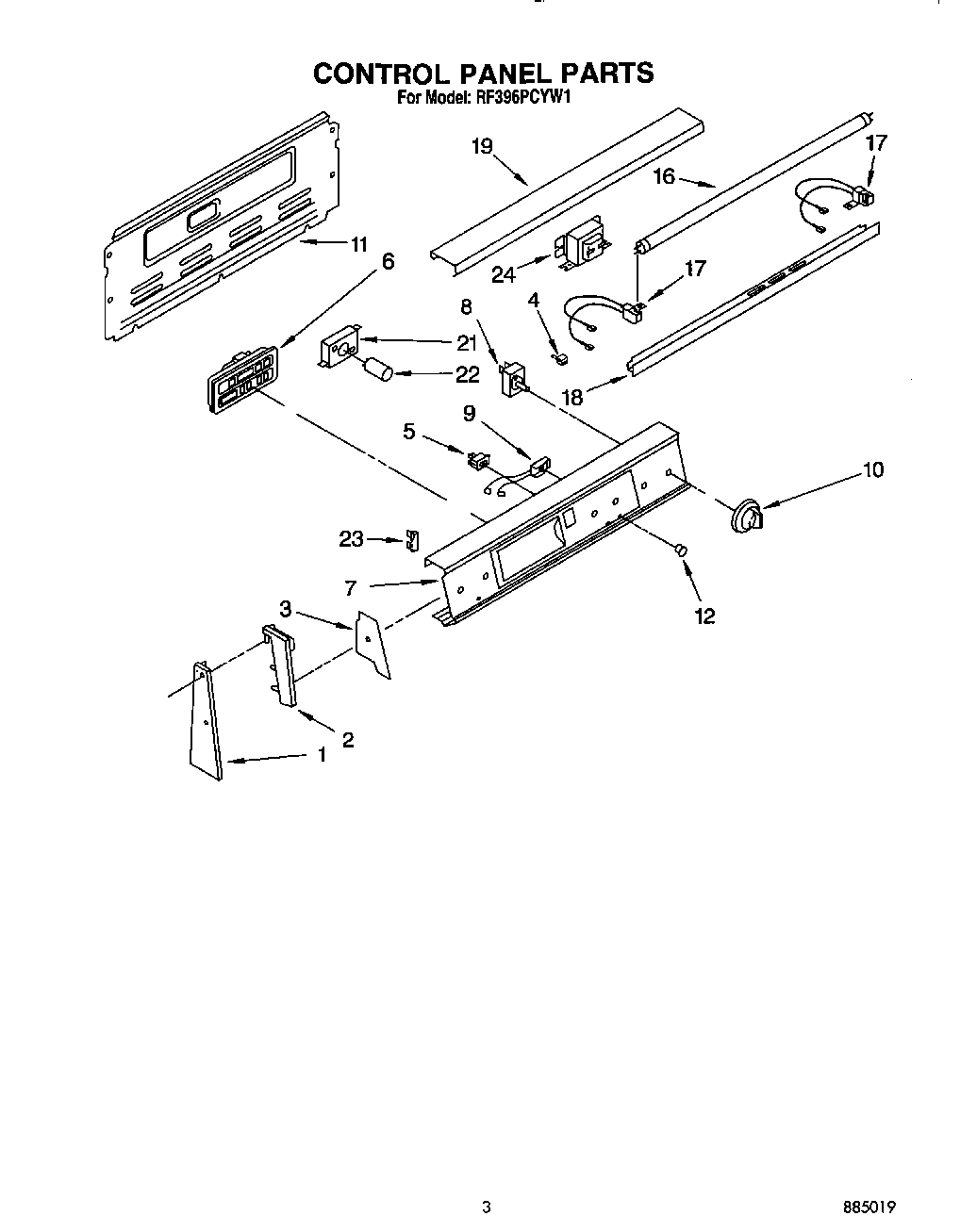

RF396PCYN1 03 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×7/16“
1Screw 10-32×1“
2End Cap L.H.
2End Cap R.H.
2Screw,
3Shield (2)
4Adapter, Terminal
5Switch, Rocker
6WP965173 Whirlpool Dishwasher Screw
6Control, Electronic (Black)
7Panel, Control
8WP3148952 Whirlpool Oven Infinite Switch
8WP486579 Whirlpool Air Conditioner Screw
8WP3148955 Whirlpool Infinite Switch
9Light, Indicator (Surface Unit (2))
10Knob, (4) Infinite Switch (White/Almond/Gold)
11SCREW
11Harness-Conduit Asm.
12Lens, Amber
16Lamp, Fluorescent
17WP313808 Whirlpool Screw
17Socket, Lamp (Light RH)
17Socket, Lamp (Light LH)
18Backguard, Lamp
19Cover, Lamp
21Socket, Flourscent
22Starter, Lamp
23WP3196548 Whirlpool Thermal Fuse
24Ballast
