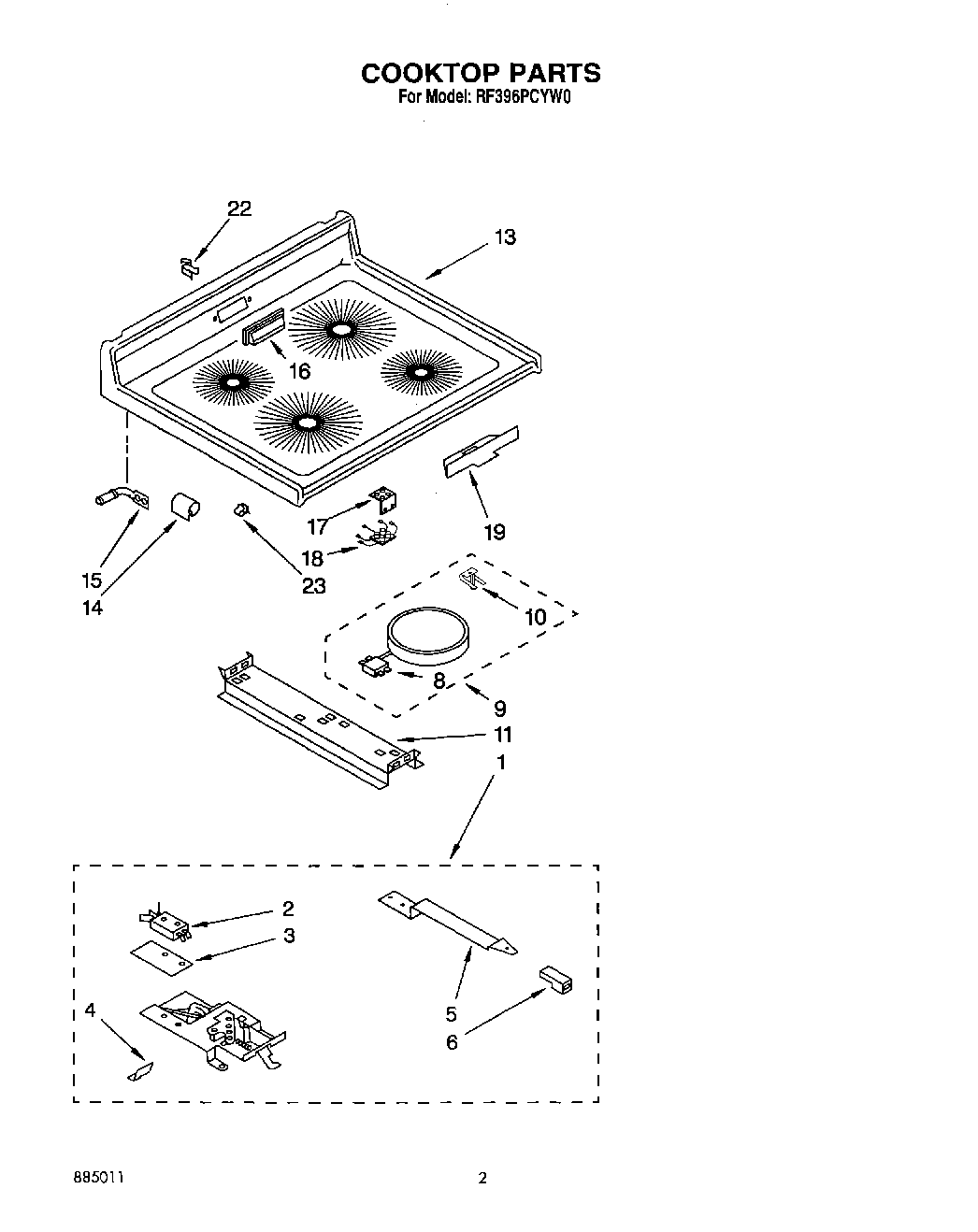

RF396PCYW0 02 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	Tech Sheet
	WPL LIT3147395
	Repair Parts List
	Use and Care Guide
	Video, Ceran Cooktop
1	Latch Asm Complete W/Wire Harness (White/Almond)
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Screw
5	Handle, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
8	Limiter, Temperature (Use W/3183648 Element)
8	Limiter, Temperature (Use W/3183649 Element)
8	Limiter Temp. (7“ – RF)
8	Limiter, Temp. (6“ L.R.)
9	Element, Surface (Includes No.1) (230 MM – (2))
9	Element, Surface (Includes No.1) (200 MM – (2))
9	WP8185663 Whirlpool Surface Element
9	Element, Surface (Includes No.8) (180 MM – LR)
10	Spring, Locator
10	WP486754 Whirlpool Compactor Screw
11	Bracket, (2) Element Support
13	Cooktop (Almond)
13	Cooktop (White)
14	Bracket, Cooktop (2)
15	SCREW
15	Pin, Cooktop (2)
16	Cover, Vent (White)
16	cover, vent (almond)
17	Bracket, Light
17	Screw (2)
18	Light, Indicator
19	Shield, Probe
22	Clip, Vent Cover
23	Clip
