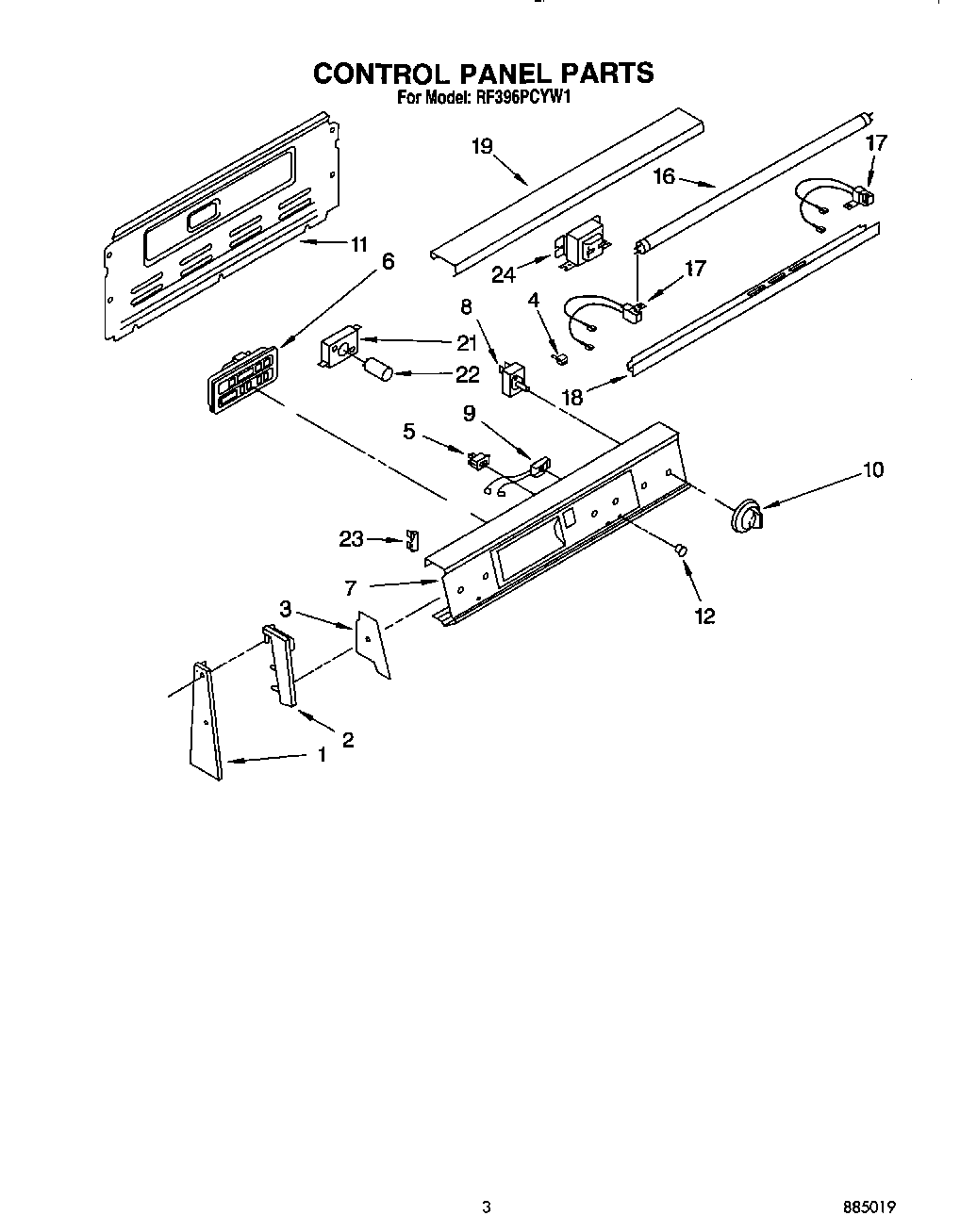

RF396PCYW1 03 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
3	Shield (2)
4	Adapter, Terminal
5	Switch, Rocker
6	WP965173 Whirlpool Dishwasher Screw
6	Control, Electronic (Black)
7	Panel, Control
8	WP3148952 Whirlpool Oven Infinite Switch
8	WP486579 Whirlpool Air Conditioner Screw
8	WP3148955 Whirlpool Infinite Switch
9	Light, Indicator (Surface Unit (2))
10	Knob, (4) Infinite Switch (White/Almond/Gold)
11	SCREW
11	Harness-Conduit Asm.
12	Lens, Amber
16	Lamp, Fluorescent
17	WP313808 Whirlpool Screw
17	Socket, Lamp (Light RH)
17	Socket, Lamp (Light LH)
18	Backguard, Lamp
19	Cover, Lamp
21	Socket, Flourscent
22	Starter, Lamp
23	WP3196548 Whirlpool Thermal Fuse
24	Ballast
