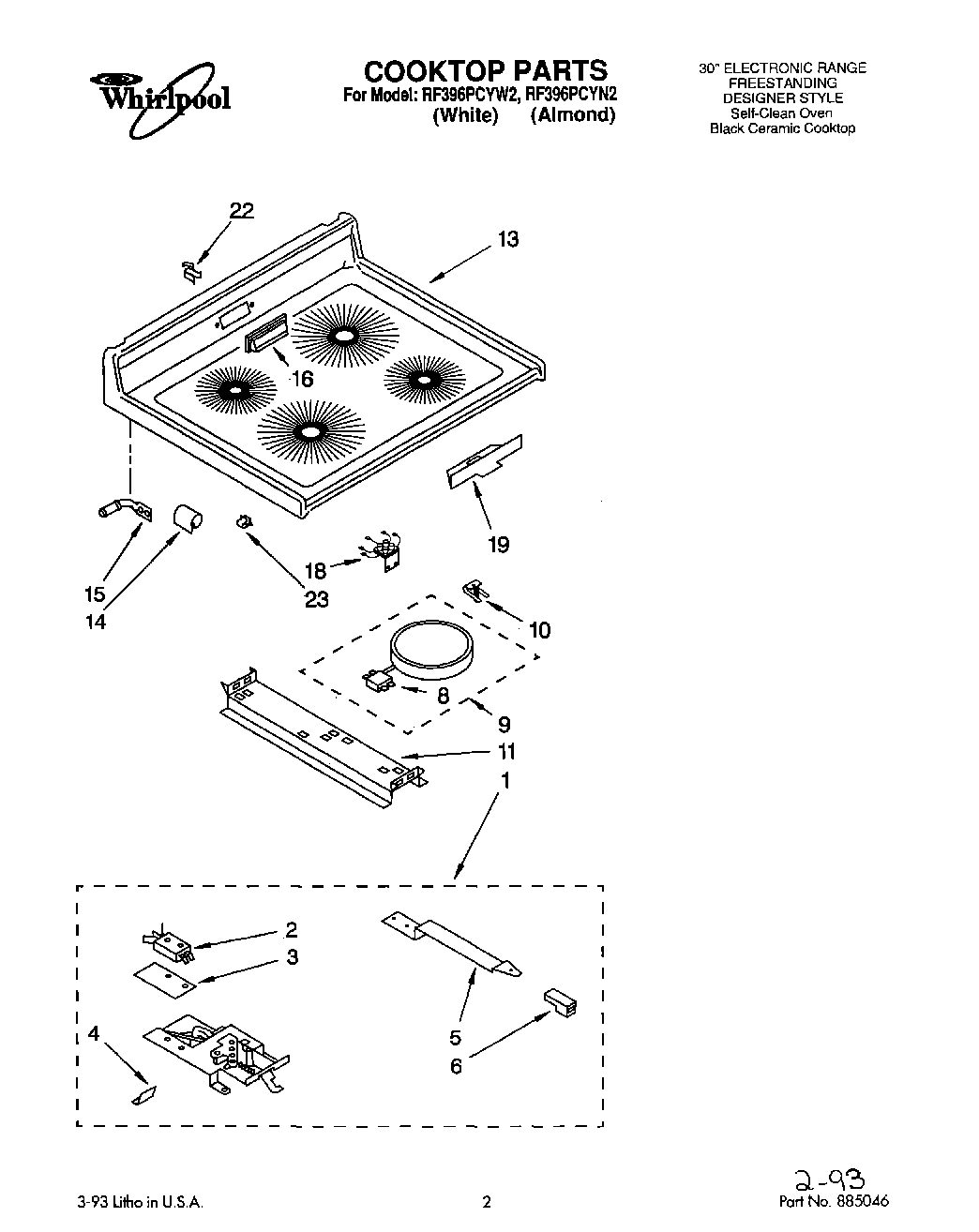

RF396PCYW2 01 – COOKTOP

Products

Position	Product
1	Latch Asm Complete W/Wire Harness (White/Almond)
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Handle, Latch
5	Screw
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
8	Limiter, Temp. (6“ L.R.)
8	Limiter Temp. (7“ – RF)
8	Limiter, Temperature (Use W/3183648 Element)
8	Limiter, Temperature (Use W/3183649 Element)
9	Element, Surface (2100W Right Rear)
9	Element, Surface (1700W Right Front)
9	Element, Surface (1400W Left Rear)
9	WP8185663 Whirlpool Surface Element
10	WP486754 Whirlpool Compactor Screw
10	Spring, Locator
11	Bracket, (2) Element Support
13	Cooktop (Almond)
13	Cooktop (White)
14	Bracket, Cooktop (2)
15	SCREW
15	Pin, Cooktop (2)
16	cover, vent (almond)
16	Cover, Vent (White)
18	Hot Light Assembly
18	Screw (2)
19	Shield, Probe
22	Clip, Vent Cover
23	Clip
