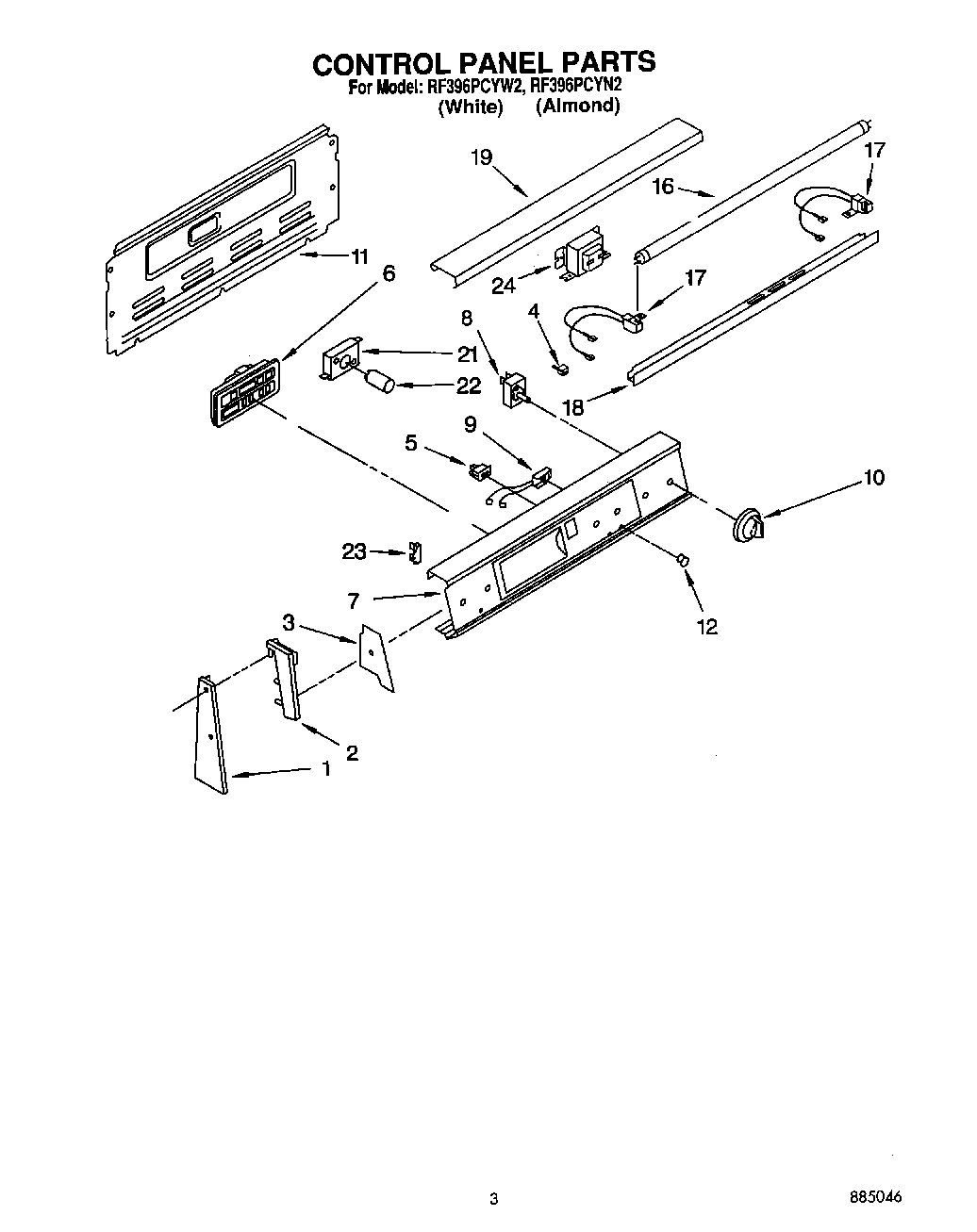

RF396PCYW2 02 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×1“
1Screw 10-32×7/16“
2End Cap L.H.
2End Cap R.H.
2Screw,
3Shield (2)
4Adapter, Terminal
5Switch, Rocker
6Control, Electronic (Black)
6WP965173 Whirlpool Dishwasher Screw
7Panel, Control
8WP3148952 Whirlpool Oven Infinite Switch
8WP3148955 Whirlpool Infinite Switch
8WP486579 Whirlpool Air Conditioner Screw
9Light, Indicator (Surface Unit (2))
10Knob, (4) Infinite Switch (White/Almond/Gold)
11Harness-Conduit Asm.
11SCREW
12Lens, Amber
16Lamp, Fluorescent
17Screw, 6-32 x 9/32 (4)
17Socket, Lamp (Light RH)
17Socket, Lamp (Light LH)
18Backguard, Lamp
19Cover, Lamp
21Socket, Flourscent
22Starter, Lamp
23WP3196548 Whirlpool Thermal Fuse
24Ballast
