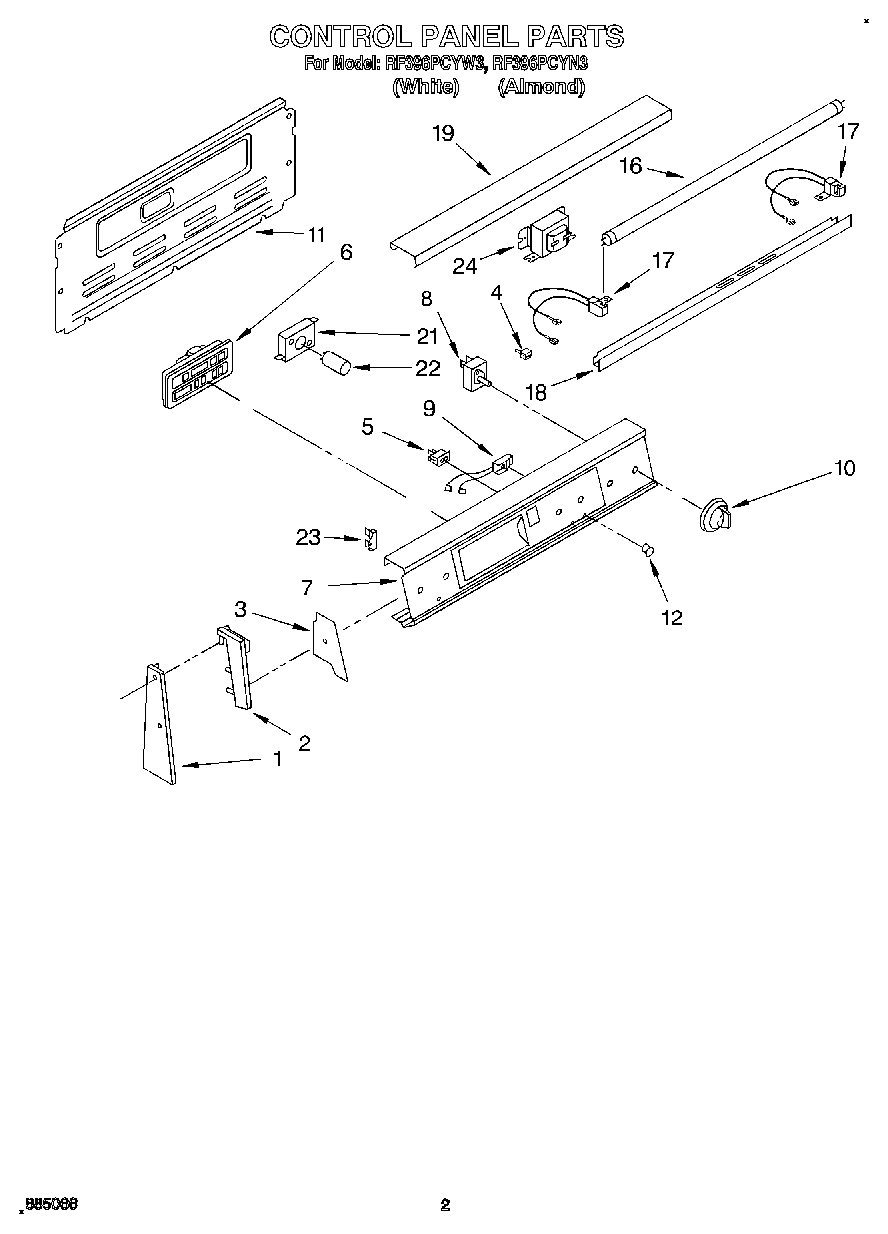

RF396PCYW3 02 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap L.H.
2	Screw,
2	End Cap R.H.
3	Shield (2)
4	Adapter, Terminal
5	Switch, Rocker
6	WP965173 Whirlpool Dishwasher Screw
6	Control, Electronic (Black)
7	Panel, Control
8	Screw, 8-32 x 3/16 (2)
8	WP3148952 Whirlpool Oven Infinite Switch
8	WP3148955 Whirlpool Infinite Switch
9	Light, Indicator (Surface Unit (2))
10	Knob, (4) Infinite Switch (White/Almond/Gold)
11	Rear Cover Contr
11	SCREW
12	Lens, Amber
16	Lamp, Fluorescent
17	Screw, 6-32 x 9/32 (4)
17	Socket, Lamp (Light RH)
17	Socket, Lamp (Light LH)
18	Backguard, Lamp
19	Cover, Lamp
21	Socket, Flourscent
22	Starter, Lamp
23	WP3196548 Whirlpool Thermal Fuse
24	Ballast
