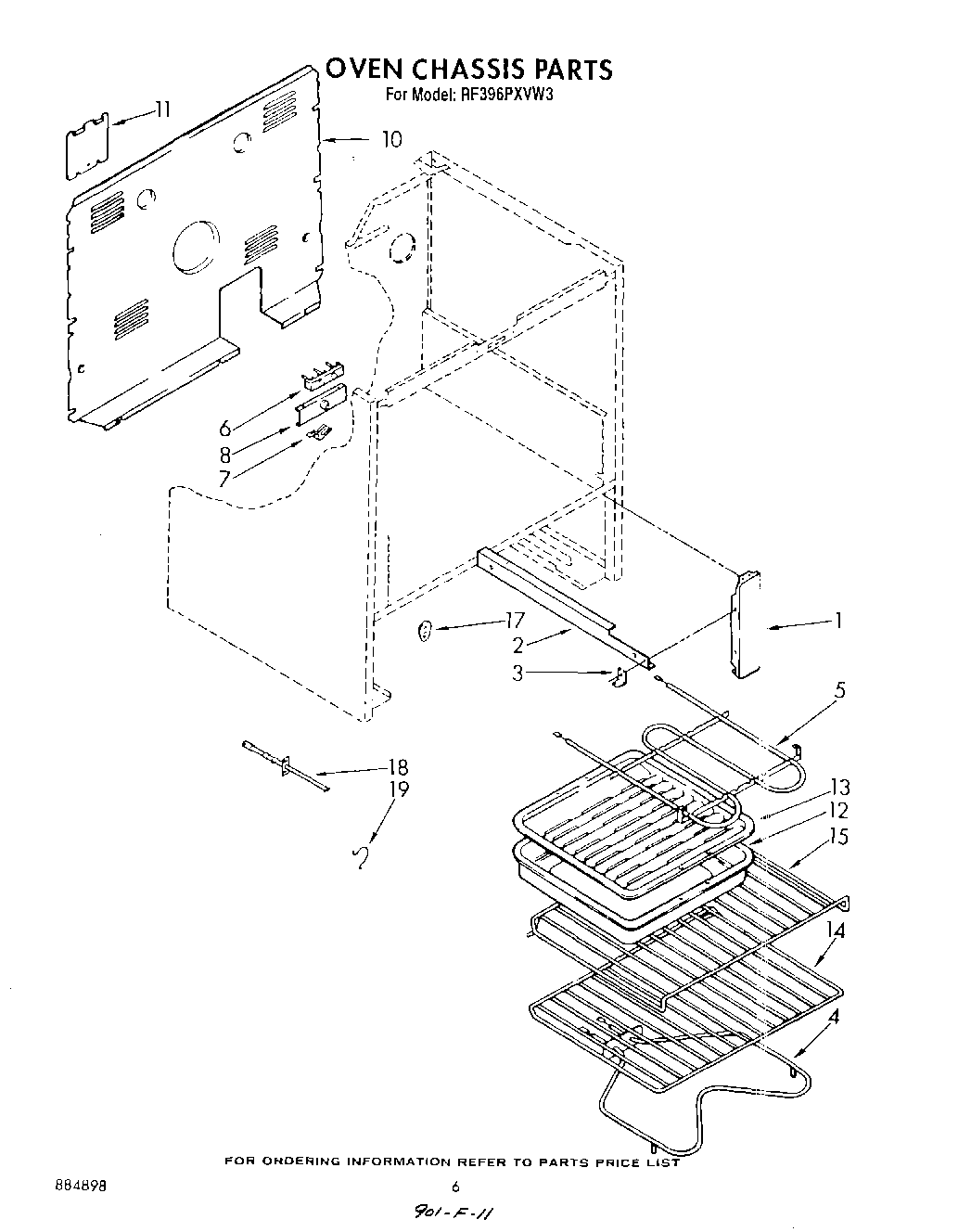

RF396PXVN3 05 – OVEN CHASSIS , LIT/OPTIONAL

RF396PXVN3 05 – OVEN CHASSIS , LIT/OPTIONAL

Written by

in

RF396PXVN3 05 – OVEN CHASSIS , LIT/OPTIONAL

Products

PositionProduct
511873 Whirlpool Refrigerator Paint
Screw (2)
1Bracket, Mounting (2)
2Rail R.H. (Includes Illus. 3)
2Rail L.H. (Includes Illus. 3)
3Glide, Front (2)
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6WP8203546 Whirlpool Terminal Block
6Screw, (2) 10-16 x 1
6WP112432 Whirlpool Nut Assembly
7WPL 308498
7Clip, Ground Wire
10Cover, Rear
11Bracket, Service
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
15WPL 308172
17WPL 311982
17Screw, 10A x 1/2 (2) (Black)
18Sensor, Heat
18SCREW
19Wire (12 Ga. 150 c Black)
19Wire (14 Ga. 200 c Brown)
19Enamel, Coffee (1 Qt. Uncut)
19Grease
19242831 Whirlpool Oven Wire
19Wire (14 Ga. 150 c Blue)
19Wire (14 Ga. 150 c Brown)
19Wire (14 Ga. 150 c Green)
19Leveler (Thinner) (2oz.)
19Wire (14 Ga. 150 c Orange)
1918 Ga. 80~c Rating (Red)
198212471 Whirlpool Oven Paint
19Wire (14 Ga. 150 c Yellow)
191
1916515 Whirlpool Clip
19Enamal, Toast (1 Qt. Uncut)
19Paint, Spray (13 Oz.) (Platinum)
19Toast
19Golden Harvest (Uncut)
19Golden Harvest
19350930 Whirlpool White Spray Paint
1972113 Whirlpool Touch-Up Paint
1972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19Almond (Uncut)
19WP72107 Whirlpool Touchup
19799344 Whirlpool Refrigerator Paint
1972017 Whirlpool Appliance Touch-Up Paint White
19Platinum (Uncut)
19WPL 72112
19350942 Whirlpool Spray Paint
19Wire, 25` Roll (Red 14 Ga.)
19W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
19Paint, Spray 13 Oz. (Avocado)
19paint, spray 13 oz. (coffee)
19Paint, Touch-Up 1/2 Oz. (Coffee)
1972109 Whirlpool Dacor Avocado Touch-Up Paint
19285006 Whirlpool Spray
19Wire, 25“ Roll (White 14 GA.)
19Wire, 25` Roll (Black 14 Ga.)
19FOIL, ALUMINUM OVEN (18“ X 25 )
19WPW10208653 Whirlpool Insulation
19WPL 799832
19350956 Whirlpool Spray Assembly
