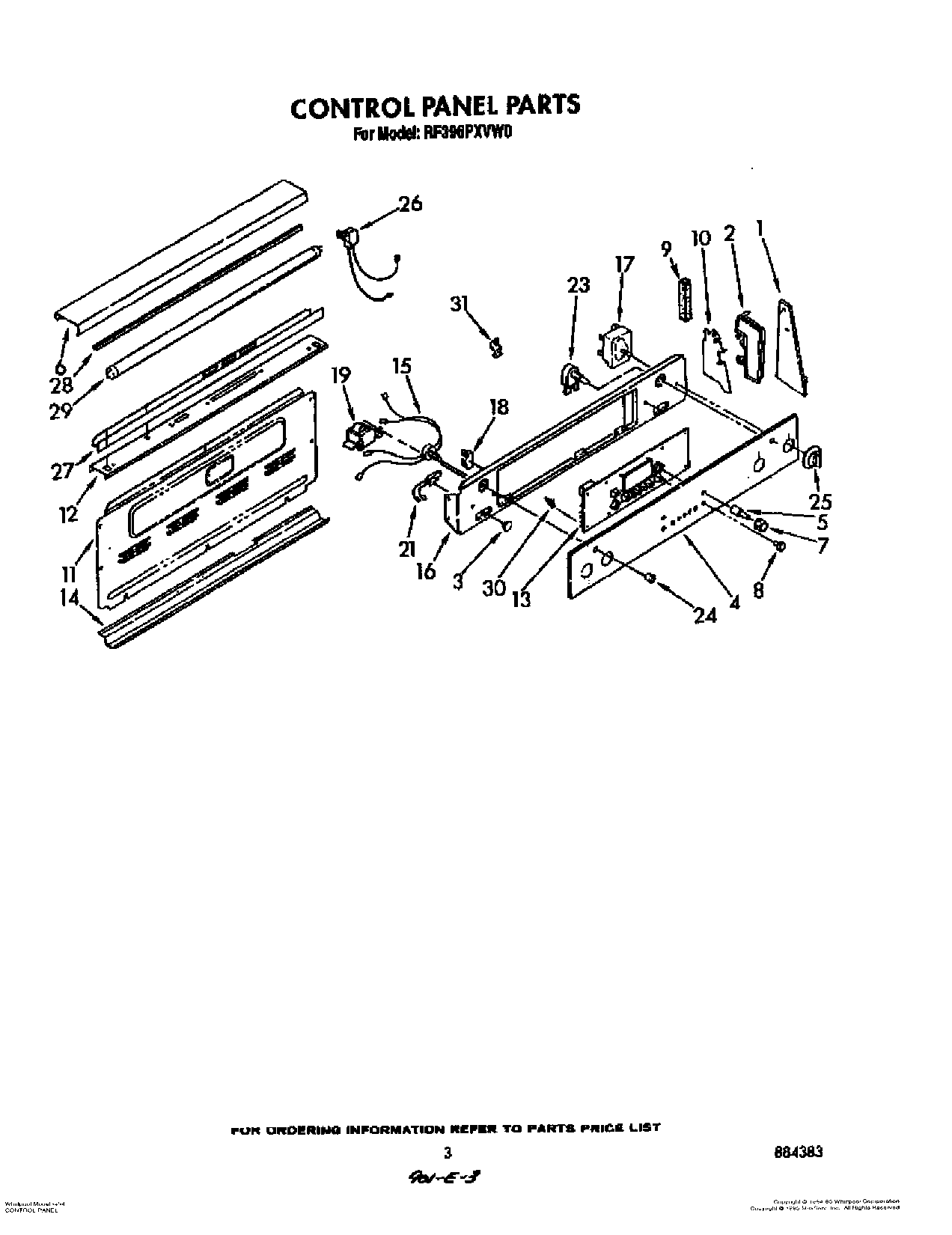

RF396PXVW0 03 – CONTROL PANEL

Products

Position	Product
1	Washer
1	End Trim L.H.
2	End Cap R.H.
2	End Cap L.H.
3	Lens (4)
4	Glass, Panel
5	Shaft, Bit Generator
6	Cover, Trim
7	Knob, Bit Generator (Black)
8	WPL 313958
9	Seal, Foam (4)
10	Shield, Glass (2)
11	Harness-Conduit Asm.
12	Trim, Top
12	WP313808 Whirlpool Screw
13	Control, Timer
14	Screw,
14	Bottom Trim
15	Switch, Fluorescent Light
16	Bracket, Control Panel
17	WP486579 Whirlpool Air Conditioner Screw
17	Adapter, Terminal
17	W10900107 Whirlpool Oven Surface Element Switch
18	WP3196548 Whirlpool Thermal Fuse
19	Ballast
21	Light, Indicator (Locked)
21	Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
23	Switch, Oven Light
23	Lockwasher
23	nut, 3/8 x 27
24	Bezel Switch (1)
25	Knob, Control (4)
25	SCREW
26	Socket, Light R.H.
26	Socket, Light L.H.
27	Backguard, Lamp
28	Protector, Lamp
29	Lamp, Fluorescent
30	WPL 313087
31	Support, Wedge
31	WP965173 Whirlpool Dishwasher Screw
