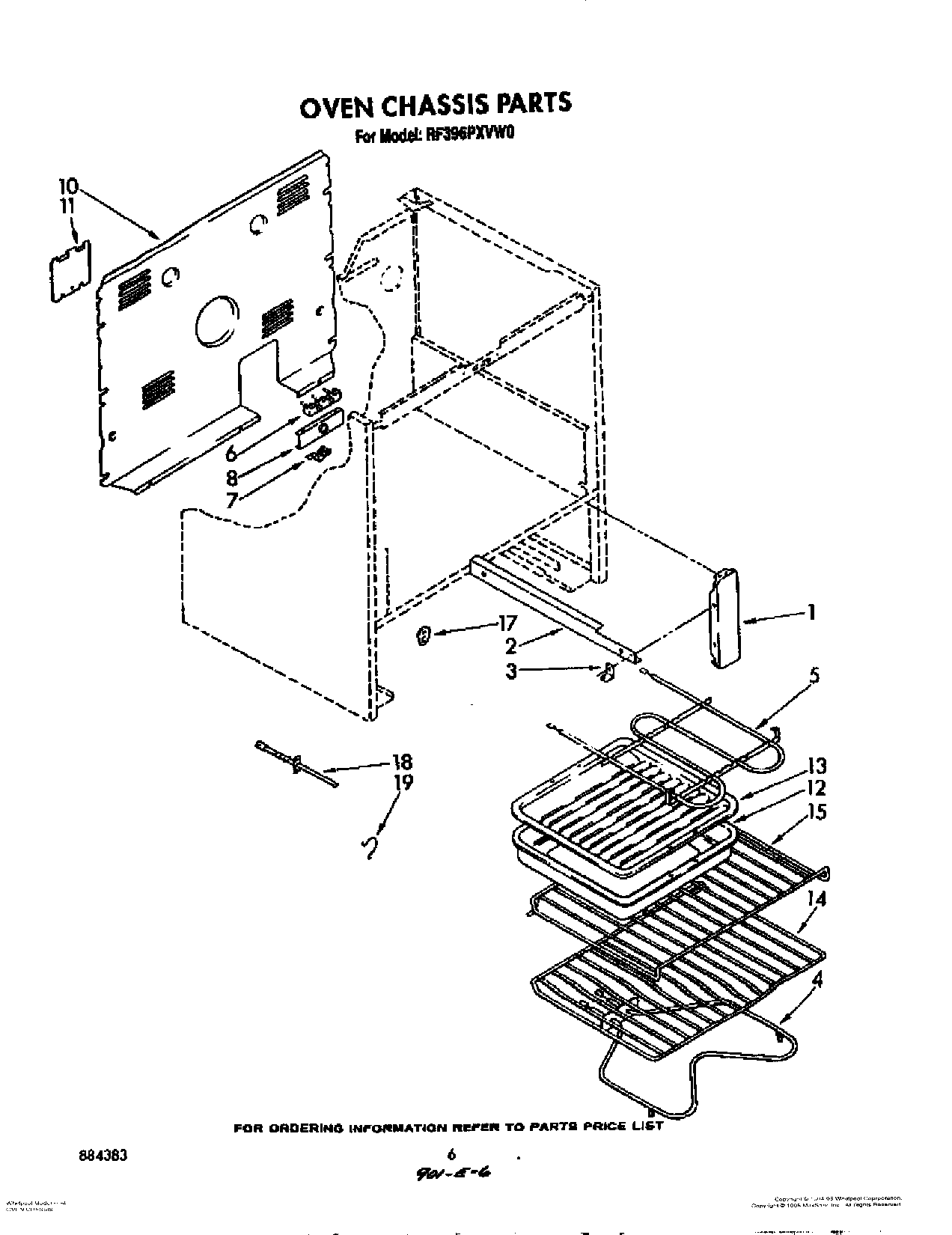

RF396PXVW0 05 – OVEN CHASSIS, OPTIONAL

RF396PXVW0 05 – OVEN CHASSIS, OPTIONAL

Written by

in

RF396PXVW0 05 – OVEN CHASSIS, OPTIONAL

Products

Position	Product
	511873 Whirlpool Refrigerator Paint
	WPL 312318
1	Bracket, Mounting (2)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	Screw, 10A x 1/2 (2) (Black)
17	WPL 311982
18	SCREW
18	Sensor, Heat
19	1
19	Enamel, Coffee (1 Qt. Uncut)
19	WP308605 Whirlpool Refrigerator Clamp
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Green)
19	Wire, 25` Roll (Red 14 Ga.)
19	Wire (14 Ga. 150 c Orange)
19	Grease
19	Wire (14 Ga. 150 c Yellow)
19	Wire (12 Ga. 150 c Black)
19	18 Ga. 80~c Rating (Red)
19	8212471 Whirlpool Oven Paint
19	Wire (14 Ga. 200 c Brown)
19	Leveler (Thinner) (2oz.)
19	Wire (14 Ga. 150 c Blue)
19	242831 Whirlpool Oven Wire
19	Platinum (Uncut)
19	Enamal, Toast (1 Qt. Uncut)
19	Paint, Spray (13 Oz.) (Platinum)
19	Toast
19	Golden Harvest (Uncut)
19	Golden Harvest
19	72113 Whirlpool Touch-Up Paint
19	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	WP965173 Whirlpool Dishwasher Screw
19	WPL 72112
19	350942 Whirlpool Spray Paint
19	350930 Whirlpool White Spray Paint
19	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
19	Paint, Spray 13 Oz. (Avocado)
19	paint, spray 13 oz. (coffee)
19	Paint, Touch-Up 1/2 Oz. (Coffee)
19	72109 Whirlpool Dacor Avocado Touch-Up Paint
19	285006 Whirlpool Spray
19	Wire, 25“ Roll (White 14 GA.)
19	Wire, 25` Roll (Black 14 Ga.)
19	FOIL, ALUMINUM OVEN (18“ X 25 )
19	WPW10208653 Whirlpool Insulation
19	WPL 799832
19	350956 Whirlpool Spray Assembly
