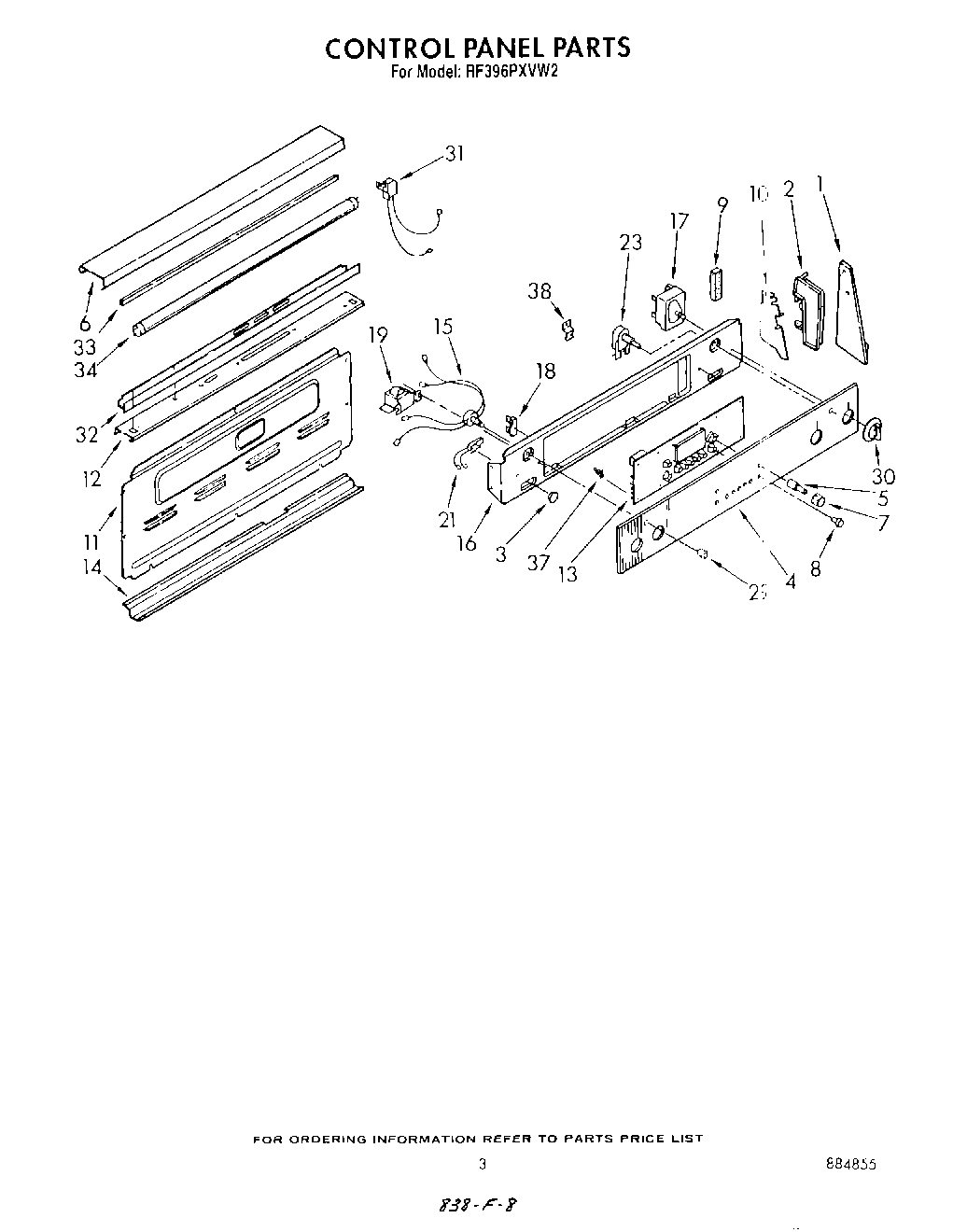

RF396PXVW2 03 – CONTROL PANEL

Products

Position	Product
1	End Trim L.H.
1	Washer
2	End Cap R.H.
2	End Cap L.H.
3	Lens (4)
4	Glass, Panel
5	Shaft, Bit Generator
6	Cover, Lamp
7	Knob, Bit Generator (Black)
8	WPL 313958
9	Seal, Foam (4)
10	Shield, Glass (2)
11	Harness-Conduit Asm.
12	WP313808 Whirlpool Screw
12	Trim, Top
13	Control, Timer
14	Bottom Trim
14	Screw,
15	Switch, Fluorescent Light
16	Bracket, Control Panel
17	Adapter, Terminal
17	W10900107 Whirlpool Oven Surface Element Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	WP3196548 Whirlpool Thermal Fuse
19	Ballast
21	Light, Indicator (Locked)
21	Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
23	nut, 3/8 x 27
23	Switch, Oven Light
23	Lockwasher
29	Bezel Switch (1)
30	WP3149983 Whirlpool Knob
30	SCREW
31	Socket, Light R.H.
31	Socket, Light L.H.
32	Backguard, Lamp
33	Protector, Lamp
34	Lamp, Fluorescent
37	WPL 313087
38	WP965173 Whirlpool Dishwasher Screw
38	Support, Wedge
