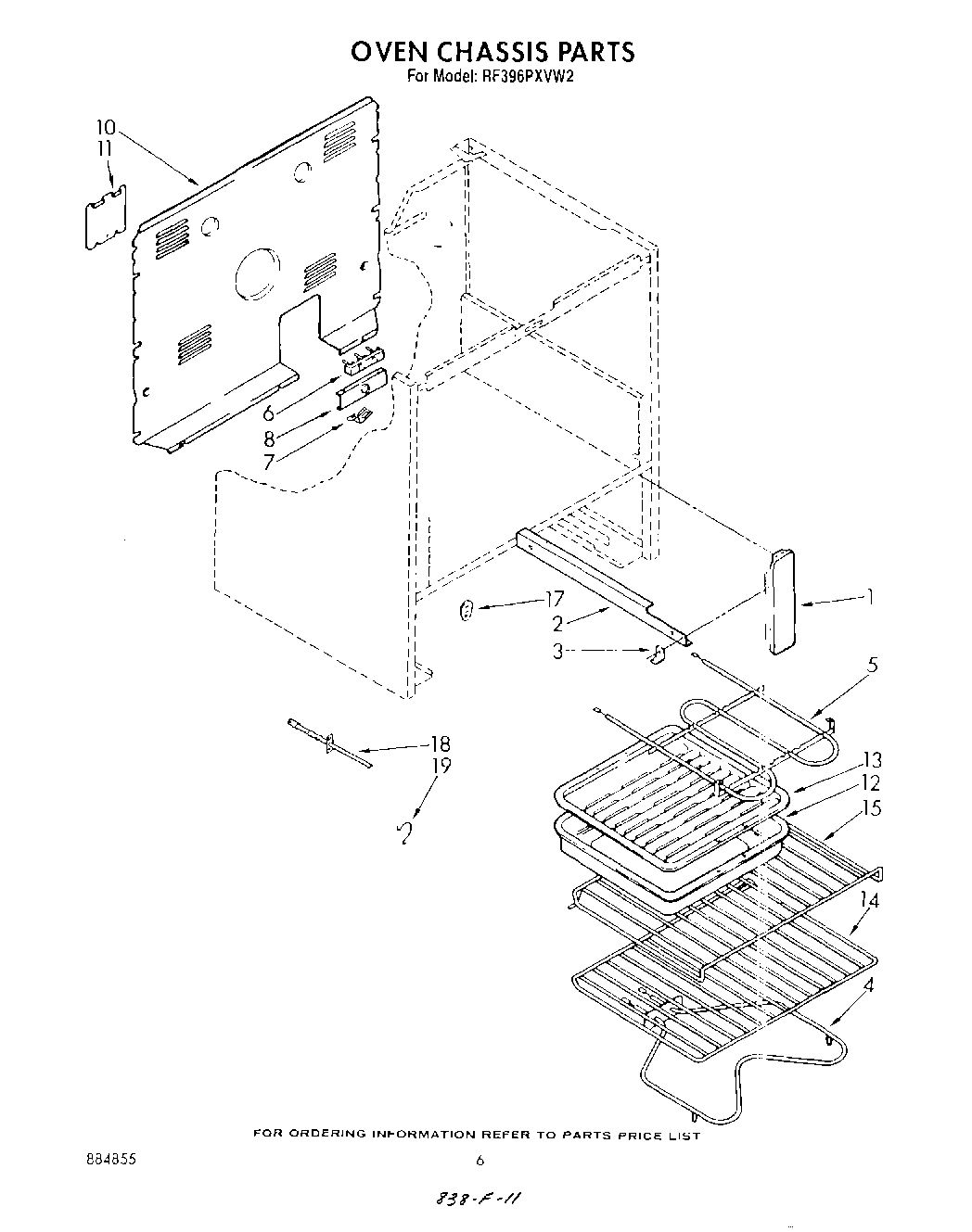

RF396PXVW2 05 – OVEN CHASSIS , LIT/OPTIONAL

RF396PXVW2 05 – OVEN CHASSIS , LIT/OPTIONAL

Written by

in

RF396PXVW2 05 – OVEN CHASSIS , LIT/OPTIONAL

Products

PositionProduct
Screw (2)
511873 Whirlpool Refrigerator Paint
1Bracket, Mounting (2)
2Rail L.H. (Includes Illus. 3)
2Rail R.H. (Includes Illus. 3)
3Glide, Front (2)
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6WP112432 Whirlpool Nut Assembly
6WP8203546 Whirlpool Terminal Block
6Screw, (2) 10-16 x 1
7Clip, Ground Wire
7WPL 308498
8Bracket, Service
10Cover, Rear
11Cover, Service
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
15WPL 308172
17WPL 311982
17Screw, 10A x 1/2 (2) (Black)
18SCREW
18Sensor, Heat
19Wire (14 Ga. 150 c Green)
19Wire (14 Ga. 150 c Brown)
19Grease
19242831 Whirlpool Oven Wire
19Wire (14 Ga. 150 c Blue)
19Wire (14 Ga. 150 c Orange)
19Wire (14 Ga. 150 c Yellow)
19Wire (12 Ga. 150 c Black)
1918 Ga. 80~c Rating (Red)
19Wire (14 Ga. 200 c Brown)
191
19Enamel, Coffee (1 Qt. Uncut)
19350930 Whirlpool White Spray Paint
19Leveler (Thinner) (2oz.)
198212471 Whirlpool Oven Paint
1916515 Whirlpool Clip
19Platinum (Uncut)
19Enamal, Toast (1 Qt. Uncut)
19Paint, Spray (13 Oz.) (Platinum)
19Toast
19Golden Harvest (Uncut)
19Golden Harvest
1972113 Whirlpool Touch-Up Paint
1972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19Almond (Uncut)
19WP72107 Whirlpool Touchup
19799344 Whirlpool Refrigerator Paint
1972017 Whirlpool Appliance Touch-Up Paint White
19WPL 72112
19350942 Whirlpool Spray Paint
19Wire, 25“ Roll (White 14 GA.)
19W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
19Paint, Spray 13 Oz. (Avocado)
19paint, spray 13 oz. (coffee)
19Paint, Touch-Up 1/2 Oz. (Coffee)
1972109 Whirlpool Dacor Avocado Touch-Up Paint
19285006 Whirlpool Spray
19Wire, 25` Roll (Red 14 Ga.)
19Wire, 25` Roll (Black 14 Ga.)
19FOIL, ALUMINUM OVEN (18“ X 25 )
19WPW10208653 Whirlpool Insulation
19WPL 799832
19350956 Whirlpool Spray Assembly
