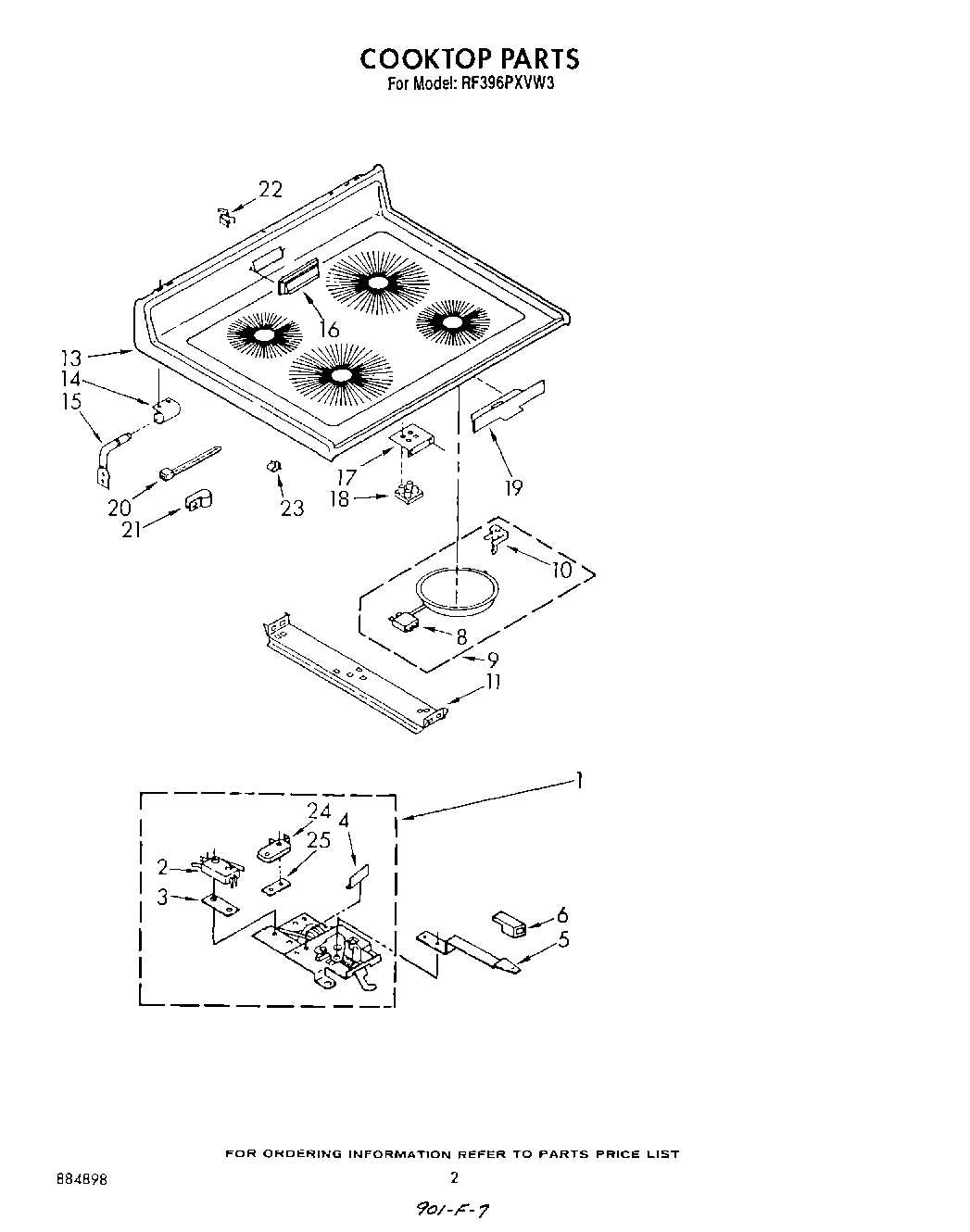

RF396PXVW3 02 – COOK TOP

Products

Position	Product
	List, Repair Parts
	Instructions, Installation
	Guide, Use And Care
	WPL LIT3149507
	Tech Sheet
1	Latch Assembly (Pyro)
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Screw
5	Handle, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
8	Limiter, Temp. (180 MM – LR)
8	Limiter, Temp. (250 mm (LF))
8	Limiter, Temp. (200 MM – RF)
8	Limiter Temp. (8“ – RR)
9	Element, Surface (Includes No. 1, No. 3) (180 MM – LR)
9	WP8185663 Whirlpool Surface Element
9	Element, Surface (Includes No. 1, No. 3) (200 MM – RF)
9	Element, Surface (Includes No. 1, No. 3) (230 MM – RR)
10	WP486754 Whirlpool Compactor Screw
10	Spring, Locator
11	Bracket, (2) Element Support
13	Cooktop (White)
13	cooktop (almond)
14	Bracket, Cooktop (2)
15	SCREW
15	Pin, Cooktop (2)
16	cover, vent (almond)
16	Cover, Vent (White)
17	Bracket, Light
18	Light, Indicator
19	Shield, Probe
20	Cable Tie
21	WP308605 Whirlpool Refrigerator Clamp
21	Screw (2)
22	Clip, Vent Cover
23	Clip
24	Switch, Lock
25	WPL 3147864
