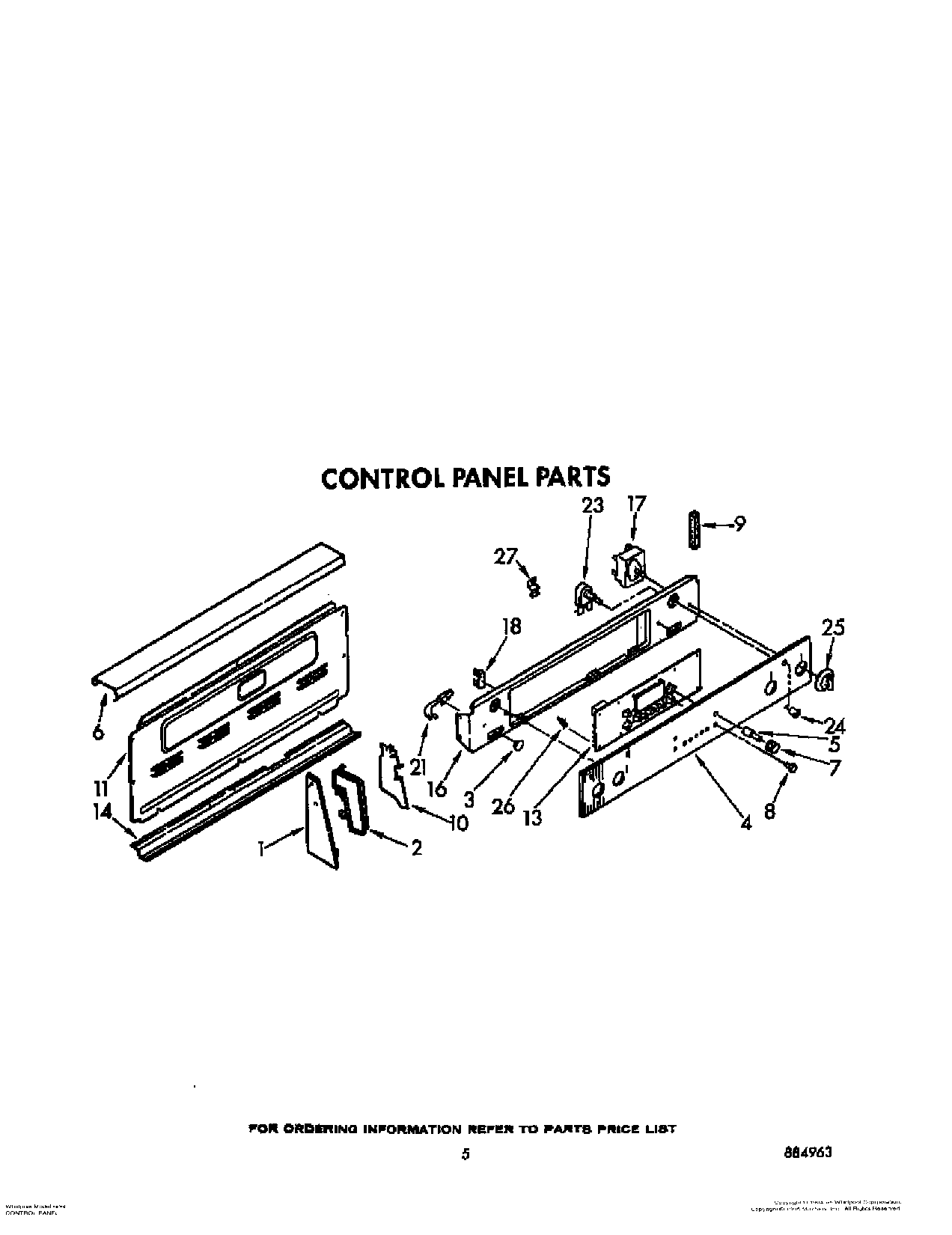

RF396PXXB1 05 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32x1``
1	Screw 10-32x7/16``
2	End Cap L.H.
2	End Cap R.H.
3	Lens (4)
4	Glass, Panel
5	Shaft, Bit Generator
6	Top Trim, Black
7	Knob, Bit Generator (Black)
8	WPL 313958
9	Seal, Foam (4)
10	Shield, Glass (2)
11	Harness-Conduit Asm.
13	Control, Timer
14	Screw,
14	Bottom Trim
16	Bracket, Control Panel
17	W10900107 Whirlpool Oven Surface Element Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	WP3196548 Whirlpool Thermal Fuse
21	Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
23	Lockwasher
23	Switch, Oven Light
24	Bezel Switch (1)
25	SCREW
25	WP3149983 Whirlpool Knob
26	WPL 313087
27	WP965173 Whirlpool Dishwasher Screw
27	Support, Wedge
