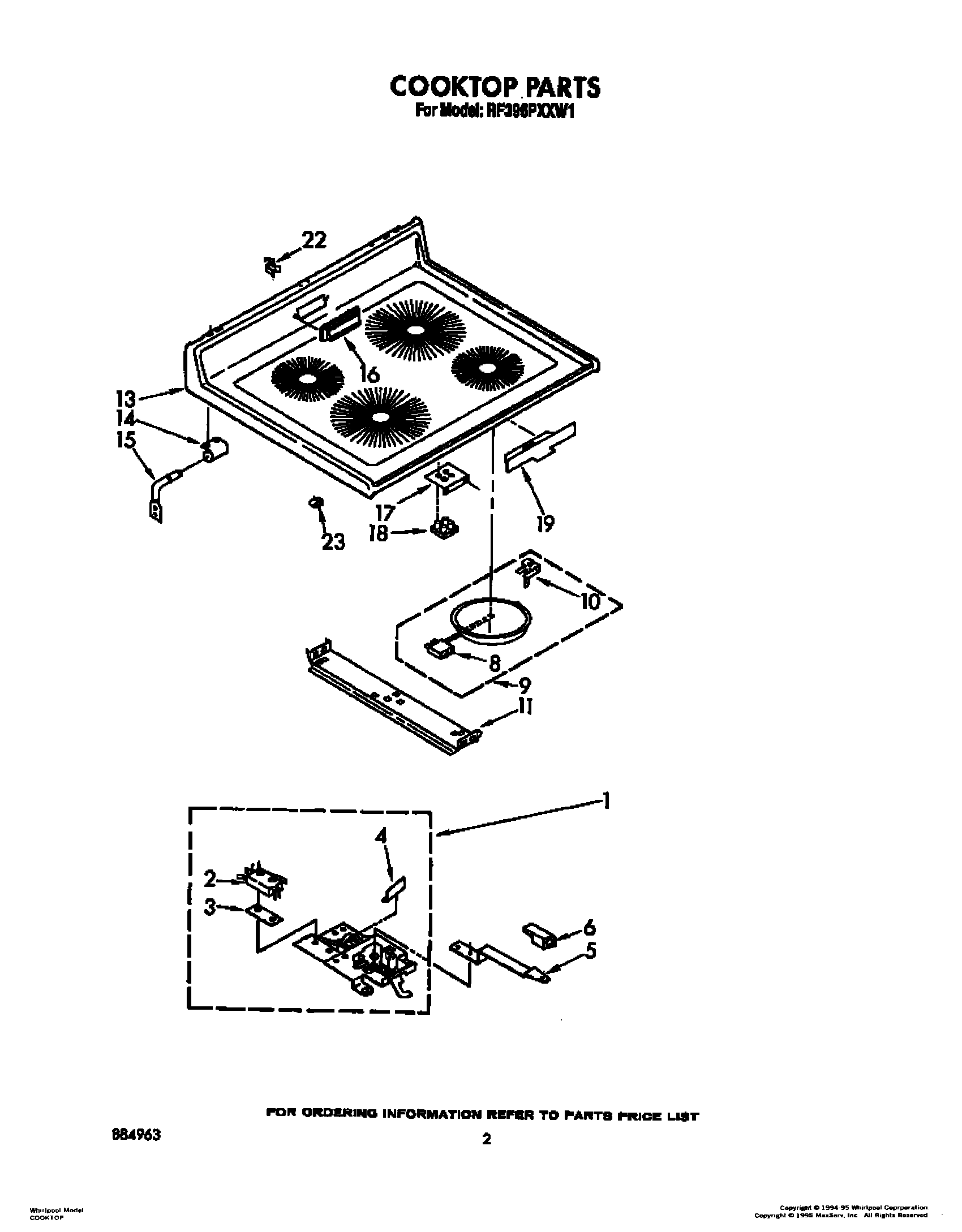

RF396PXXN1 02 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3149507
	WPL LIT3147395
	Tech Sheet
	Guide, Use And Care
	List, Repair Parts
1	Latch Assembly
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Screw
5	Handle, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
8	Limiter Temp. (8“ – RR)
8	Limiter, Temp. (200 MM – RF)
8	Limiter, Temp. (180 MM – LR)
8	Limiter, Temp. (250 mm (LF))
9	Element, Surface (Includes No. 1, No. 3) (230 MM – RR)
9	Element, Surface (Includes No. 1, No. 3) (180 MM – LR)
9	Element, Surface (Includes No. 1, No. 3) (200 MM – RF)
9	WP8185663 Whirlpool Surface Element
10	WP486754 Whirlpool Compactor Screw
10	Spring, Locator
11	Bracket, (2) Element Support
13	Cooktop (White)
13	Cooktop (Black)
13	cooktop (almond)
14	Bracket, Cooktop (2)
15	Pin, Cooktop (2)
15	SCREW
16	cover, vent (almond)
16	Cover, Vent (Black)
16	Cover, Vent (White)
17	Screw (2)
17	Bracket, Light
18	Light, Indicator
19	Shield, Probe
22	Clip, Vent Cover
23	Clip
