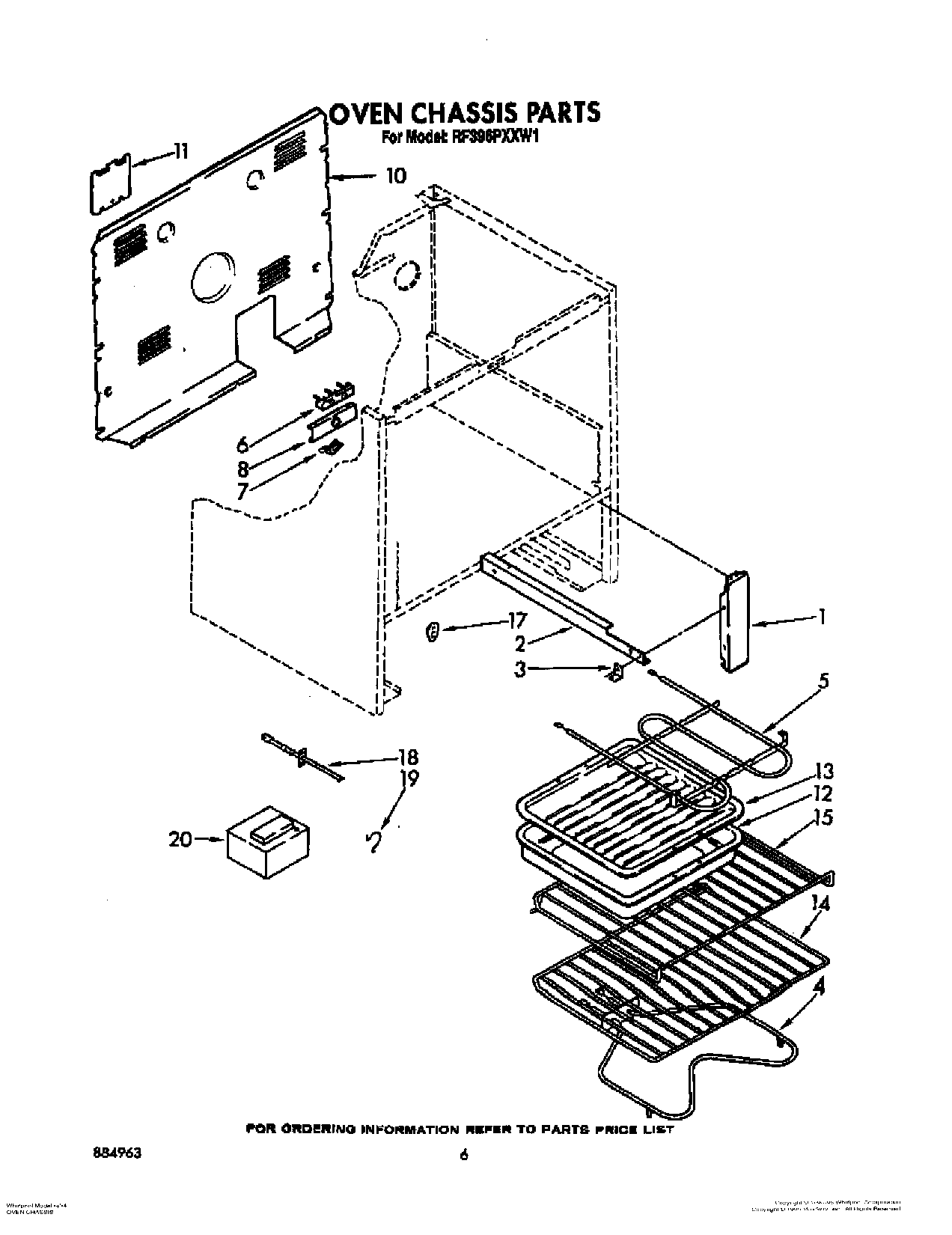

RF396PXXW1 06 – OVEN CHASSIS, OPTIONAL

RF396PXXW1 06 – OVEN CHASSIS, OPTIONAL

Written by

in

RF396PXXW1 06 – OVEN CHASSIS, OPTIONAL

Products

Position	Product
	511873 Whirlpool Refrigerator Paint
	Screw (2)
1	Bracket, Mounting (2)
2	Screw, 10A x 1/2 (2) (Black)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	WPL 311982
18	Sensor, Heat
18	SCREW
19	16515 Whirlpool Clip
20	Enamel, Coffee (1 Qt. Uncut)
20	Wire (14 Ga. 150 c Green)
20	Block, Balance
20	340184 Whirlpool Screw
20	285006 Whirlpool Spray
20	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
20	Grease
20	Wire (14 Ga. 150 c Orange)
20	8212471 Whirlpool Oven Paint
20	Wire (14 Ga. 150 c Yellow)
20	Wire (12 Ga. 150 c Black)
20	18 Ga. 80~c Rating (Red)
20	Leveler (Thinner) (2oz.)
20	Wire (14 Ga. 200 c Brown)
20	1
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	Platinum (Uncut)
20	Enamal, Toast (1 Qt. Uncut)
20	Paint, Spray (13 Oz.) (Platinum)
20	Toast
20	Golden Harvest (Uncut)
20	Golden Harvest
20	72113 Whirlpool Touch-Up Paint
20	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
20	Almond (Uncut)
20	WP72107 Whirlpool Touchup
20	799344 Whirlpool Refrigerator Paint
20	72017 Whirlpool Appliance Touch-Up Paint White
20	WPL 72112
20	350942 Whirlpool Spray Paint
20	WPL 799832
20	242831 Whirlpool Oven Wire
20	350930 Whirlpool White Spray Paint
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	Paint, Spray 13 Oz. (Avocado)
20	paint, spray 13 oz. (coffee)
20	Paint, Touch-Up 1/2 Oz. (Coffee)
20	72109 Whirlpool Dacor Avocado Touch-Up Paint
20	Wire, 25“ Roll (White 14 GA.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	FOIL, ALUMINUM OVEN (18“ X 25 )
20	WPW10208653 Whirlpool Insulation
20	350956 Whirlpool Spray Assembly
