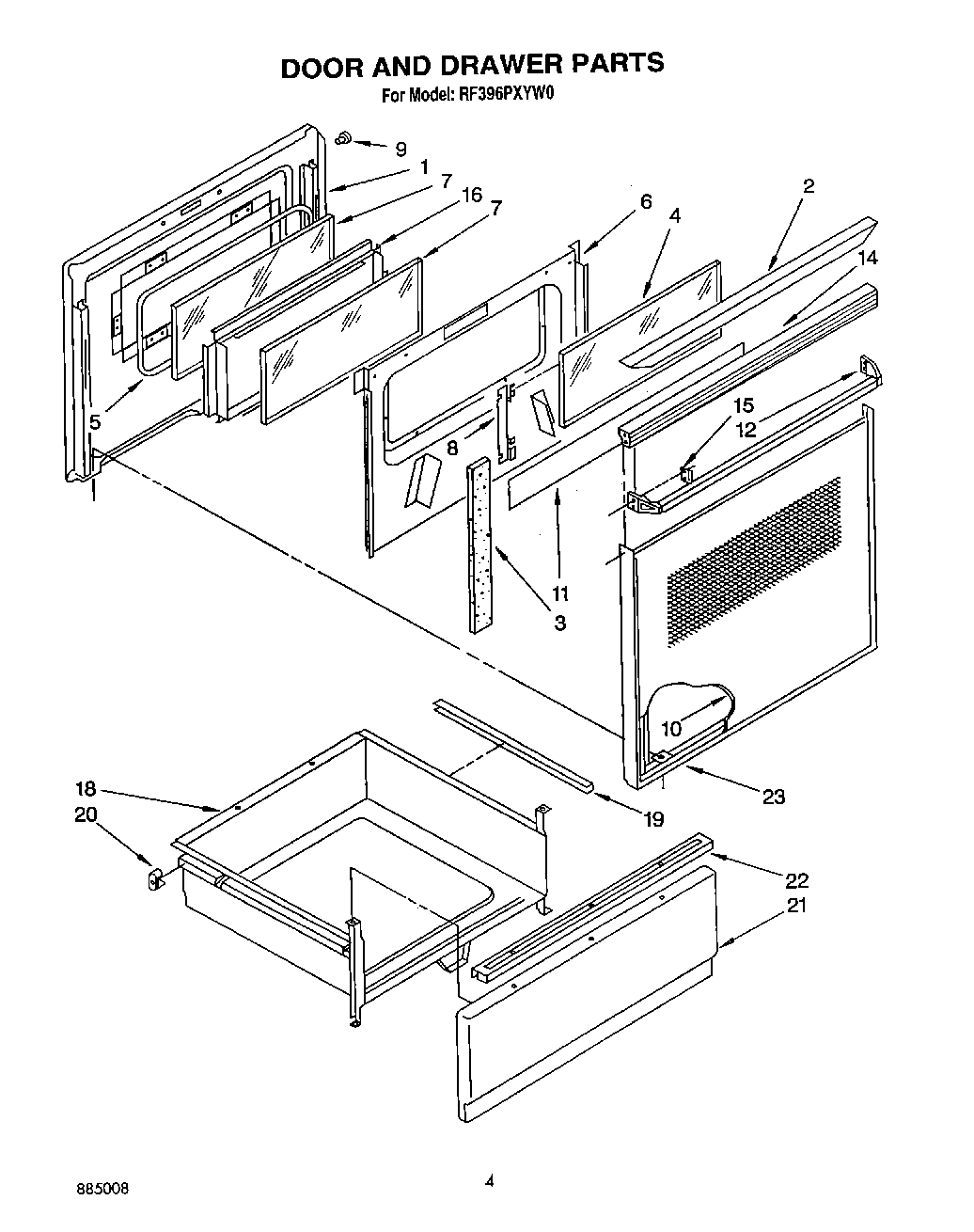

RF396PXYB0 04 – DOOR AND DRAWER

Products

Position	Product
1	Screw
1	Liner, Door
2	Cap, Top
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
10	Glass, Panel (White)
11	Foil, Door
12	Handle, Door (White)
12	Handle, Oven Door
14	Top, Door (White Model)
14	Top, Door (Black Model)
14	WP308685 Whirlpool Microwave Screw
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
21	Panel Drawer (Black)
21	WP488787 Whirlpool Refrigerator Screw
21	Panel Drawer (White)
21	Panel, Drawer (Almond)
22	WP488627 Whirlpool Refrigerator Screw
22	Handle, Drawer
23	Frame, Door
23	Screw, (2) 10-16 x 1/2
23	WP355515 Whirlpool Screw
