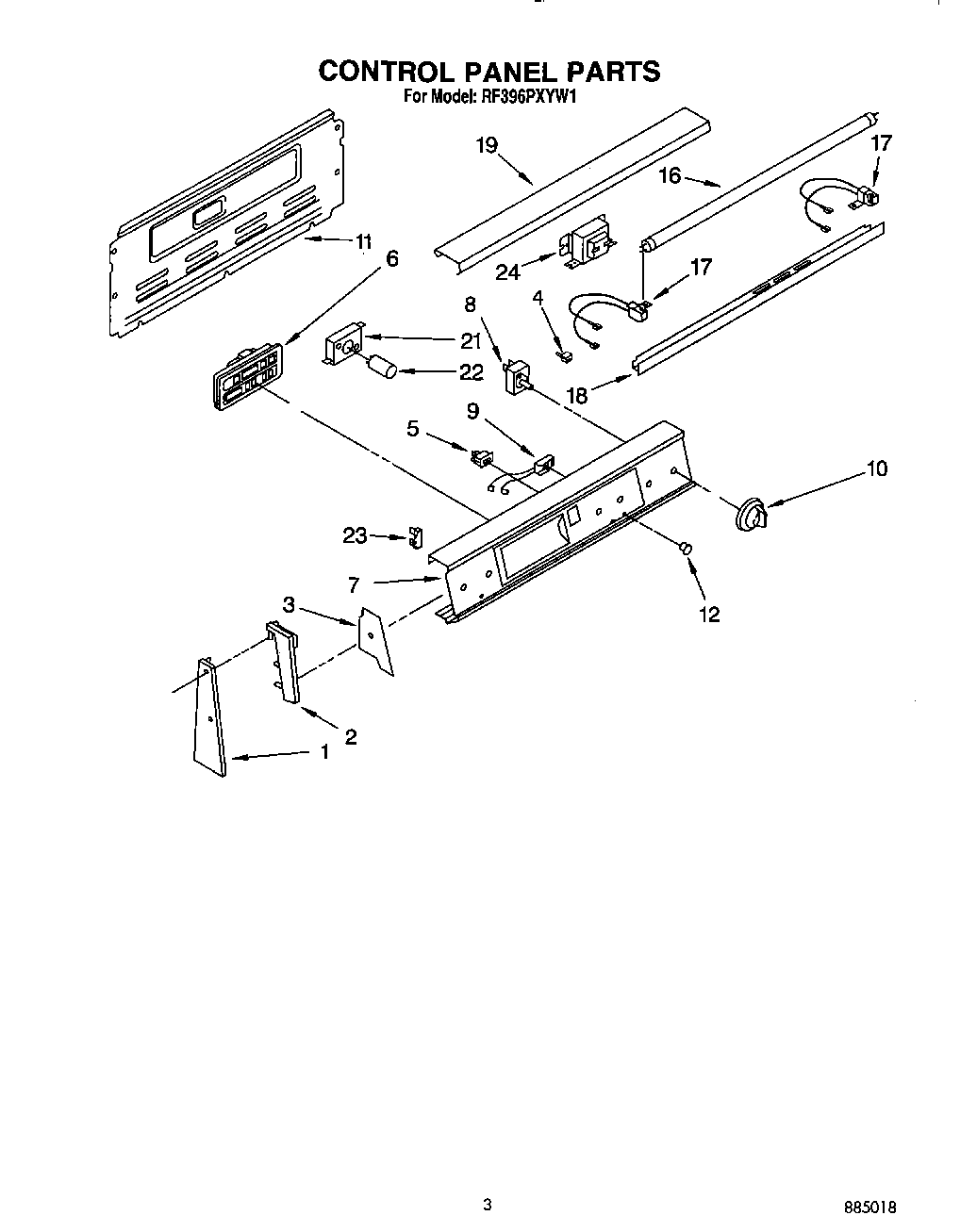

RF396PXYB1 03 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32×1“
1	Screw 10-32×7/16“
2	End Cap L.H.
2	Screw,
2	End Cap R.H.
3	Shield (2)
4	Adapter, Terminal
5	Switch, Rocker
5	Switch, Rocker (White)
6	Control, Electronic (Black)
6	Control, Electronic (White)
6	WP965173 Whirlpool Dishwasher Screw
7	Panel, Control (Designer White)
7	Panel, Control
8	WP3148952 Whirlpool Oven Infinite Switch
8	WP3148955 Whirlpool Infinite Switch
8	WP486579 Whirlpool Air Conditioner Screw
9	Light, Indicator (Surface Unit (2))
10	Knob, (4) Infinite Switch (Designer Mdl)
10	Knob, (4) Infinite Switch (White/Almond/Gold)
11	SCREW
11	Harness-Conduit Asm.
12	Lens, Amber
16	Lamp, Fluorescent
17	Socket, Lamp (Light LH)
17	Socket, Lamp (Light RH)
17	WP313808 Whirlpool Screw
18	Backguard, Lamp
19	Cover, Lamp (Designer White)
19	Cover, Lamp
21	Socket, Flourscent
22	Starter, Lamp
23	WP3196548 Whirlpool Thermal Fuse
24	Ballast
