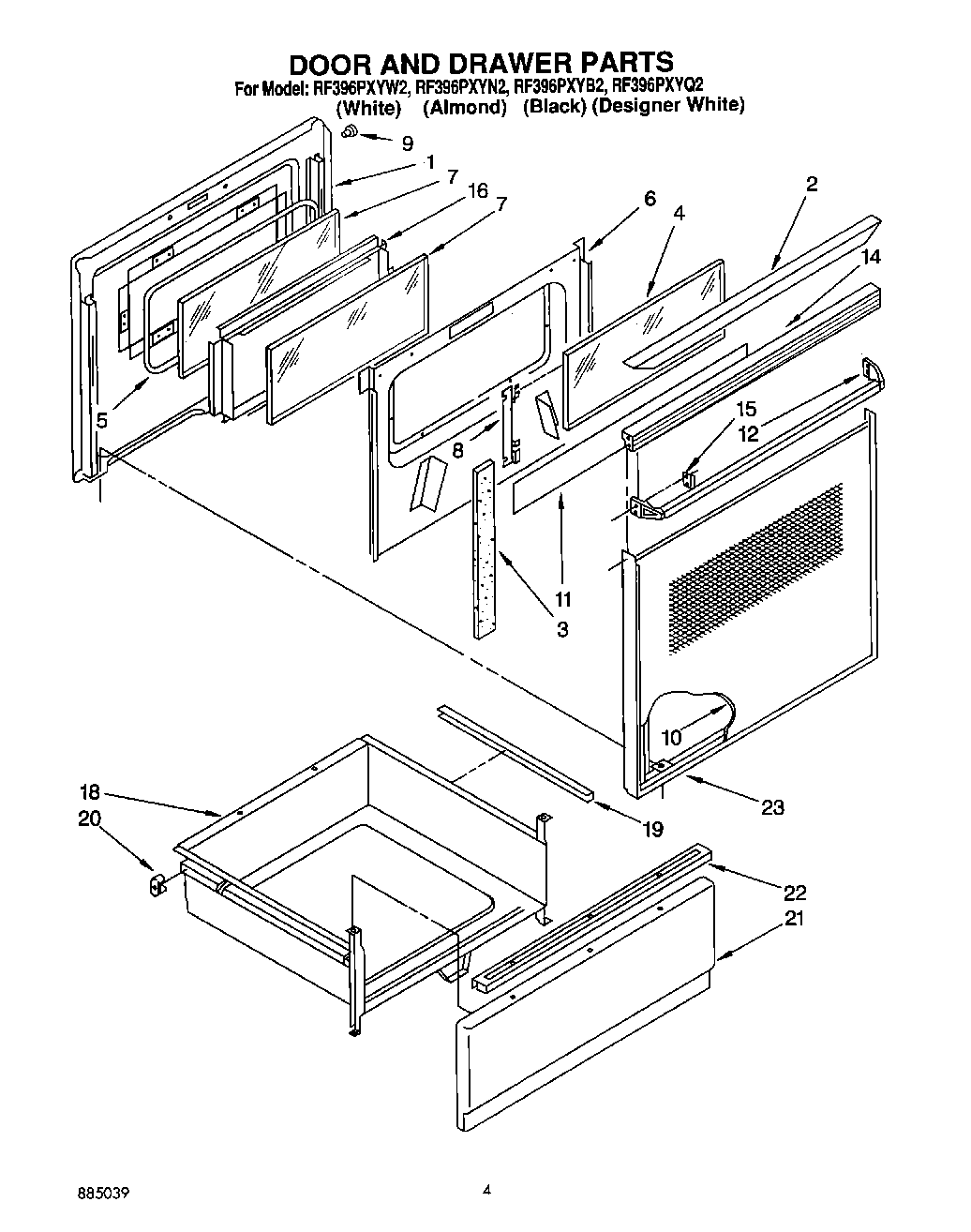

RF396PXYB2 03 – DOOR AND DRAWER

Products

Position	Product
1	Screw
1	Liner, Door
2	Cap, Top
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Door (White)
12	Handle, Oven Door
14	WP308685 Whirlpool Microwave Screw
14	Screw, 10A x 1/2 (2) (Black)
14	Top, Door (White Model)
14	Top, Door (Black Model)
15	Clip, Mtg (2)
16	Screw
16	Frame, Inner
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
21	Panel Drawer (White)
21	Panel, Drawer (Almond)
21	Panel Drawer (Black)
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
23	Screw, (2) 10-16 x 1/2
23	Frame, Door
23	WP355515 Whirlpool Screw
