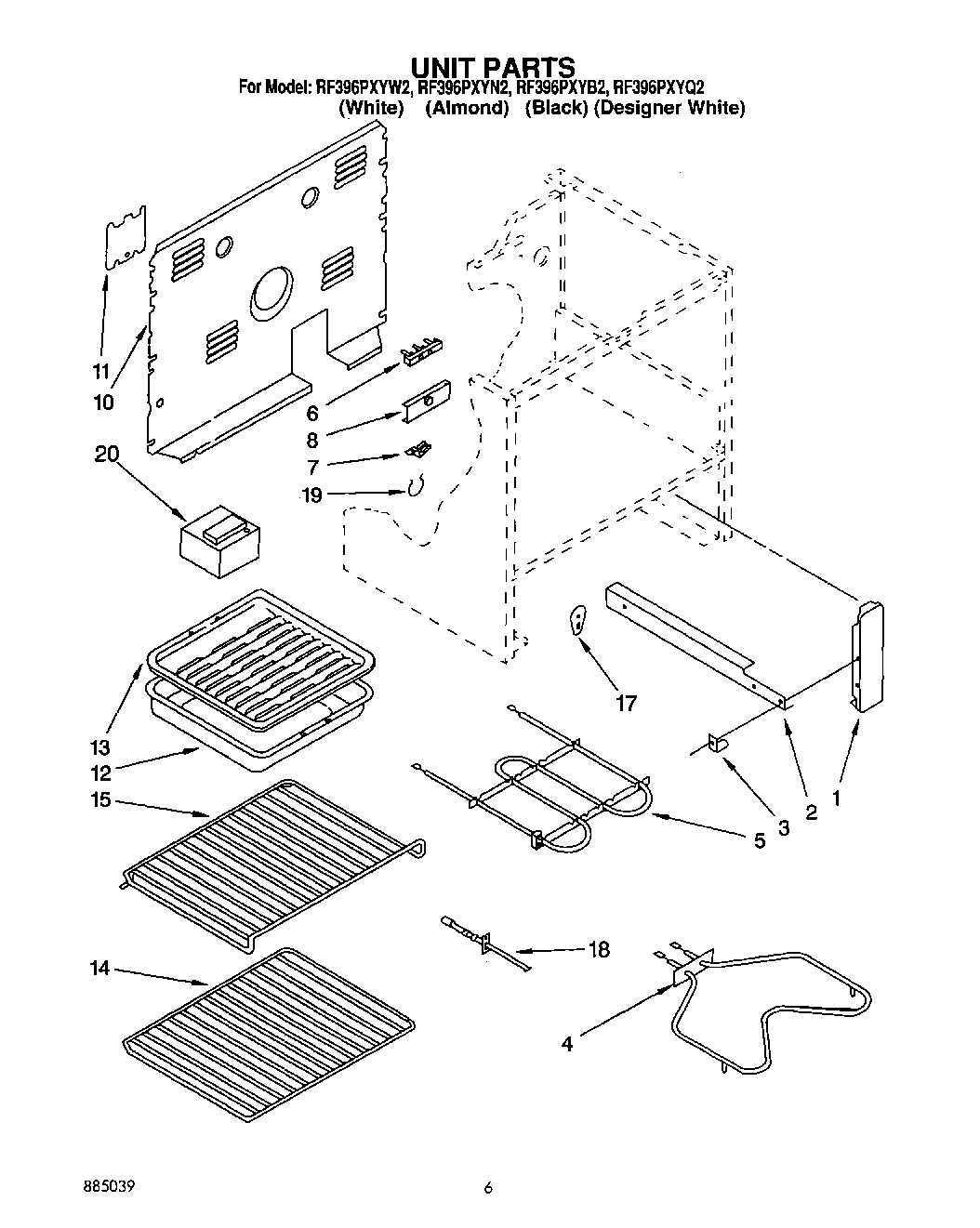

RF396PXYB2 04 – UNIT

Products

Position	Product
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	Rail L.H. (Includes Illus. 3)
2	Screw, 10A x 1/2 (2) (Black)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	Screw, (2) 10-16 x 1
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	WPL 311982
17	Screw (2)
18	SCREW
18	Sensor, Heat
19	16515 Whirlpool Clip
20	340184 Whirlpool Screw
20	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
20	WA906B Whirlpool Cooktop Glass Scraper
20	Block, Balance
