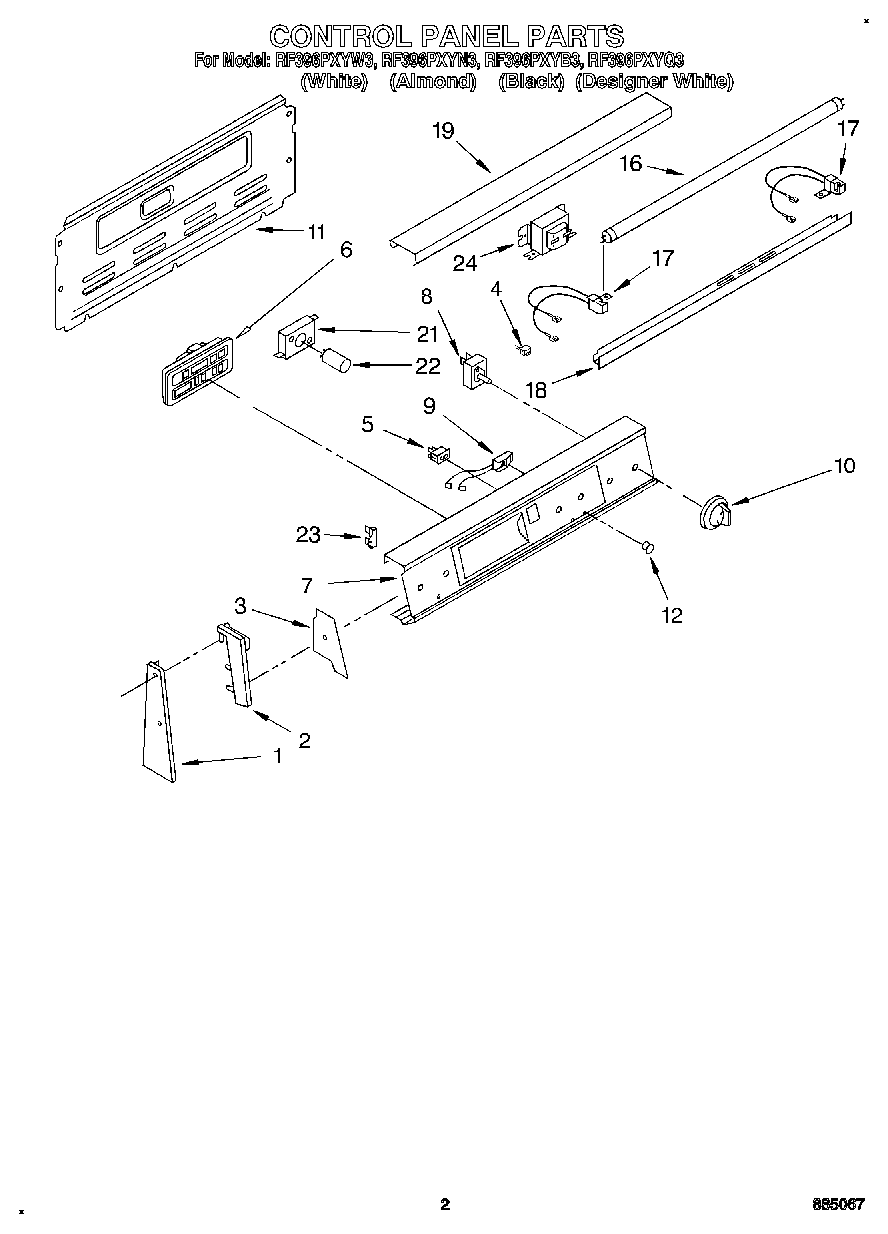

RF396PXYB3 02 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32x1``
1	Screw 10-32x7/16``
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
3	Shield (2)
4	Adapter, Terminal
5	Switch, Rocker (White)
5	Switch, Rocker
6	Control, Electronic (White)
6	Control, Electronic (Black)
6	WP965173 Whirlpool Dishwasher Screw
7	Panel, Control (Designer White)
7	Panel, Control
8	WP3148955 Whirlpool Infinite Switch
8	Screw, 8-32 x 3/16 (2)
8	WP3148952 Whirlpool Oven Infinite Switch
9	Light, Indicator (Surface Unit (2))
10	Knob, (4) Infinite Switch (White/Almond/Gold)
10	Knob, (4) Infinite Switch (Designer Mdl)
11	Rear Cover Contr
11	SCREW
12	Lens, Amber
16	Lamp, Fluorescent
17	Screw, 6-32 x 9/32 (4)
17	Socket, Lamp (Light LH)
17	Socket, Lamp (Light RH)
18	Backguard, Lamp
19	Cover, Lamp (Designer White)
19	Cover, Lamp
21	Socket, Flourscent
22	Starter, Lamp
23	Screw (2)
23	WP3196548 Whirlpool Thermal Fuse
24	Ballast
