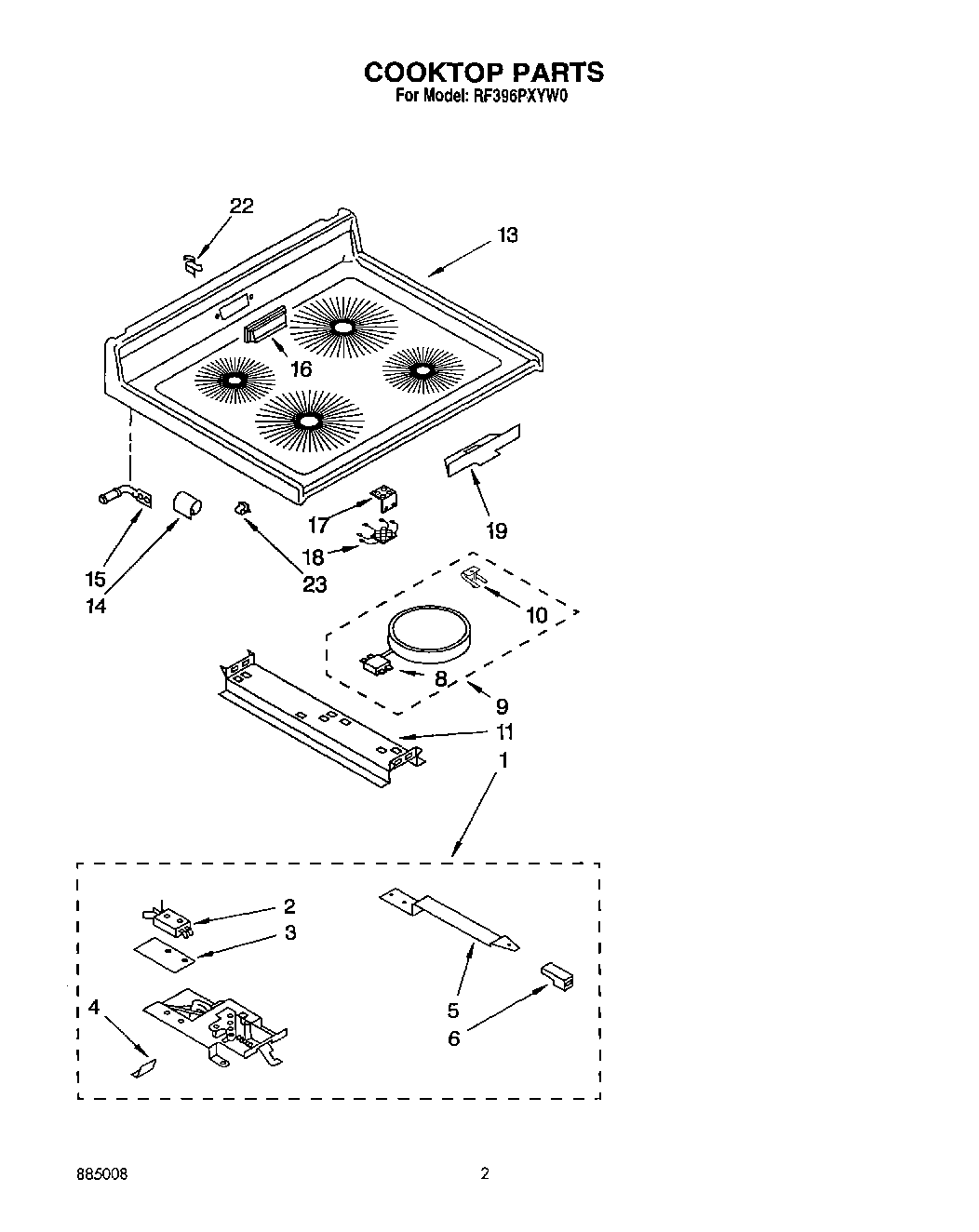

RF396PXYN0 02 – COOKTOP

Products

Position	Product
1	Latch Asm Complete W/Wire Harness (White/Almond)
1	Latch Asm Complete W/Wire Harness (Designer White)
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Handle, Latch
5	Screw
5	Handle, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
8	Limiter, Temperature (Use W/3183648 Element)
8	Limiter, Temperature (Use W/3183649 Element)
8	Limiter Temp. (7“ – RF)
8	Limiter, Temp. (6“ L.R.)
9	Element, Surface (Includes No.1) (200 MM – (2))
9	Element, Surface (Includes No.8) (180 MM – LR)
9	WP8185663 Whirlpool Surface Element
9	Element, Surface (Includes No.1) (230 MM – (2))
10	Spring, Locator
10	WP486754 Whirlpool Compactor Screw
11	Bracket, (2) Element Support
13	Cooktop (White)
13	Cooktop (Black)
13	Cooktop (Designer White)
13	Cooktop (Almond)
14	Bracket, Cooktop (2)
15	SCREW
15	Pin, Cooktop (2)
16	Cover, Vent (White)
16	cover, vent (almond)
16	Cover, Vent (Black)
17	Screw (2)
17	Bracket, Light
18	Light, Indicator
19	Shield, Probe
22	Clip, Vent Cover
23	Clip
