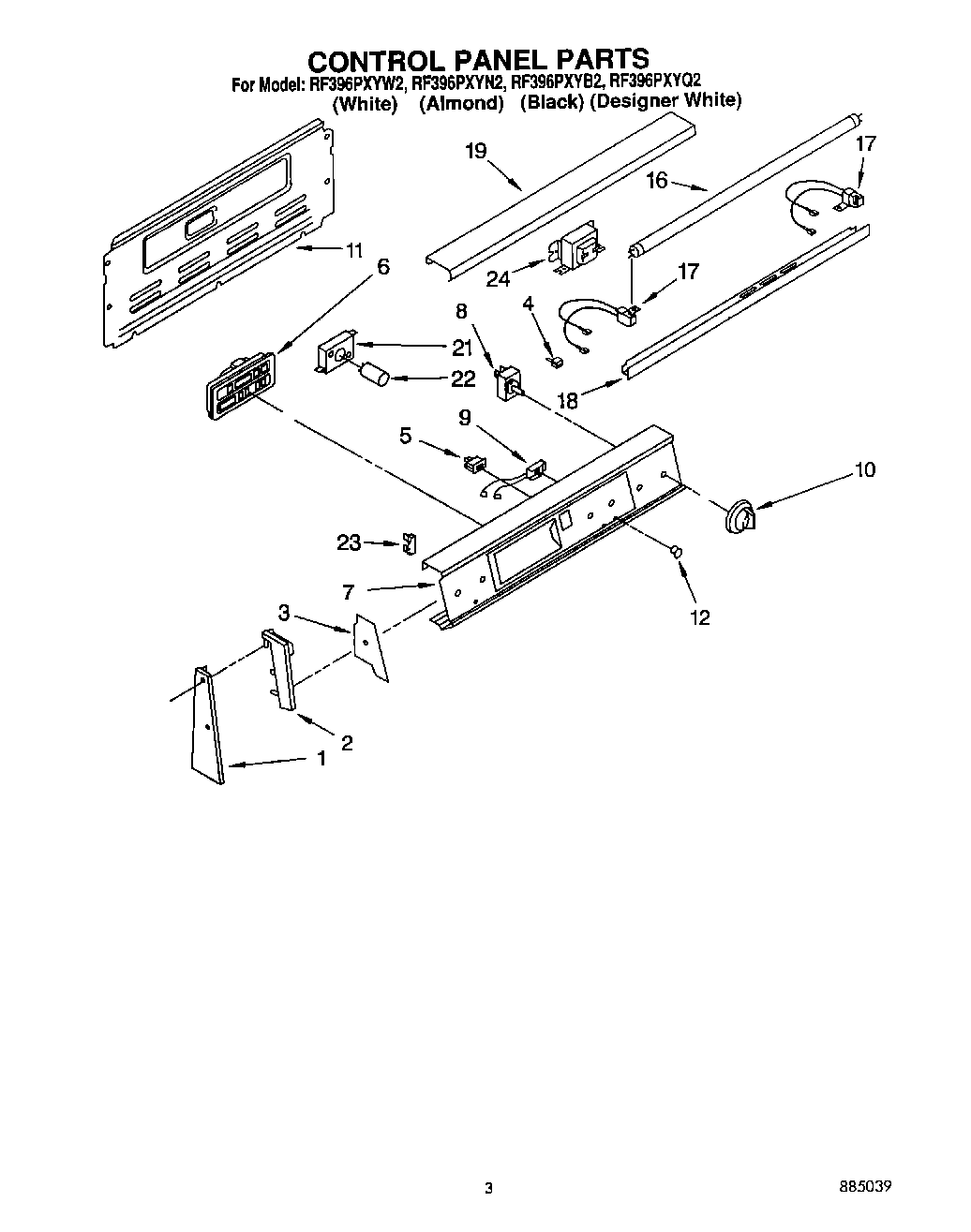

RF396PXYN2 02 – CONTROL PANELadmin2025-04-26T12:48:12+00:00RF396PXYN2 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Screw 10-32x1`` |
| 1 | Screw 10-32x7/16`` |
| 2 | End Cap L.H. |
| 2 | Screw, |
| 2 | End Cap R.H. |
| 3 | Shield (2) |
| 4 | Adapter, Terminal |
| 5 | Switch, Rocker (White) |
| 5 | Switch, Rocker |
| 6 | Control, Electronic (Black) |
| 6 | Control, Electronic (White) |
| 6 | WP965173 Whirlpool Dishwasher Screw |
| 7 | Panel, Control (Designer White) |
| 7 | Panel, Control |
| 8 | WP3148952 Whirlpool Oven Infinite Switch |
| 8 | WP3148955 Whirlpool Infinite Switch |
| 8 | WP486579 Whirlpool Air Conditioner Screw |
| 9 | Light, Indicator (Surface Unit (2)) |
| 10 | Knob, (4) Infinite Switch (White/Almond/Gold) |
| 10 | Knob, (4) Infinite Switch (Designer Mdl) |
| 11 | SCREW |
| 11 | Harness-Conduit Asm. |
| 12 | Lens, Amber |
| 16 | Lamp, Fluorescent |
| 17 | WP313808 Whirlpool Screw |
| 17 | Socket, Lamp (Light LH) |
| 17 | Socket, Lamp (Light RH) |
| 18 | Backguard, Lamp |
| 19 | Cover, Lamp |
| 19 | Cover, Lamp (Designer White) |
| 21 | Socket, Flourscent |
| 22 | Starter, Lamp |
| 23 | Screw (2) |
| 23 | WP3196548 Whirlpool Thermal Fuse |
| 24 | Ballast |
